Inclined Vibrating Screen

Request a Quote

View All: http://crushing-grinding.com/3-1-inclined-vibrating-screen.html

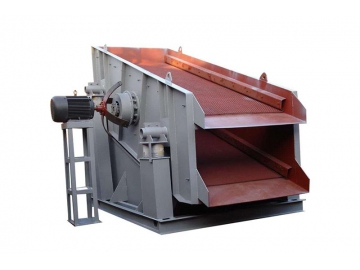

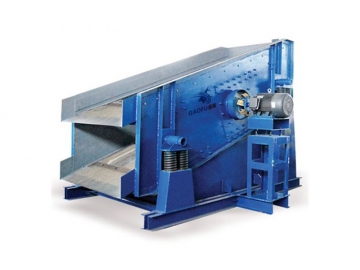

Yate inclined vibrating screen is a new type of vibrating screen with inclined vibration, multi-layer and high efficiency. The compact design of the inclined vibrating screen makes this equipment function properly. It can be used to screen wet, dry, coarse or fine particles, which makes it more suitable to a wider range of applications, extensively used in mining, construction, transportation, energy and chemical industries, etc.

Features

The inclined vibrating screen adopts spring steel woven screen mesh, thus providing long service life of this machine;
The inclined vibrating screen also applies rubber isolation spring, which ensures lower vibration noise and steady operation;
Simplified accessibility and easy maintenance;
High screening efficiency;

Technical data

Model	Screen decks			Particle dimension (mm)	Capacity	Specification		Motor	Weight
Model	Deck	Screen area (m²)	Sieve size (mm)	(mm)	(Vh)	Vibration (HJ)	Amplitude (mm)	Power (kW)	(t)
2YA1236	2	4.3	6-50	w200	72-245	14.08	4.75	11	5.3
2YA1548	2	7.2	6-50	W200	125-410	14.08	4.75	15	6.4
2YAH1548	2	7.2	30-150 6-50	W400	320-780	12.58	5.5	15	7.4
2YA1842	2	7.6	6-50	w200	135-430	14.08	4.75	15	6.5
2YAH1842	2	7.6	30-150 6-50	W400	340-900	12.58	5.5	15	7
2YA2148	2	10	6-50	W200	175-570	12.47	475	22	10.5
2YAH2148	2	10	30-150 6-50	W400	445-1200	11.5	5.5	22	11.2
2YA2460	2	14.4	6-50	W200	250-810	12.47	4.75	30	13.6
2YAH2460	2	14.	30-150 6-50	< 400	645-1500	11.8	5.5	30	14.5
2YA2665	2	16.9	6-50	W200	100-1000	12.47	8-11	30	14.5
YA3073	1	22.3	5-100	W300	< 2040	11.8	6	30x2	24
