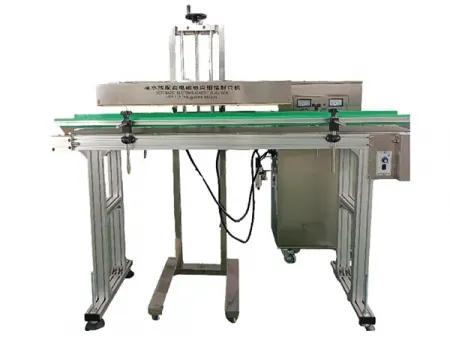

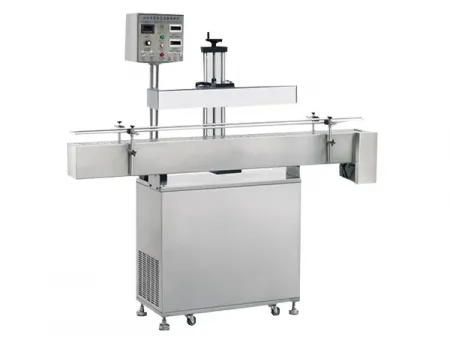

Induction Aluminum Foil Sealing Machine

Induction Aluminum Foil Sealing Machine
Induction Aluminum Foil Sealing Machine
Induction Aluminum Foil Sealing Machine
Request a Quote
Induction sealer for bonding foil seal to the mouth of bottle

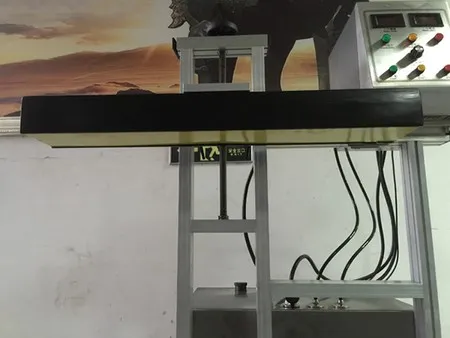

The induction aluminum foil sealing machine incorporates the latest induction heating control technology from Taiwan and advanced high-power IGBT modules, offering greater power. It features a track-type induction head, making it the preferred model for sealing ultra-thick caps, spout caps, and large caps. The electromagnetic induction aluminum foil sealing machines are available in water-cooled and air-cooled versions, with the primary difference being the cooling method. They are commonly used for high-quality airtight sealing of bottled products in pharmaceuticals, food, cosmetics, pesticides, chemicals, etc.

  • YX-IS1800
  • YX-IS3000

YX-IS1800 Foil Sealing Machine

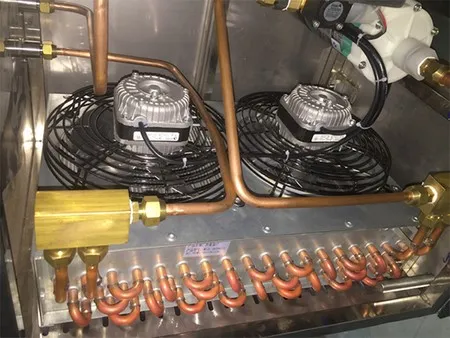

  • Cooling Method:Air cooled/water cooled
  • Sealing Speed:0-200 bottles per minute
  • Sealing Diameter:⌀15-75mm/⌀15-45mm /⌀30-60mm (optional)
  • Power:1800W
  • Voltage:AC 220V, 60/50Hz
  • Machine Dimensions (L×W×H):1450×410×1300mm
  • Machine Weight:68kg
  • Packaging Size:1600×450×1500mm

YX-IS3000 Foil Sealing Machine

  • Cooling Method:Water cooled
  • Sealing Speed:0-300 bottles per minute
  • Sealing Diameter:⌀15-60mm/⌀50-121mm
  • Power:3000W
  • Voltage:AC 220V, 60/50Hz
  • Machine Dimensions (L×W×H):1800×400×1330mm
  • Machine Weight:90kg
  • Packaging Size:1945×545×1575mm
Features

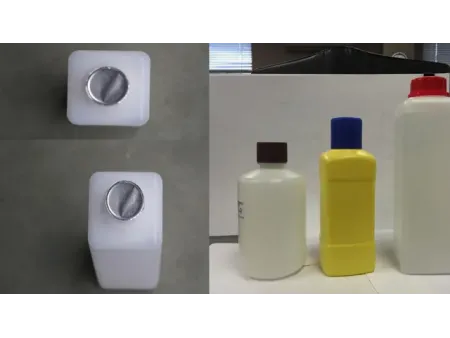

  • Non-contact heating, suitable for sealing plastic bottles, glass bottles, and various composite plastic tubes, compliant with GMP standards.
  • High sealing efficiency, up to 300 bottles per minute, easy to operate.
Working Principle

Under the influence of a high-frequency electromagnetic field, the aluminum foil generates a large eddy current, rapidly heating and melting the adhesive layer beneath the foil. This melts and bonds with the bottle's mouth, achieving a quick, non-contact airtight seal.
