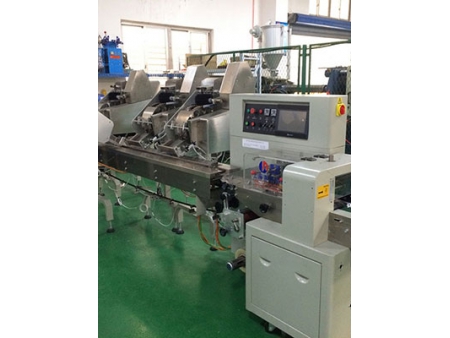

HP-250X Flow Pack Wrapping Machine
Samples
Model | HP-250X |
Name | Flow pack packaging machine |
Bag width | 30-110mm (max. width: 250mm) |
Bag length | 65-190mm 120-280mm |
Voltage | 220V, 50/60HZ |
Power | 2.4KW |
Film material | Heat seal film |
Weight | Approx. 500 kg |
Products contacting part | 304 stainless steel |
Dimensions (L×W×H) | 3770×670×1450 mm |
Application | Stationery industry |
|
Features
1. The flow pack wrapping machine is controlled by a double transducer and the bag length can be freely adjusted, with no test run and film waste. A lot of time and film is thus saved.
2. Parameters are easy to set on the human-computer interface.
3. Self-detection function ensures malfunctions and faults are clearly shown on the touchscreen.
4. With the combination of a photoelectric sensor and digital cutting system, the film sealing and cutting is of high accuracy.
5. The temperature is controlled by PID in order to suit different packaging materials.
6. The positioning system is sensitive and quick, with no film sticking or film waste.
7. The drive system has a compact structure and provides reliable performance and convenient maintenance.
8. Functional software is used for flow wrapper machine control, simplifying function adjustment and technic upgrade.
9. Discharging device can be chosen according to customer’s requirements. For example, the discharging can be performed depending on the pencil color.
