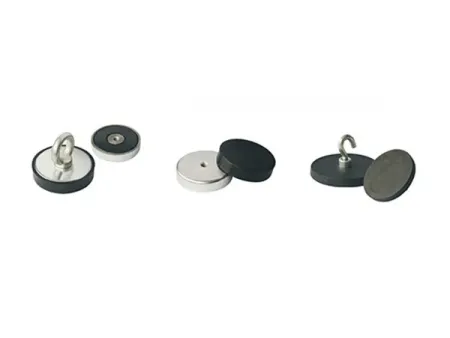

Pot Magnets

Request a Quote

View All: http://magnets-en.com/3-1-pot-magnets.html

Magnetic Assemblies

Used for mounting, holding and fastening components onto a steel surface

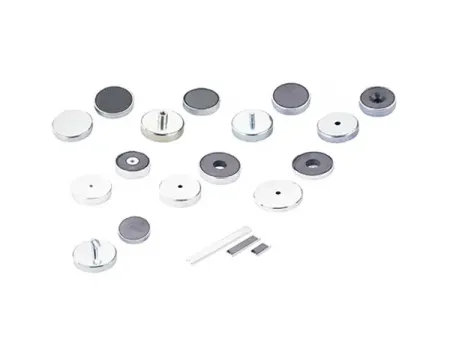

Pot magnets are versatile magnetic components used for securing, clamping, lifting, and positioning ferromagnetic objects. They are widely applied in industries such as engineering, construction, and automotive, as well as in offices, homes, and warehouses for organizational and fastening solutions. Their strong magnetic force, combined with a compact design, makes them ideal for applications requiring a secure but removable magnetic connection.

Specifications of Pot Magnets

Rare Earth Pot Magnet

Model	Dimensions (mm)		Weight (g)	Magnet force (N)
Model	D	H	Weight (g)	Magnet force (N)

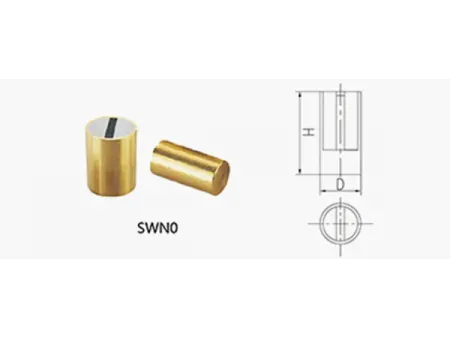

SWN0-6	6	20	4.5	10
SWN0-8	8	20	8	25
SWN0-10	10	20	12.5	45
SWN0-13	13	20	20	70
SWN0-16	16	20	32	150
SWN0-20	20	25	60	280
SWN0-25	25	35	135	450
SWN0-32	32	40	250	700

Model	Dimensions (mm)			Weight (g)	Magnet force (N)
Model	D	H	M	Weight (g)	Magnet force (N)

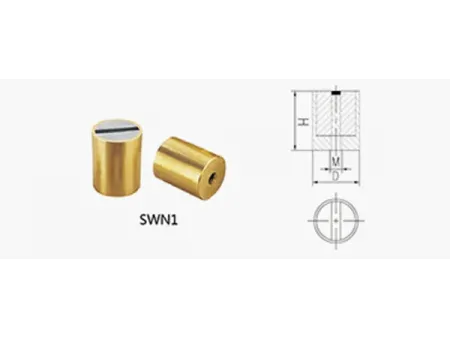

SWN1-6	6	20	3	4	10
SWN1-8	8	20	3	7	25
SWN1-10	10	20	4	12	45
SWN1-13	13	20	4	20	70
SWN1-15	15	20	4	27	140
SWN1-16	16	20	4	30	150
SWN1-20	20	25	4	60	280
SWN1-25	25	35	5	135	450
SWN1-32	32	40	6	240	700

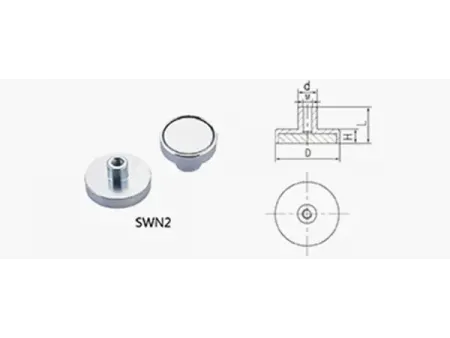

Model	Dimensions (mm)					Weight (g)	Magnet force (N)
Model	D	H	L	d	M	Weight (g)	Magnet force (N)
SWN2-6	6	6	11.5	6	3	2.5	5
SWN2-8	8	4.5	11.5	6	3	3	13
SWN2-10	10	4.5	11.5	6	3	4	25
SWN2-13	13	4.5	11.5	6	3	6	60
SWN2-16	15	4.5	11.5	8	4	8	95
SWN2-20	16	6	13	8	4	17	140
SWN2-25	25	7	14	8	4	28	200
SWN2-32	32	7	15.5	10	5	45	350
SWN2-40	40	8.5	15.5	10	6	100	500

Model	Dimensions (mm)		Weight (g)	Magnet force (N)
Model	D	H	Weight (g)	Magnet force (N)

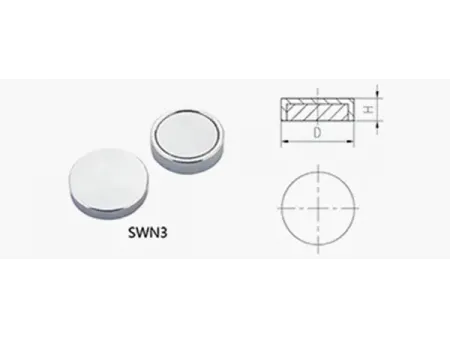

SWN3-6	6	4.5	1	5
SWN3-8	8	4.5	1.5	13
SWN3-10	10	4.5	2.5	25
SWN3-13	13	4.5	4.5	60
SWN3-16	16	4.5	6.5	95
SWN3-20	20	6	15	140
SWN3-25	25	7	22	200
SWN3-32	32	7	40	350
SWN3-40	40	8.5	80	500

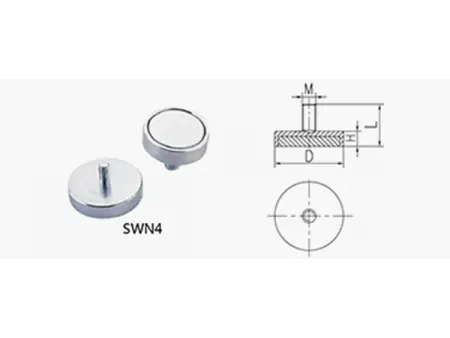

Model	Dimensions (mm)				Weight (g)	Magnet force (N)
Model	D	H	L	M	Weight (g)	Magnet force (N)
SWN4-10	10	4.5	12.5	4	3	25
SWN4-13	13	4.5	12.5	5	5	60
SWN4-16	16	4.5	12.5	6	7.5	95
SWN4-20	20	6	16	6	16	140
SWN4-25	25	7	17	6	25	200
SWN4-32	32	7	17	6	48	350
SWN4-40	40	8.8	20	6	82	500

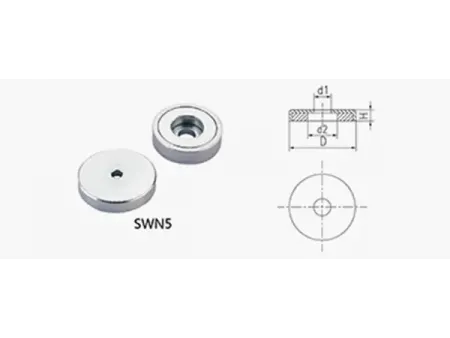

Model	Dimensions (mm)				Weight (g)	Magnet force (N)
Model	D	d1	d2	H	Weight (g)	Magnet force (N)
SWN5-16	16	3.1	6.6	4.5	5	50
SWN5-20	20	3.1	6.6	4.5	10	80
SWN5-25	25	6	11.5	7	20	100
SWN5-32	32	6	11.5	8	35	200
SWN5-36	36	5	10.5	7.1	60	250

Model	Dimensions (mm)				Weight (g)	Magnet force (N)
Model	D	H	d1	d2	Weight (g)	Magnet force (N)

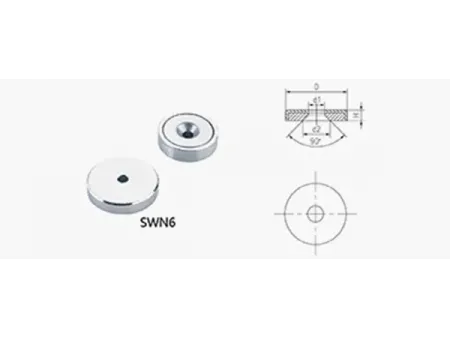

SWN6-16	16	4.5	3.5	6.6	5.7	75
SWN6-20	20	6	4.5	9	12.5	105
SWN6-25	25	7	4.5	9	25	160
SWN6-32	32	7	5.5	11	38.5	310

Model	Dimensions (mm)				Weight (g)	Magnet force (N)
Model	D	d	H	M	Weight (g)	Magnet force (N)

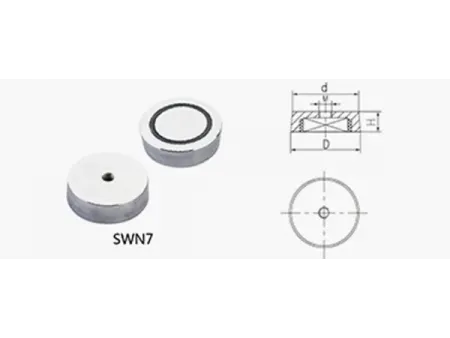

SWN7-48	48	46	14	8	170	560
SWN7-50	50	47.5	14.5	8	195	560

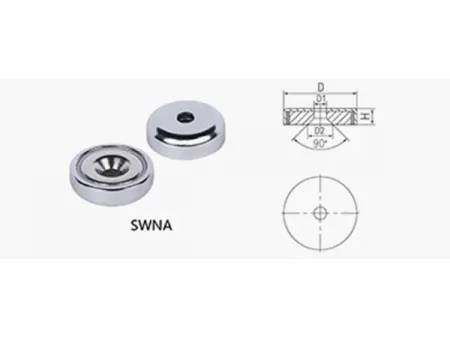

Model	Dimensions (mm)				Weight (g)	Magnet force (N)
Model	D	D1	D2	H	Weight (g)	Magnet force (N)
SWN-A16	16	3.5	6.5	5.2	7	49
SWN-A20	20	4.5	8.6	7.2	15	58
SWN-A25	25	5.5	10.4	7.7	24	137
SWN-A32	32	5.5	10.4	7.8	39	245
SWN-A36	36	6.5	12	7.6	50	284
SWN-A42	42	6.5	12	8.8	77	362
SWN-A48	48	8.5	16	10.8	120	666
SWN-A60	60	8.5	16	15	243	1097
SWN-A75	75	10.5	19	17.8	480	1587

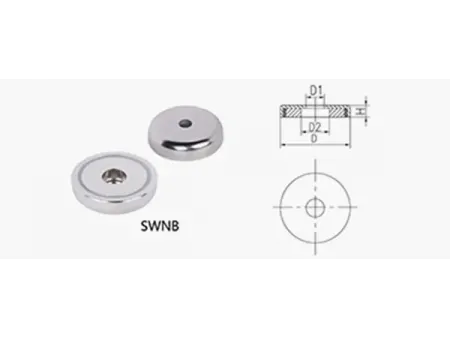

Model	Dimensions (mm)				Weight (g)	Magnet force (N)
Model	D	D1	D2	H	Weight (g)	Magnet force (N)
SWN-B16	16	3.5	6.5	5.2	6.5	39
SWN-B20	20	4.5	8	7.2	13	58
SWN-B25	25	5.5	9	7.7	22	137
SWN-B32	32	5.5	9	7.8	38	225
SWN-B36	36	6.5	11	7.6	48	284
SWN-B42	42	6.5	11	8.8	75	313
SWN-B48	48	8.5	15	10.8	114	617
SWN-B60	60	8.5	15	15	235	931
SWN-B75	75	10.5	18	17.8	460	1519

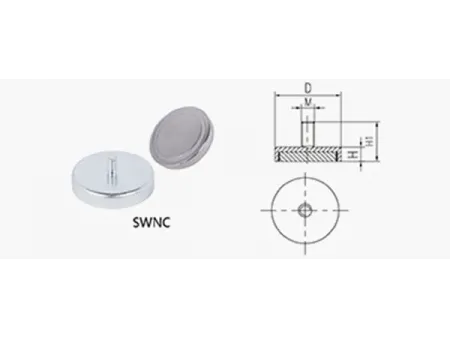

Model	Dimensions (mm)				Weight (g)	Magnet force (N)
Model	D	M	H1	H	Weight (g)	Magnet force (N)
SWN-C10	10	3	12	5	3.5	21
SWN-C12	12	3	12	5	5	31
SWN-C16	16	4	14	5.2	9	53
SWN-C20	20	4	16	7.2	16	88
SWN-C25	25	5	17	7.7	26	215
SWN-C32	32	6	18	7.8	43	333
SWN-C36	36	6	17.6	7.6	54	401
SWN-C42	42	6	18.7	8.8	83	666
SWN-C48	48	8	24	10.8	130	793
SWN-C60	60	8	31.5	15	256	1107
SWN-C75	75	10	35	178	510	1607

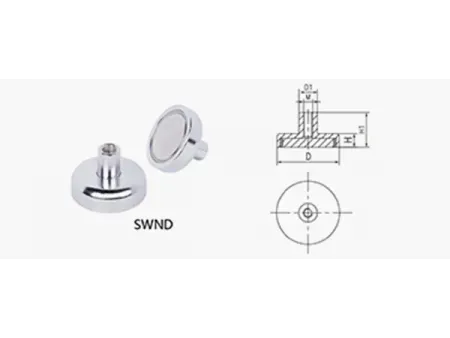

Model	Dimensions (mm)					Weight (g)	Magnet force (N)
Model	D	D1	M	H1	H	Weight (g)	Magnet force (N)
SWN-D10	10	6	3	12	5	4	21
SWN-D12	12	6	3	12	5	6	31
SWN-D16	16	6.5	4	13.5	5.2	9	53
SWN-D20	20	6.5	4	15	7.2	17	88
SWN-D25	25	7.5	5	17	7.7	28	215
SWN-D32	32	10	6	18	7.8	45	333
SWN-D36	36	10	6	18.5	7.6	55	401
SWN-D42	42	10	6	18.8	8.8	84	666
SWN-D48	48	12	8	24	10.8	130	793
SWN-D60	60	12	8	28	15	263	1107
SWN-D75	75	17	10	35	17.8	515	1607

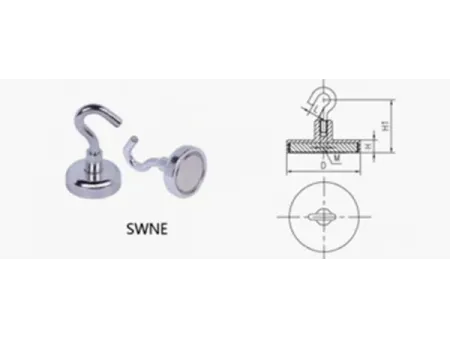

Model	Dimensions (mm)					Weight (g)	Magnet force (N)
Model	D	M	H1	H	L	Weight (g)	Magnet force (N)
SWN-E12	10	3	27	5	6	6	21
SWN-E14	12	3	27	5	6	8	31
SWN-E16	16	4	30	5.2	7.5	12	53
SWN-E20	20	4	32	7.2	7.5	21	88
SWN-E25	25	5	32	7.7	8.5	33	215
SWN-E32	32	6	36	7.8	10	54	333
SWN-E36	36	6	36	7.6	10	64	401
SWN-E42	42	6	37	8.8	10	93	666
SWN-E48	48	8	45	10.8	11	150	793
SWN-E60	60	8	50	15	11	283	1107
SWN-E75	75	10	62	17.8	16	555	1607

Ceramic Pot Magnet

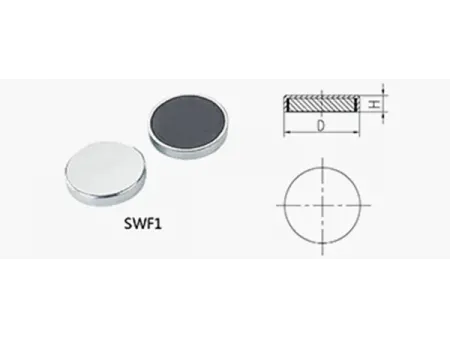

Model	Dimensions (mm)		Weight (g)	Magnet force (N)
Model	D	H	Weight (g)	Magnet force (N)
SWF1-10	10	4.5	2	4
SWF1-13	13	4.5	3	10
SWF1-16	16	4.5	4.5	18
SWF1-20	20	6	10	30
SWF1-25	25	7	19	40
SWF1-32	32	7	30	80
SWF1-36	36	8	42	100
SWF1-40	40	8	55	125
SWF1-47	47	9	80	180
SWF1-50	50	10	100	220
SWF1-57	57	10.5	140	280
SWF1-63	63	14	230	350
SWF1-80	80	18	485	600
SWF1-100	100	22	900	900

Model	Dimensions (mm)					Weight (g)	Magnet force (N)
Model	D	H	d	L	M	Weight (g)	Magnet force (N)

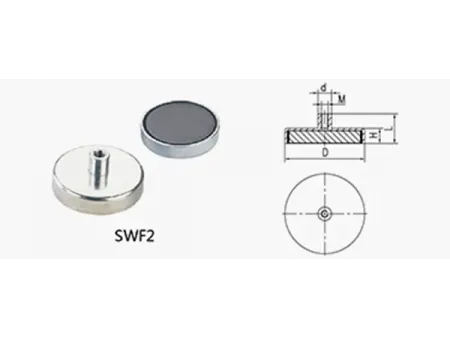

SWF2-10	10	4.5	6	11.5	3	3	4
SWF2-13	13	4.5	6	11.5	3	5	10
SWF2-16	16	4.5	6	11.5	3	6	18
SWF2-20	20	6	6	13	3	11	30
SWF2-25	25	7	8	15	4	22	40
SWF2-32	32	7	8	15	4	32	80
SWF2-36	36	7.7	8	16	4	45	100
SWF2-40	40	8	8	16.5	4	60	125
SWF2-47	47	9	8	17	4	90	180
SWF2-50	50	10	8	18.5	4	110	220
SWF2-57	57	10.5	8	18.5	4	145	280
SWF2-63	63	14	15	30	8	240	350
SWF2-80	80	18	20	34	10	520	600
SWF2-100	100	22	22	43	12	940	900
SWF2-125	125	26	25	50	14	1720	1300

Model	Dimensions (mm)				Weight (g)	Magnet Force (N)
Model	D	H	M	L	Weight (g)	Magnet Force (N)
SWF3-10	10	4.5	3	11.5	3	4
SWF3-13	13	4.5	3	11.5	5	10
SWF3-16	16	4.5	3	11.5	5	18
SWF3-20	20	6	3	13	11	30
SWF3-25	25	7	4	15	22	40
SWF3-32	32	7	4	15	32	80
SWF3-36	36	7.7	4	16	42	100
SWF3-40	40	8	5	16	57	125
SWF3-47	47	9	6	17	85	180
SWF3-50	50	10	6	18.5	105	220
SWF3-57	57	10.5	6	18.5	142	280
SWF3-63	63	14	8	29	219	350

Model	Dimensions (mm)				Weight (g)	Magnet force (N)
Model	D	H	d1	d2	Weight (g)	Magnet force (N)
SWF4-16	16	4.5	3.5	6.5	4	14
SWF4-20	20	6	4.2	8.6	9	27
SWF4-25	25	7	5.5	10.4	16	36
SWF4-32	32	7	5.5	10.4	27	72
SWF4-40	40	8	5.5	10.4	53	90

Model	Dimensions (mm)				Weight (g)	Magnet force (N)
Model	D	H	d1	d2	Weight (g)	Magnet force (N)
SWF5-50	50	10	6	18	105	170
SWF5-63	63	14	8	20	235	250
SWF5-80	80	18	10	28	490	400
SWF5-90	90	18	10	30	620	620
SWF5-100	100	22	10	30	935	800

Model	Dimensions (mm)				Weight (g)	Magnet force (N)
Model	D	H	d1	d2	Weight (g)	Magnet force (N)
SWF6-13	13	4.5	3.3	5	3	6
SWF6-16	16	4.5	3.3	5	4	14
SWF6-20	20	6	3.3	5	8	26
SWF6-25	25	7	4	10	15	32
SWF6-32	32	7	4	10	25	65
SWF6-36	36	7.7	4	10	40	80
SWF6-40	40	8	5.5	12	50	90
SWF6-47	47	9	5.5	10	80	140
SWF6-50	50	10	5.5	18	95	180
SWF6-57	57	10.5	6.5	20	125	240
SWF6-63	63	14	6.5	20	200	300
SWF6-80	80	18	10.5	32	450	510
SWF6-100	100	22	10.5	32	800	800

Model	Dimensions (mm)			Weight (g)	Magnet force (N)
Model	D	H	d1	Weight (g)	Magnet force (N)
SWF7-20	30.73	4.83	3.3	18	13
SWF7-40	36.32	6.86	4.83	35	53
SWF7-50	51.82	7.62	4.83	68	110
SWF7-60	60.71	8.89	6.86	110	180
SWF7-70	68.07	9.65	7.11	159	290
SWF7-75	71.37	9.4	6.86	175	300
SWF7-80	81.28	10.67	7.11	237	425
SWF7-85	98.39	12.95	9.65	404	490
SWF7-90	123.95	12.45	12.7	557	800

Model	Dimensions (mm)		Weight (g)	Magnet force (N)
Model	D	H	Weight (g)	Magnet force (N)
SWF8-10	10	3	4	4
SWF8-13	13	3	6	10
SWF8-16	16	3	8	18
SWF8-20	20	3	12	30
SWF8-25	25	4	22	40
SWF8-32	32	4	34	80
SWF8-36	36	4	46	100
SWF8-40	40	4	60	125
SWF8-47	47	4	90	180
SWF8-50	50	4	110	220
SWF8-57	57	4	145	280
SWF8-63	63	4	220	350
SWF8-80	80	6	530	600

Model	Dimensions (mm)			Weight (g)	Magnet force (N)
Model	L	W	H	Weight (g)	Magnet force (N)
SWF9-3	76.2	38.1	11.68	150	30
SWF9-6	152.4	38.1	11.68	320	30
SWF9-8	203.2	38.1	11.68	445	30
SWF9-12	304.8	38.1	11.68	660	30

AlNiCo Pot Magnet

Model	Dimensions (mm)			Weight (g)	Magnet force (N)
Model	D	H	M	Weight (g)	Magnet force (N)
SWA1-6	6	20	3×7	4	1.7
SWA1-8	8	20	3×7	7	4
SWA1-10	10	20	4×9	12	8
SWA1-13	13	20	4×7.5	20	12
SWA1-16	16	20	4×6	30	19
SWA1-20	20	25	6×9	60	49
SWA1-25	25	35	6×10	128	112
SWA1-27	27	25	6×5	107	184
SWA1-32	32	40	8×10.5	240	196
SWA1-35	35	30	6×7.5	215	142

Model	Dimensions (mm)				Weight (g)	Magnet force (N)
Model	D	H	D1	D2	Weight (g)	Magnet force (N)
SWA2-16	16	6	3.5	6.5	9	15
SWA2-19	19	8	4.2	8	18	30
SWA2-25	25	8	4.2	8	30	40
SWA2-29	29	8.5	4.8	9.7	43	49
SWA2-38	38	11.1	4.8	9.7	98	110

Model	Dimensions (mm)		Weight (g)	Magnet force (N)
Model	D	H	Weight (g)	Magnet force (N)
SWA3-6	6	10	2	2
SWA3-8	8	12	4	3
SWA3-10	10	16	9	5
SWA3-13	13	18	17	10
SWA3-16	16	20	29	15
SWA3-20	20	25	57	35
SWA3-25	25	30	110	80
SWA3-32	32	40	243	150
SWA3-40	40	45	420	200
SWA3-50	50	50	720	350
SWA3-63	63	60	1340	550

Features

The structure of the pot magnet maximizes holding force, ensuring a strong grip while optimizing material costs.
Available in different magnetic materials, including neodymium (NdFeB), samarium cobalt (SmCo), alnico, ferrite, and rubber-coated options, depending on the application and environment.
Various surface treatments are available, such as zinc plating, nickel plating, chrome plating, painting, or rubber coating, enhancing corrosion resistance and durability.
Customization options include different attachment methods, magnetic strength levels, and specific dimensions to meet diverse application requirements.
