Introduction

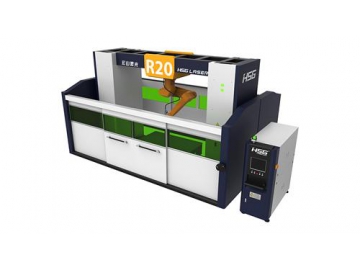

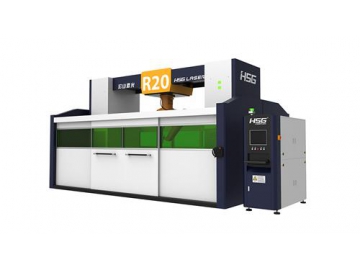

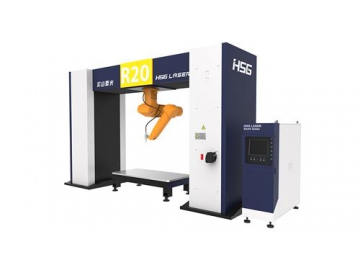

The R20 3D robot laser cutting machine is designed with an open structure. In the top center of the portal frame, there is a robotic arm to finish cutting operations at random points within the working table. The cutting precision reaches 0.03mm, making this cutter ideal for cutting metal sheets for automobiles, kitchen appliances, fitness equipment and more.

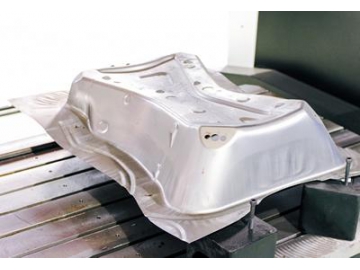

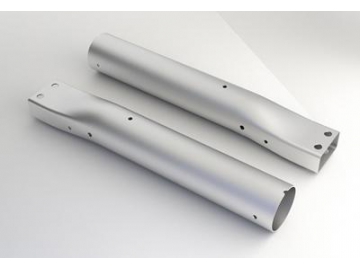

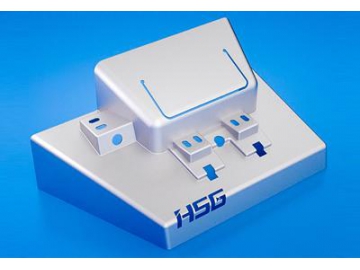

Application

Technology parameter

Processing Speed	120m/min
Arm Length	2010mm
Axis Quantity	6
Working fiber	Core diameter 0.2mm,length 20m
Min. hole diameter	3mm
Repeated Accuracy	±0.03mm
Max. Loading Weight	28kg
Rated Loading Weight	14kg

Component details

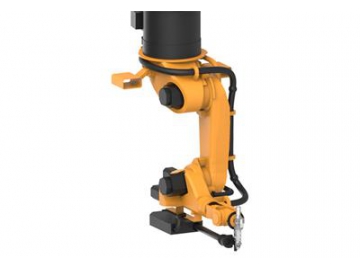

Robotic arm
Equipped with a robotic arm from the German company Kuka, the robot laser cutting machine can produce various complicated 3D patterns in an easy, flexible manner.

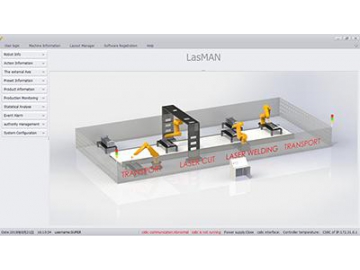

CNC system
The LASMAN robot laser cutting system not only has a high level of integration, but also features comprehensive functions.
