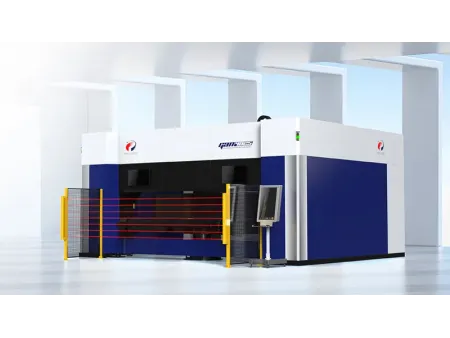

GAN Series 3D Laser Cutting Machine
Request a Quote
Laser cutter system
The GAN series 3D laser cutting machine (1-4kW) epitomizes cutting-edge performance tailored to diverse processing requirements. This machine leverages an advanced 3D five-axis system for unparalleled capabilities in three-dimensional space processing. Its distinctive flexibility, high precision, expansive working area, and sophisticated RTCP function render it perfectly suited for handling large workpieces and cutting tasks that demand high accuracy.
- Laser power1,000W-4,000W
- X axis travel3050-4050mm
- Y axis travel 2050mm
Laser SystemLaser Cut Samples
Applications of Laser Cutting
As a leader in the Chinese laser industry, PENTA LASER specializes in the design and manufacture of high performance laser machines for a wide range of industries, including automotive, shipbuilding, agricultural machinery. Contact with us for a full custom laser engineering solution.
- Shipbuilding
- Aerospace
- Automotive
- Railcar
- Mold Making
- Kitchenware
Features
- Advanced control: The GAN series features a 5-axis system for seamless 3D parts laser welding and cutting, delivering superior processing in three-dimensional space.
- Intuitive control handle: Features a control handle integrating manual operation buttons, an emergency stop, encoders, and more, all based on a PC unit for enhanced user interaction.
- Smart 8-inch touch screen: Comes with an 8-inch touch screen, supported by SMART MANAGER software system for straightforward program teaching functionalities.
- Versatile five-axis laser head: Achieves N*360° rotation and a swing of ±135°, facilitating complex cutting angles and high-precision output.
- Enhanced safety features: Includes a safety light curtain to safeguard personnel by preventing accidental machine access during operation.
Technical Specifications
| Laser power | 1,000W-4,000W |
| X axis travel | 3050-4050mm |
| Y axis travel | 2050mm |
| Z axis travel | 800mm |
| A axis travel | N×360° |
| B axis travel | ±182° |
| Linear motion axis repeatability | ±0.03mm |
| Maximum speed of linear motion axis | 100m/min |
| Maximum acceleration of linear motion axis | 1G |
| Maximum speed of rotary motion axis | 60rpm |
| Rotary motion axis repeatability | 0.03° |
