Electrical Equipment Aluminum Composite Panel, ACP Panel

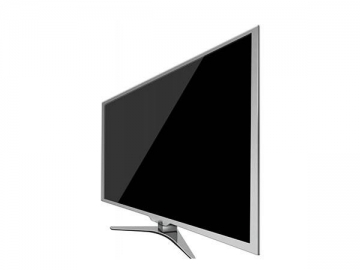

Aluwedo® aluminum composite panel is distinguished for light weight and high rigidity. It is flat, rigid and easy to be fabricated for grooving or bending. This kind of ACP material is widely used in TV, machine, elevator and electric cabinet box, etc.
Advantages
a. This Aluminum composite panel saves a large quantity of cost comparing with steel plates and pure aluminum sheets
b. Light weight
c. High rigidity
d. Large size available
Raw Material
a. High strength aluminum alloy A1100, A3003, A5005
b. LDPE core
c. Surface coating: PE coating, and Dupont adhesive film
Panel Specifications and Dimension
a. Thickness: 2-8mm
Recommended thickness: 3mm
b. Width: 1000-2000mm
Recommended width: 1220mm, 1250mm, 1500mm, 2000mm
c. Length: up to 5800mm or others as required
d. Aluminum thickness: 0.21~0.5mm
e. *Custom width and length is available upon request (subject to the minimum order quantities)
| Testing item | Standard | Result |
| Unit weight | ASTM D792 | T 3mm=4kg/m2 |
| Thermal expansion | ASTM D696 | 24-28 |
| Thermal deformation temperature | ASTM D648 | 115℃ |
| Thermal conduction | ASTM D976 | 0.102kcal/m.hr℃ |
| Flexural rigidity | ASTM D393 | 14.0*10^5 |
| Impact resistance | ASTM D732 | 1.64kgf |
| Adhesive strength | ASTM D903 | 0.77kg/mm |
| Flexural elasticity | ASTM D790 | 4030kg/mm2 |
| Shear resistance | ASTM D732 | 2.7kgf/mm2 |
| Fire propagation | ASTM E84 | qualified |
| Wind-pressure resistant | ASTM E330 | passed |
| Waterproof property | ASTM E331 | passed |
