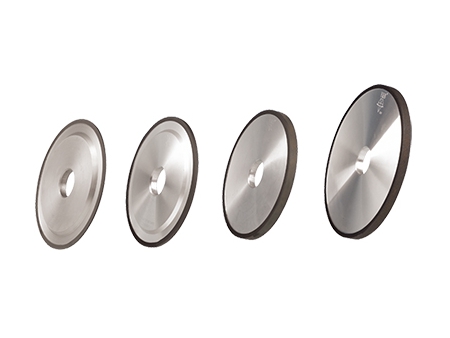

Semiconductor Mold Grinding Wheel, Resin Bond Grinding Tools
Request a Quote
This product has been discontinued and removed from our shelves.

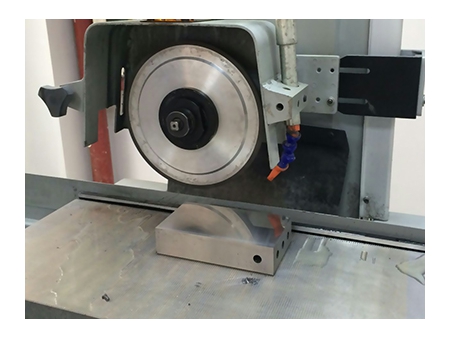

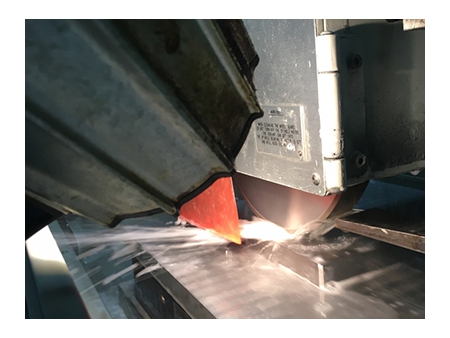

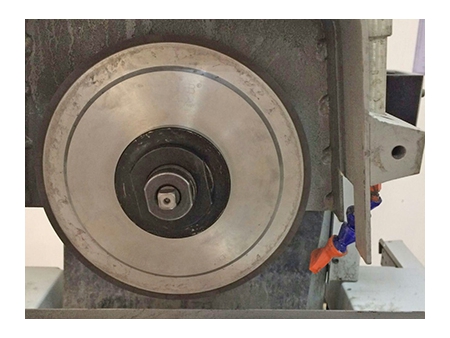

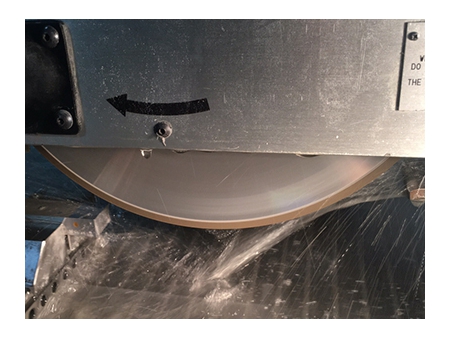

The grinding wheel and resin bond grinding tools are used for grinding semiconductors, such as light guide plates, electronic circuits, light guide glass, fibers and more. The semiconductor mold grinding wheel can be equipped on surface grinding equipment from a variety of brands, including Okamoto, Mitsui High-tec and Nagashima Seiko, and all feature an excellent polishing performance. The sharpness also ensures there will be no machine blockage during grinding.

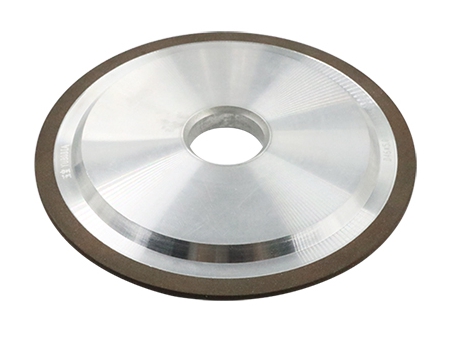

1A1 Grinding wheel
| Outer diameter (mm) | Overall thickness (mm) | Arbor hole diameter (mm) | Abrasive width (mm) |
| 12 | 8-12 | 6 | 2/3 |
| 14 | 8-14 | ||
| 15 | |||
| 16 | 8-16 | 10 | |
| 18 | |||
| 20 | |||
| 23 | 12-20 | ||
| 25 | 2-20 | 5/6/8/10/12 | 2/2.5/3/4 |
| 30 | 5/6/8/10/12/13 | ||
| 35 | 10/12/12.7/16 | 2/2.5/3/4/5 | |
| 40 | 0.2-20 | 8/10/12/12.7/16 | |
| 45 | |||
| 50 | |||
| 60 | 8/10/12/12.7/16/19.05/20/22.23 | ||
| 75 | 0.4-30 | 10/16/19.05/20/22.23/25.4 | 3/4/5 |
| 80 | |||
| 100 | 0.4-35 | 20/22.23/25.4/31.75/32 | 3-6 |
| 115 | 2-20 | 20/22.23/25.4/31.75/32 | |
| 125 | 0.8-35 | 4/5/6/8/10 | |
| 150 | 1-35 | 25.4/31.75/32/40 | |
| 175 | 3-35 | 31.75/32/40 | 5/6/8/10/16 |
| 180 | 10-40 | 31.75/32/40/50.8/75/76.2 | |
| 200 | 1-40 | 5/6/8/10/16/20 | |
| 250 | 10-60 | 50.8/75/76.2/101.6/127 | |
| 300 | 3-60 | 75/76.2/101.6/127/203 | 5/6/8/10/16/20/25 |
| 350 | 12-50 | 127/203 | |
| 400 | 3.5-50 | ||
| 450 | 12-60 | 203/304.8/305 | 5/6/8/10/12/15 |
| 500 | |||
| 600 | |||
| 700 | |||
| 750 | |||
| 800 | 18-50 | 132/304.8/305 | |
| 850 | |||
| 900 | |||
| Note: other specifications can be customized upon request! | |||

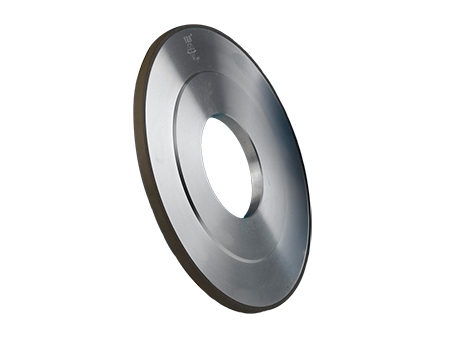

14A1 Grinding wheel
| Outer diameter (mm) | Overall thickness (mm) | Arbor hole diameter (mm) | Wheel core dimension (mm) | Abrasive thickness (mm) | Abrasive width (mm) |
| 75 | 5-10 | 19.05/20 | 40-50 | 0.8-5 | 2-5 |
| 100 | 5-15 | 19.05/20/31.75/32 | 50-80 | 1-8 | 3-6 |
| 125 | 90-110 | ||||
| 150 | 10-15 | 31.75/32 | 100-130 | 1-10 | |
| 175 | 12-20 | 120-140 | |||
| 200 | 12-30 | 31.75/32/75 | 130-160 | 2-10 | 4/5/6/8/10 |
| 250 | 150-200 | 5-10 | |||
| 300 | 15-40 | 127/203 | 200-250 | 6-15 | 4/5/6/8/10 |
| 350 | 250-300 | ||||
| 400 | 20-50 | 300-350 | 6-20 | 5/6/8/10/12/15 | |
| 500 | 203/305 | 350-400 | 10-30 | ||
| 600 | 20-60 | 305 | 400-500 | ||
| 700 | 450-600 | ||||
| Note: other specifications can be customized upon request! | |||||
