Anchor Handling / Towing Winch
-

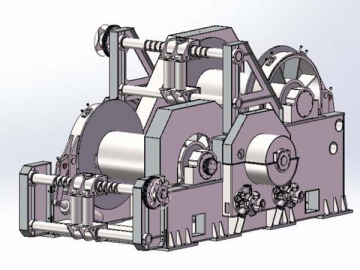

150t Towing Winch - Waterfall type
-

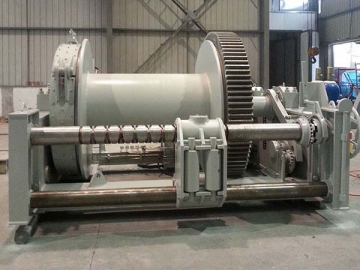

Towing winch in workshop
-

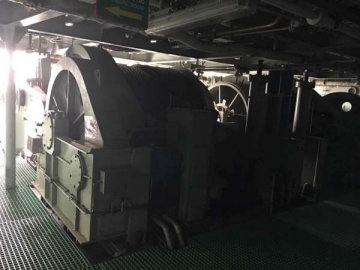

Towing winch onboard
-

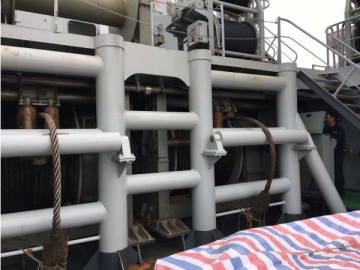

Towing winch onboard
-

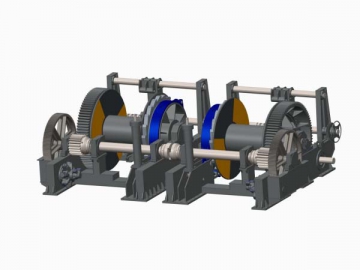

200t Hydraulic towing winch - Parallel type
-
Towing winch - waterfall type
Highlights
Drum load up to 300t
Certificates by all major class societies
Customized and tailor-made design/fabrication
Features
1. Waterfall or Parallel Placement
The anchor handling and towing winch consists of two horizontally (Parallel) or vertically (Waterfall) mounted drums which wind the ropes to hoist or drag the weight. The drums are controlled using a brake and clutch, and they have good bearings and rope holding loads.
2. Spool Device (Wire Winder)
To ensure alignment of the steel wire ropes, a groove or spooling device is mounted.
3. Safety Mesures
For more safety and reliability, we customize special features of the anchor handling and towing winch which can include an emergency release, measurement of load, measurement of released rope length, rope evacuation alarm and constant tension towing.
4. Constant Tension Control
Towing winch can be single-drum, double-drum and trip-drum. It consists of reduction box, drum, spooling device, intermediate shaft, hydraulic braking device, clutch and rack, etc. Towing winch is applied in the towing and anchor handling operation of tugs, AHTS and salvage ships, etc.
Customized Towing Winch
We offer customized manufacturing for our anchor handling and towing winch. To do so, we'll need to know the drive type-electric electro-hydraulic, or diesel hydraulic, whether a chain wheel and remote control are needed, preferences of classification society, and the rated loading, nominal speed, and holding loading.
| Specification | Drum load (kN) | Rate Speed (m/s) | Light Load Speed (m/s) | Dia.of Wire (kN) | MBL of Wire (kN) | Holding load (kN) | Dia.of Drum (kN) | Drum Capacity of Wire (m) |
| 16 | 160 | ≥0.125 | ≥0.25 | Φ26 | 425 | 470 | 416 | 500 |
| 25 | 250 | Φ32 | 645 | 710 | 512 | 600 | ||
| 40 | 400 | Φ40 | 1010 | 1111 | 640 | 750 | ||
| 63 | 630 | Φ48 | 1450 | 1595 | 768 | 850 | ||
| 80 | 800 | ≥0.08 | ≥0.16 | Φ52 | 1700 | 1870 | 832 | 1000 |
| 100 | 1000 | Φ54 | 1840 | 2024 | 864 | |||
| 125 | 1250 | Φ58 | 2120 | 2332 | 928 | 1200 | ||
| 160 | 1600 | Φ64 | 2720 | 3000 | 1024 | |||
| 200 | 2000 | Φ70 | 3483 | 3483 | 1120 | 1500 | ||
| 300 | 3000 | ≥0.083 | ≥0.16 | Φ76 | 5224 | 5224 | 1220 | 1500 |
Application
MNET towing winches have been applied to 14,000kW ocean salvage tug, 3,000t offshore salvage tug and new-type icebreaking ship, etc.
