WD-SC-4500-5T 5T

CNC wood processing machine for mortising and drilling of shaped wooded workpieces

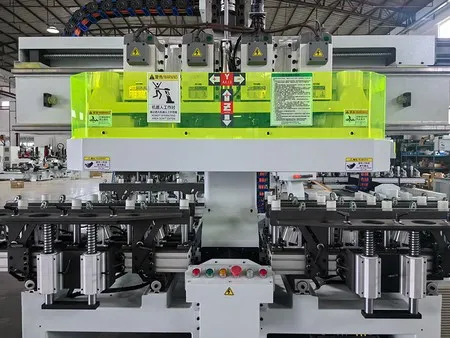

Optimized for handling complex mortise and tenon joints, the 5-head CNC mortising solution delivers high-speed and precise performance. The dual-station configuration allows continuous operation, as one set of workpieces is processed while another is being prepared, ensuring consistent productivity. The integrated lubrication system efficiently supplies oil to all necessary components, promoting smooth function and extending the woodworking system's lifespan.

Features

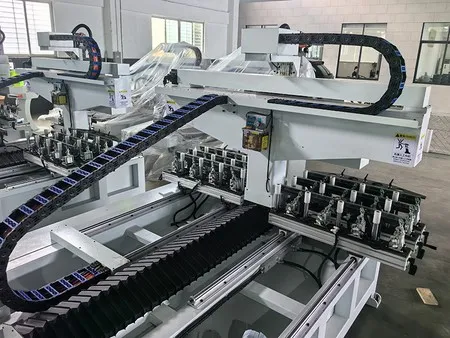

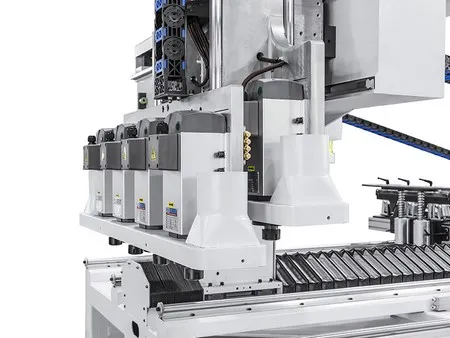

  • The 5-head dual-station design enables simultaneous processing of two sets of workpieces, minimizing downtime and increasing output.
  • A user-friendly tool alignment system automatically generates programs based on reference points, eliminating the need for manual programming.
  • Equipped to handle multiple tasks in a single setup, it can complete various mortise shapes and drill holes using two different tools simultaneously.
  • The precision oil distribution system ensures that critical components receive optimal lubrication, reducing wear and maintaining operational stability.
Specifications
Max. processing length 2200mm
Max. processing width 300mm
Max. processing height 60mm
Working pressure 0.5-0.7MPa
Voltage 380V
Saw blade spindle speed 3000r/min
Saw blade spindle power 2.2kW×1
Main spindle speed 12000r/min
Main spindle power 5.5kW×1
Total power 12kW
Worktable servo motor power 0.85kW×1
X-axis servo motor power 0.85kW×2
Y-axis servo motor power 0.75kW×1
Feeding servo motor power 0.75kW×1
Dimensions (L×W×H) 4400×3000×1600mm
Weight 2500Kg
