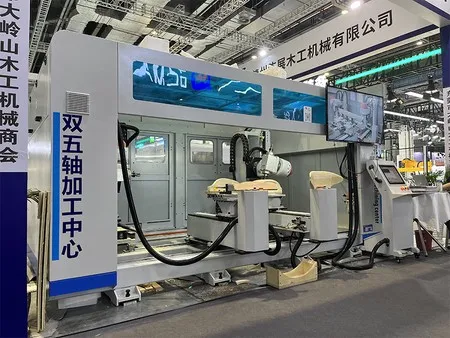

Multi-axis CNC processing center with 2 working heads for mortising, tenoning, sawing, milling and drilling of wood elements

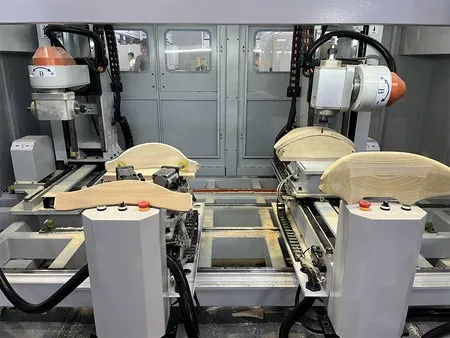

Double head 5-axis CNC machining centers are woodworking system designed for efficient and high-precision processing of solid wood components. Ideal for producing tables, chairs, sofas, beds, and other furniture parts, this system performs a wide range of operations, including double-end tenoning, sawing, three-sided edge milling, and four-sided drilling. Its ability to handle multiple tasks with a single setup significantly reduces production costs and floor space requirements, while enhancing overall productivity.

Features
  • Equipped with an automatic feeding system and servo-driven loading, ensuring faster and more efficient production cycles.

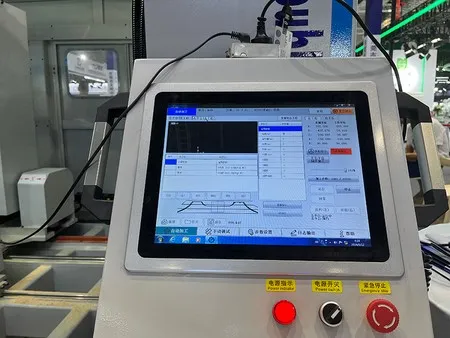

  • Simple setup for mortising and drilling with an intuitive point-to-point operation, enabling precise results without complex programming. Curved edge milling can be easily achieved by importing 2D CAD designs.
  • This system is engineered for multi-functionality, allowing manufacturers to perform a variety of woodworking processes with one machine, which optimizes both cost and space utilization.
Specifications
X-axis motor power 1.2kW×2
Y-axis motor power 1.2kW×2
Z-axis motor power 1.2kW×2

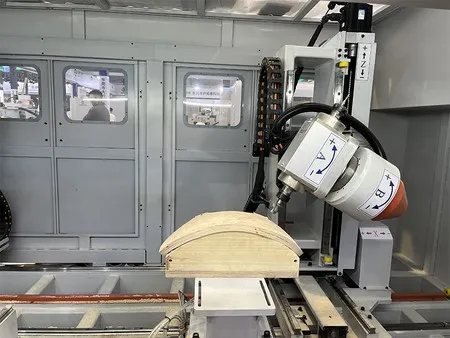

A-axis (left and right rotation) 1.2kW×2
B-axis (front and back machining) 400W×2
Feeding motor power 400W×2
Tool spindle motor power 6kW×2
Machining size Length: 280-1800mm
Width: up to 150mm
Height: up to 70mm
