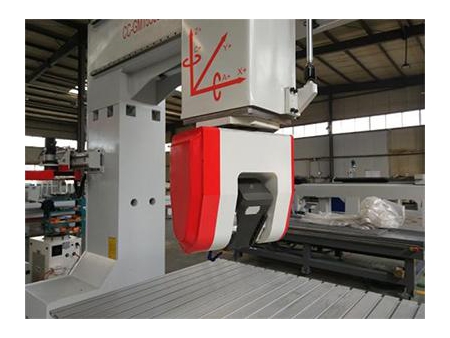

5-axis CNC Machine, SFD-1325A-5S Series
The 5-axis CNC machine is large-scale processing equipment that features a 5-axis linkage control system and supports an RTCP function. They are suitable for processing highly complex parts of irregular and curved surfaces on 3D models. The machine can complete various processes including slot milling, punching, cutting, carving, etc. These versatile 5-axis CNC machines are come equipped with either single or dual moving aluminum/steel tables.

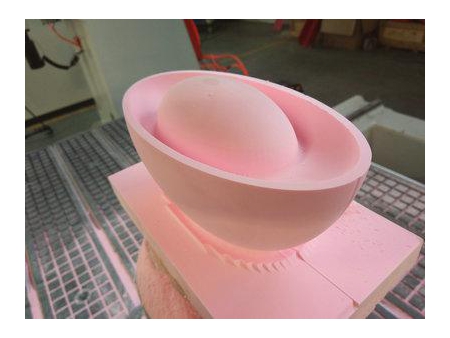

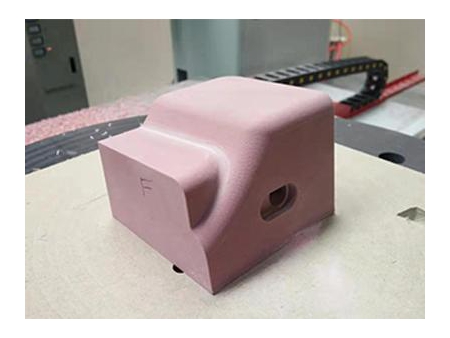

Foam, wood, plastic, composite material and other non-metallic material.
- Woodworking industry: door, furniture, loudspeaker boxes, musical instruments, etc.
- Composite materials industry: plastic parts, FRP parts, rubber products, composite material parts, etc.
- Foundry industry: casting molds, wood molds, foam molds, etc.

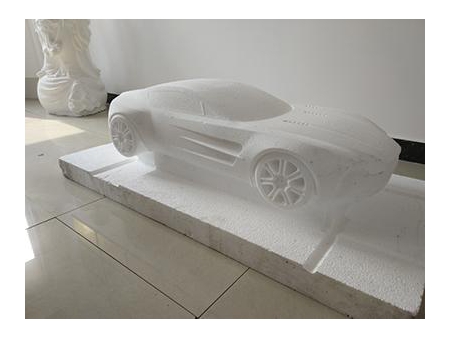

- Automobile industry: automotive molds, car interior parts, auto parts molds, etc.

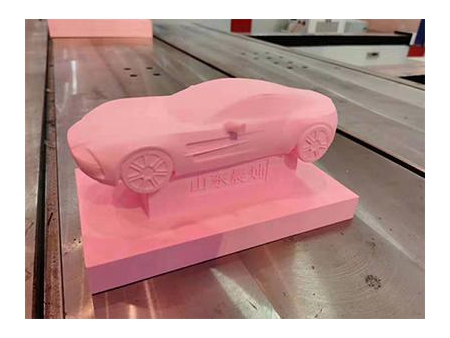

- Model industry: various 3D models, landscape models, exhibition models, architecture models, etc.

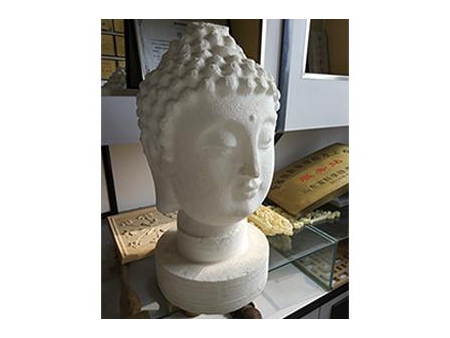

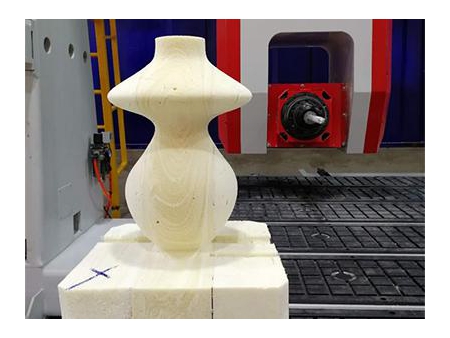

- Sculpture: human form sculptures, animals, plants, decorative pieces, etc.
- Film industry: movie props, activity props, etc.

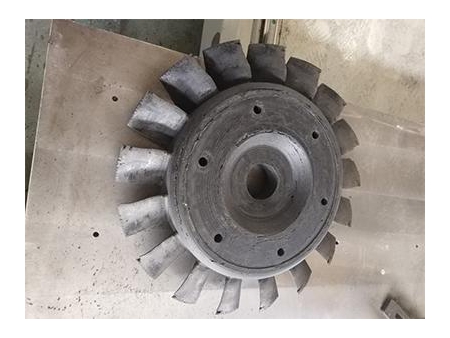

- Ship industry: ship propellers, steamboat accessories, etc.

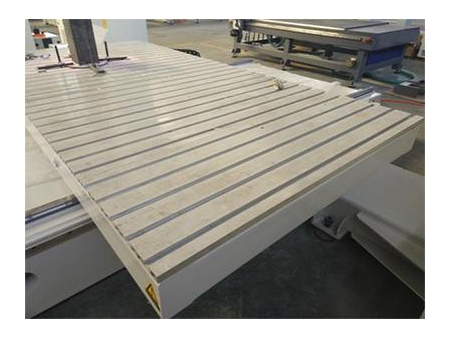

- The moving table of the 5-axis CNC machine features great load carrying capacity and stability.

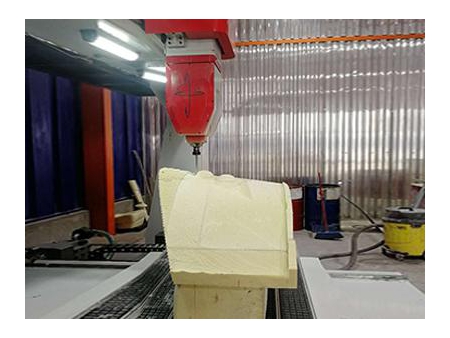

- Utilizing five-axis linkage processing, complex parts can be approached from all directions and can be worked from five sides all in a single operation without adjusting the workpiece.
- The CNC control system is equipped with a high-performance processor, ball screw drive, and servo motor.

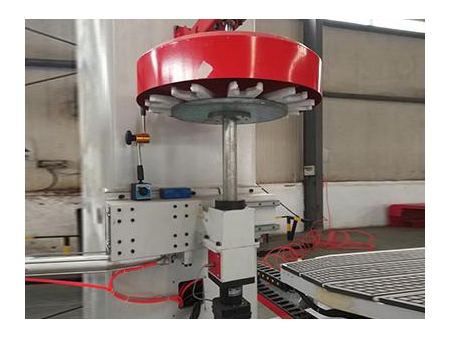

- The 8 position disc-type tool changer features quick tool changing, minimizing downtime and maximizing operating efficiency.
| Series | 1325 | 1530 | 2030 |
| Stroke | 2150*3450*1000mm | 2350*3950*1000mm | 2850*3950*1000mm |
| Idle speed | ≥60000mm/min | ||
| Processing speed | ≥30000mm/min | ||
| Spindle power | 9KW | ||
| Spindle speed | 24000r/min | ||
| File format | G Code | ||
| Working voltage | 380/220V 3PH (Customizable) | ||

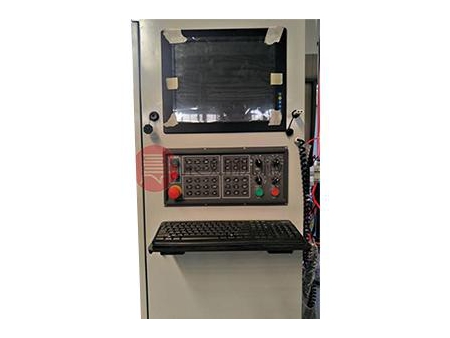

| Operating system | Syntec Control System | ||
| Dimensions | 3.5 x 5.5 x 3.5 m | ||
| Weights | 3000 KGS | ||
1. Aluminum Table/Steel Table/Vacuum table (optional)
2. Vacuum pump
3. Automatic mist sprayer
