LED Work Lamp, 5x8 Series
Description

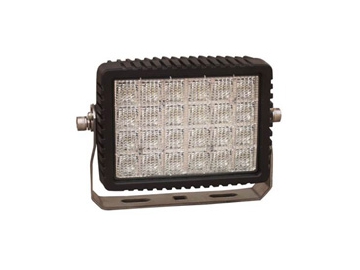

The 5x8 series LED work lamp is designed with a patented technology. It features a higher efficiency and saves more energy than an LED with a traditional TIR lens. The precision die cast aluminum base of the LED automotive light ensures an excellent heat dissipation and a longer service life. Euro, spot, and floor patterns are available in the LED work lamps for vehicles.
- 5Q8
- 5Q8-Ⅱ
- 5Q8-F
- 5Q8-SP
- P-5Q8
Specification:
Operating Voltage: DC10~33V
Operating Temperature: -40℃~ 80℃
Light Source: 24×1~3W high efficiency LEDs
Color Temperature: warm white: ~3000K; natural white: 4000~4500K; pure white: ~6000K
Luminous Flux: ~3000lm
Light Emitting Angle: H40°/V30°
Current: 3.2Amps @ DC12V, 1.6Amps @ DC24V
Power: 45W (max.)
Lens: UV resistant PC lens
Housing: Die-casting aluminum housing with surface sprayed
Accessories: stainless steel bracket bolts screws
IP 67,CE Approved
Specification:
Operating Voltage: DC10~33V; AC85~265V
Operating Temperature: -40~80℃
Light Source: 24PCS high light efficiency 1~3W LED, CRI＞80%
Light Color: Pure white 6000~6500K; Warm white ~3000K; natural white: 4000~4500K
Luminous Flux: ＞3500lm
Power: 40W
Operating Current: 3.2A@12VDC; 1.6A@24VDC
PC lens with UV-resistant aluminum alloy die-cast housing, UV and corrosion resistant painting, stainless steel bracket
IP67
CE-EMC approved
Part Name: 5×8 LED Work Lamp/Floodlight Pattern
Part No.: 5Q8-F
Specifications
Operating Voltage: DC10~33V
Operating Temperature: -40℃~ 80℃
Light Source: 24×1~3W high efficiency LEDs
Color Temperature: warm white:~3000K; natural white:4000~4500K; pure white:~6000K
Luminous Flux: ~3000lm
Light Emitting Angle: H40°/V30°
Current: 3.2Amps @ DC12V, 1.6Amps @ DC24V
Power: 45W (max.)
Lens: UV resistant PC lens
Housing: black die-casting aluminum housing with electrophoretic paint surface
Accessories: stainless steel bracket bolts screws
IP 67
CE approved
Part Name: 5×8 LED Work Lamp/Spotlight Pattern
Part No.: 5Q8-SP
Specifications
Operating Voltage: DC10~33V
Operating Temperature: -40℃~ 80℃
Light Source: 24×1~3W high efficiency LEDs
Color Temperature: warm white:~3000K; natural white:4000~4500K; pure white:~6000K
Luminous Flux: ~3000lm
Light Emitting Angle: ~5°
Current: 3.2Amps @ DC12V, 1.6Amps @ DC24V
Power: 45W (max.)
Lens: UV resistant PC lens
Housing: black die-casting aluminum housing with electrophoretic paint surface
Accessories: stainless steel bracket bolts screws
IP 67
CE approved

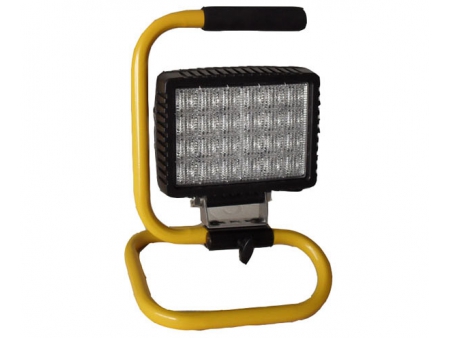

Part Name: 5×8 Portable LED Work Lamp
Part No.: P-5Q8
Specifications
Operating Voltage: DC10~33V
Operating Temperature: -40℃~ 80℃
Light Source: 24×1~3W high efficiency LEDs
Color Temperature: warm white:~3000K; natural white:4000~4500K; pure white:~6000K
Luminous Flux: ~3000lm
Light Emitting Angle: H40°/V30°
Current: 3.2Amps @ DC12V, 1.6Amps @ DC24V
Power: 45W (max.)
Lens: UV resistant PC lens
Housing: Die-casting aluminum housing with electrophoretic paint surface
Accessories: stainless steel bracket bolts screws portable handle
IP 67
CE approved
Applications:
This series of LED work lamps for cars is widely used in engineering vehicles, mining machines, agriculture machinery, fork trucks dune buggies and other specialized vehicles.
