Four-Lamp UV Dryer
UV curing system for drying UV paint on flat surfaces
Our four-lamp UV dryer stands out with its advanced drying capabilities, featuring four powerful UV lamps for superior efficiency. This dryer is specifically designed to rapidly dry flat panels treated with UV coatings, not only speeding up the drying process but also enhancing the hardness and brightness of the surface. Ideal for industries where speed and finish quality are important, this UV drying machine ensures that UV-coated products are quickly and effectively dried to a superior standard.

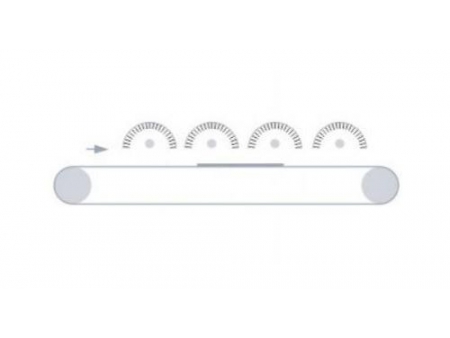

As UV-coated products move through the dryer on a conveyor belt, they are exposed to intense UV light from the strategically placed lamps. This exposure triggers a fast photochemical reaction in the UV coating, instantly solidifying it into a durable, glossy film. This innovative process delivers not just swift drying, but also adds to the longevity and aesthetic appeal of the finished product, making it a reliable choice for high-throughput production environments.
| Working thickness | 2-80mm |
| Working width | 620/920/1320mm (optional) |
| Min. working length | 300mm |
| Feeding speed | 0-20m/min |
| Feeding power | 1.5 kW |
| Power supply | 380V/50Hz |
| Coating type | UV coating |
| Model | Working width (mm) | Lamp power (kW) | Fan power (kW) | Dimensions (L×W×H) |
| 620 | 5.6*34 | 0.55*4 | 2500×1700×1500 | |
| 920 | 8.0*4 | 0.75*4 | 2500×2000×1500 | |
| 1320 | 9.6*4 | 0.75*4 | 2500×2400×1500 |
