LED Work Lamp: 4x5 Series

LED Work Lamp: 4x5 Series
LED Work Lamp: 4x5 Series
LED Work Lamp: 4x5 Series
Request a Quote

Description

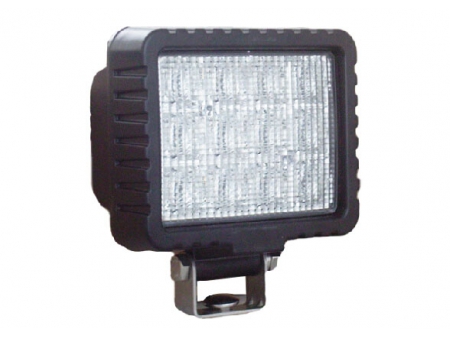

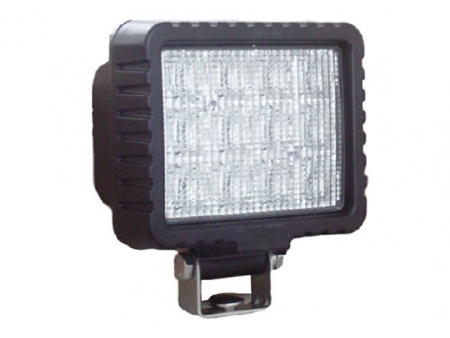

Designed using patented technology, the 4x5 series LED work lamp has a higher efficiency and saves more energy than traditional LEDs with a TIR lens. A precision die cast aluminum base ensures an outstanding heat dissipation and an extended service life. Euro, flood, and spot patterns are optional.

Product selection:
  • 4Q5-M
  • 4Q5
  • P-4Q5
  • 4Q5-F
4Q5-M

Specification:
Operating Voltage: DC10~33V, DC30~50V
Operating Temperature: -40℃~ 80℃
Light Source: 12×1~3W high efficiency LEDs
Color Temperature: warm white: ~3000K; natural white: 4000~4500K; pure white: ~6000K
Luminous Flux: ~1500lm
Light Emitting Angle: H80°/V30°
Current: 1.6Amps @ DC12V, 0.8Amps @ DC24V
Power: 20W (max.)
Lens: UV resistant PC lens
Housing: Die-casting aluminum housing with surface sprayed
Accessories: stainless steel bracket bolts screws
IP 67,CE Approved

4Q5

    Specification:
    Operating Voltage: DC10~33V, DC30~50V
    Operating Temperature: -40℃~ 80℃
    Light Source: 12×1~3W high efficiency LEDs
    Color Temperature: warm white: ~3000K; natural white: 4000~4500K; pure white: ~6000K
    Luminous Flux: ~1500lm
    Light Emitting Angle: H40°/V30°
    Current: 1.6Amps @ DC12V, 0.8Amps @ DC24V
    Power: 20W (max.)
    Lens: UV resistant PC lens
    Housing: Die-casting aluminum housing with surface sprayed
    Accessories: stainless steel bracket bolts screws
    IP 67,CE Approved

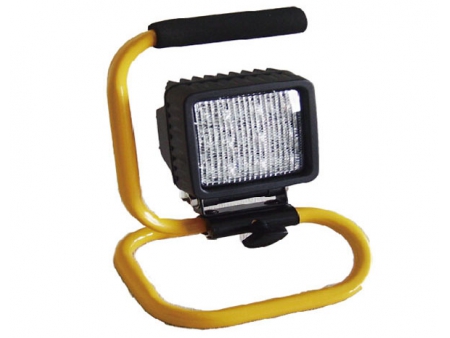

    P-4Q5

    Specification:
    Operating Voltage: DC10~33V, DC30~50V
    Operating Temperature: -40℃~ 80℃
    Light Source: 12×1~3W high efficiency LEDs
    Color Temperature: warm white: ~3000K; natural white: 4000~4500K; pure white: ~6000K
    Luminous Flux: ~1500lm
    Light Emitting Angle: H40°/V30°
    Current: 1.6Amps @ DC12V, 0.8Amps @ DC24V
    Power: 20W (max.)
    Lens: UV resistant PC lens
    Housing: Die-casting aluminum housing with surface sprayed
    Accessories: stainless steel bracket bolts screws portable handle
    IP 67,CE Approved

    4Q5-F

      Part Name: 4×5 LED Work Lamp/Floodlight Pattern
      Part No.: 4Q5-F

      Specification:
      Operating Voltage: DC10~33V, DC30~50V
      Operating Temperature: -40℃~ 80℃
      Light Source: 12×1~3W high efficiency LEDs
      Color Temperature: warm white:~3000K; natural white:4000~4500K; pure white:~6000K;
      Luminous Flux: ~1500lm
      Light Emitting Angle: H80°/V30°
      Current: 1.6Amps @ DC12V, 0.8Amps @ DC24V
      Power: 20W (max.)
      Lens: UV resistant PC lens
      Housing: Die-casting aluminum housing with powder coated surface
      Accessories: stainless steel bracket bolts screws
      IP 67
      CE approved

      Applications:
      The LED mounted lamp is widely used in engineering vehicles, mining machinery, agricultural machinery, fork trucks, dune buggies and other specialized vehicles.
