Machine Aluminum Composite Material Panel
Application

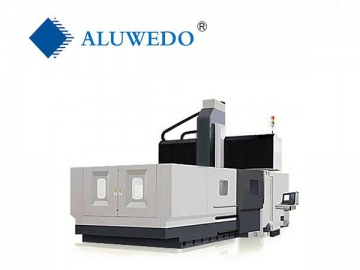

Aluminum composite panel of this series is always installed on machine surface for protection.
Features
Machine aluminum composite material panel gets rid of the disadvantages of traditional ACP and possesses many extra outstanding properties, like, gorgeousness, decorativeness, weather resistance, corrosion resistance, impact resistance, humidity resistance, thermal resistance, vibration resistance, fire-proof and sound-proof, light weight, workability, and easy to install and transport, while not sacrificing the original strength of its raw materials – aluminum and PE materials.
| Specifications Of Aluminum Composite Panel | |
| Normal Width | 1220mm, 1250mm, 1500mm, 1570mm, 2000mm |
| Panel Thickness | 2mm 3mm 4mm 5mm 6mm |
| Aluminum Alloy | AA1100,AA3003,AA5005(Other Grade On Requirements) |
| Aluminum Skin Thickness | 0.08mm ~ 0.60mm |
| Coating | PE/PVDF/FEVE/NANO/Anti-scratch/Mill |
| PE Core | Recycle PE Core/Fireproof PE Core/Unbreakable PE Core |
| Color | Solid/ Glossy/Matt/Metallic/Marble/Wooden/Brush/Mirror/Embossed |
| Length | 5800mm in maximum for 20ft container |
| Delivery | 15 to 20 days after order confirmed and receiving deposit |
| MOQ | 600 to 1000 m2 per color |
| Brand/OEM | ALUWEDO®/ Customized |
| Payment Terms | T/T/ L/C at sight/Western Union |
| Packing | By bulk; In Wooden Package |
| Testing Item | Standard | Result |
| Unit Weight | ASTM D792 | T 3mm=4kg/m2 |
| Thermal Expansion | ASTM D696 | 24-28 |
| Thermal Deformation Temperature | ASTM D648 | 115℃ |
| Thermal Conduction | ASTM D976 | 0.102kcal/m.hr℃ |
| Flexural Rigidity | ASTM D393 | 14.0*10^5 |
| Impact Resistance | ASTM D732 | 1.64kgf |
| Adhesive Strength | ASTM D903 | 0.77kg/mm |
| Flexural Elasticity | ASTM D790 | 4030kg/mm2 |
| Shear Resistance | ASTM D732 | 2.7kgf/mm2 |
| Fire Propagation | ASTM E84 | Qualified |
| Wind-Pressure Resistant | ASTM E330 | Passed |
| Properties Against Water | ASTM E331 | Passed |
Description
Machine aluminum composite material panel possesses the characters of high strength and good workability.
Aluwedo is a reliable machine use aluminum composite material panel manufacturer and supplier, offers a wide range of interior and exterior decorative ACP panels and industrial covering ACPs for customers. From the raw material selection, panel manufacturing and surface coating, each step is under strict control, we are sure to offer quality industrial covering ACP composite panels with competitive prices.
