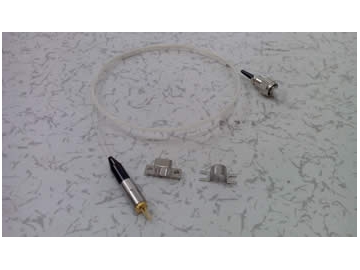

The Pin TIA receiver is used in the optical communication system to convert the weak optical signal into an electrical signal, then amplify the signal while adding as little noise as possible.
The equipment comes with a built-in InGaAs pin and transimpedance amplifer (TIA). The pin converts the incident light into photoelectric current while the TIA is able to convert the optical signal into voltage signal with low current noise.
In addition, the Pin TIA receiver is provided in a small size sleeve package. The high quality connectors and plugs as well as the laser welded structure ensure the operation stability of the device.
| |
| 1100nm-1650nm Gigabit InGaAs Power Pin Diode PIN-TIA Receiver | 850nm GaAs PIN-TIA Pigtailed Laser Detector Plug-in Type |
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Condition |
| Power Supply | Vcc | 3.0 | 3.3 | 3.6 | V | |
| Supply Current | Icc | 28 | 40 | mA | no loads | |
| Differential Responsivity | Rd | 1.4 | 3.0 | mV/uW | Rload=100ohm,P=-18, λ=1310nm | |
| Signal Ended Responsivity | Rs | 0.7 | 1.5 | mV/uW | Rload=50ohm,P=-18, λ=1310nm | |
| Small-Signal Bandwidth | BW | 1 | MHz | |||
| Low-Frequency Cut off | LF | 5 | KHz | |||
| Rise Time/Fall Time (20%~80%) | Tr/tr | 150 | 200 | ps | P=-18, λ=1310nm | |
| Saturation Power | Psat | -3 | dBm | λ=1310nm | ||
| Signal Ended Output Impendance | Ro | 40 | 50 | 60 | Ohm | |
| Wavelength | λ | 1100 | 1650 | nm | ||
| Sensitivity | -26 | dBm | λ=1310nm,PRBS7,ER=10dB, BER=1E-10 |
Applications
1. Digital Trunked Radio Communication System or LAN
2. 1.25Gb/s SDH/SONET Transmission System
3. 1 Gbps Fiber Channel
4. SONET OC-24/OC-48 or SDH
5. TM-16 Receiver and Transceiver Module
6. 1×9/GBIC Module
7. 1.25G Ethernet Transceiver Module
8. 1G Fiber Channel Transceiver Module
Our company is a professional Pin TIA receiver manufacturer and supplier in China. We provide a wide range of products, including DFB pigtailed laser diode device, InGaAs coaxial plug in diode laser modules, butterfly fiber coupled laser diodes, and more.
