650nm Pigtailed Laser Diode Module

Request a Quote

View All: http://laserdiodedevice.com/2-5-1-650nm-pigtailed-laser-diode-module.html

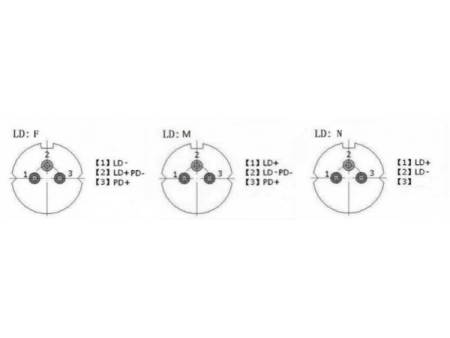

Top view
Note:
F Type pin Applicable Power 1-2mw
M Type pin Applicable Power 1-5mw
N Type pin Applicable Power 5-20 mw

The maximum output power of the 650nm pigtailed laser diode module can reach 20 mw, which is widely used in light sources and instruments. Different types of fibers and connectors can be customized based on customers' needs.

Absolute Maximum Ratings

Parameter	Symbol	Min.	Max.	Unit
Fiber Output Power	Po(CW)		20	mW
Forward Current(LD)	If(LD)		180	mA
Reverse Voltage(LD)	Vr(LD)		2	V
Forward Current(PD)	If(PD)		2	mA
Reverse Voltage(PD)	Vr(PD)		15	V
Storage Temperature	Tstg	-40	85	°c
Operating Temperature	To	-10	60	°c
Lead Solder Temperature	-		260	°c
Lead Solder Time	-		10	s

Optical & Electrical Characteristics

Parameter	Symbol	Min.	Typ.	Max.	Unit
Output Power	Po	1	-	20	mW
Threshold Current	Ith	-	15	20	mA
Operating Current	If	-	30	140	mA
Operating Voltage	Vf	-	2.3	3.0	V
Monitor Current	Im	-	-	500	uA
Cent Wavelength	λc	650	-	660	nm
Spectral Width (RMS)	Δλ	-	2	3	nm
Spectral Shift	Δλ/ΔT	-	-	0.2	nm/°C
Fiber	SM (4um or 9um), MM, etc.

Our company is a professional 405nm-980nm red visible light laser diode modules manufacturer and supplier in China. Our products include DFB pigtailed laser diode device, butterfly fiber coupled laser diodes, InGaAs Coaxial Plug in laser diodes, and more.
