Water Bath Cooling Conveyor
Request a Quote

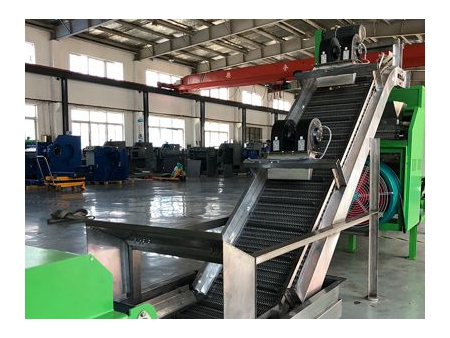

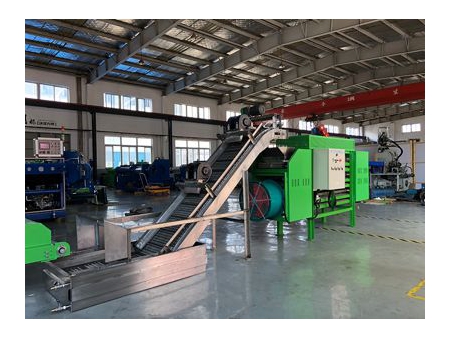

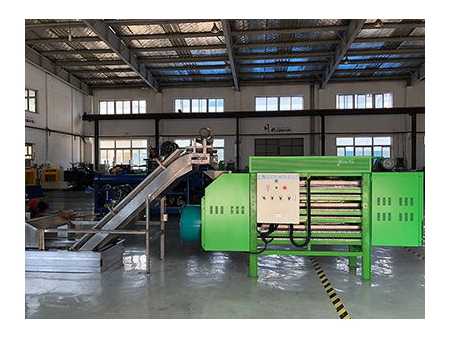

Our water bath cooling conveyor is a crucial addition to your rubber processing line, enabling you to cool and stabilize rubber components using a combination of water cooling and air cooling technology. This specialized conveyor is engineered to eliminate the risk of material adhesion and deformation, ensuring that your rubber components maintain their integrity and quality throughout the cooling process.
Specifications
| Model | |
| Conveyor Type | Stainless steel sloping conveyor |
| Water Tank Dimensions (L*W*H) | 1.7*0.9*0.3 m |
| Distance of Blank Conveying (in Water) | 1400 mm |
| Sloping Conveying Width | 450 mm |
| Sloping Conveying Speed | 5-10 m/min |
| Volume of Cooling Air (Sloping) | 4500 m3/h |
| Horizontal Conveying Width | 400 mm |
| Horizontal Conveying Speed (Adjustable) | 2~10 m/min |
| Number of Layer | 3 |
| Volume of Cooling Air (Horizontal) | 40000 m3/h |
| Total Power | 2.5 kW |
| Dimensions (L*W*H) | 5.5*0.8*2 m |
| Weight | 1.4 T |
Features
- Stainless Steel Design: Constructed with high-quality stainless steel, guaranteeing hygienic and durable performance while preventing contamination.
- Versatility in Cooling Applications: Designed for both water-cooling and products using liquid release agent, this conveyor accommodates a wide range of product sizes and types.
- Efficient Water Tank Separation: The water tank section employs a lever mechanism for easy separation, facilitating swift cleaning during material replacement.
- Precise Conveyor Speed Control: With its adjustable stainless steel mesh conveyor, our water bath cooling conveyor enables precise control of conveyor speed to match your preformer's cutting speed.
