BP04 Professional Adjustable CO₂ Dual Stage Regulator, for Laboratory, Wine Preservation, Pest Control and Welding

BP04 Professional Adjustable CO₂ Dual Stage Regulator, for Laboratory, Wine Preservation, Pest Control and Welding
BP04 Professional Adjustable CO₂ Dual Stage Regulator, for Laboratory, Wine Preservation, Pest Control and Welding
BP04 Professional Adjustable CO₂ Dual Stage Regulator, for Laboratory, Wine Preservation, Pest Control and Welding
BP04 Professional Adjustable CO₂ Dual Stage Regulator, for Laboratory, Wine Preservation, Pest Control and Welding
BP04 Professional Adjustable CO₂ Dual Stage Regulator, for Laboratory, Wine Preservation, Pest Control and Welding
BP04 Professional Adjustable CO₂ Dual Stage Regulator, for Laboratory, Wine Preservation, Pest Control and Welding
BP04 Professional Adjustable CO₂ Dual Stage Regulator, for Laboratory, Wine Preservation, Pest Control and Welding
BP04 Professional Adjustable CO₂ Dual Stage Regulator, for Laboratory, Wine Preservation, Pest Control and Welding
BP04 Professional Adjustable CO₂ Dual Stage Regulator, for Laboratory, Wine Preservation, Pest Control and Welding
BP04 Professional Adjustable CO₂ Dual Stage Regulator, for Laboratory, Wine Preservation, Pest Control and Welding
Request a Quote
  • Medium: N2, CO₂
  • Outlet Pressure Range: 0~10psi, 0~15psi, 0~25psi, 0~50psi
  • Inlet Port Thread: 3/8-24UNF, 1/2-20UNF, 5/8-18UNF
  • Outlet Port Thread: 1/8NPT, Rc 1/8
  • MOQ: 100 pieces
  • OEM sample available for brands

The dual-stage pressure regulator is designed with two distinct pressure reduction stages. Initially, the high-pressure gas is reduced to a medium-low pressure in the first stage, and then further reduced to low pressure in the second stage. This design ensures precise and stable pressure output with a tolerance of only ±1 PSI. The regulator features a unique short adjustment stroke, allowing users to achieve the desired pressure with just a 3/4 turn. The preset maximum output pressure provides effective risk control, making it ideal for systems that need to manage significant pressure variations, such as large industrial production lines and high-pressure gas cylinders.

Specifications
Model BT04A BT04B BT04S
Body Material 6061-T6 Hsi59-0.5 Stainless steel
Medium N2, CO₂
Operating Temperature -30℃~65℃
Outlet Pressure Range 0~10psi, 0~15psi, 0~25psi, 0~50psi
Pressure Accuracy ±1psi
Applicable Cylinders 8g,16g,50g,74g disposable Gas Cylinders
Inlet Port Thread 3/8-24UNF, 1/2-20UNF,5/8-18UNF
Outlet Port Thread 1/8NPT, Rc 1/8
Lubricant TTA FMX(NSF)
Max. Working Inlet Pressure 1200psi 3000psi 5000psi
Burst Pressure (Rupture Disc) 3000psi 5000psi 7000psi

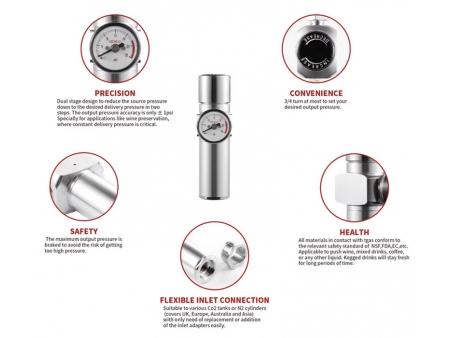

  • Product Features

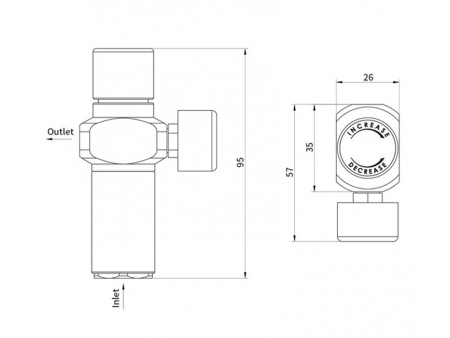

  • Overall Dimensions

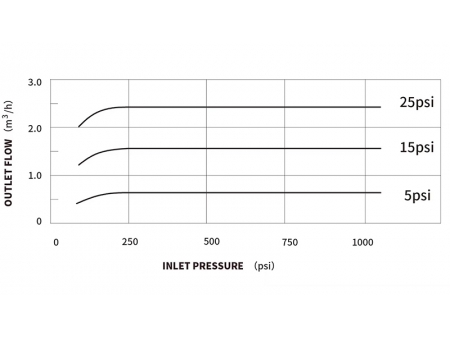

  • Flow Characteristic
  • Pressure Characteristic
Application
