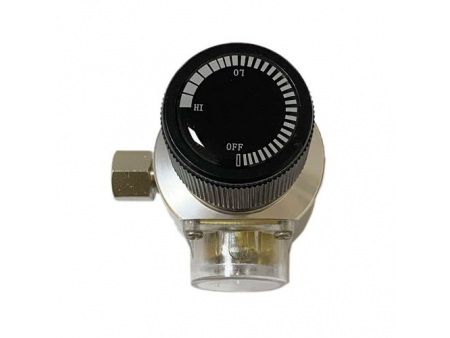

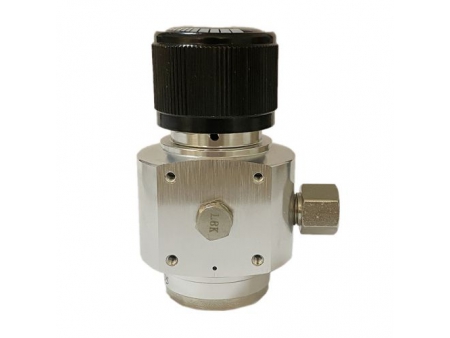

BP20 Commercial CO₂ Regulator for 3/8"-24 UNF Threaded 16g CO₂ Cartridge

Request a Quote

View All: http://minikegdispenser.com/3-2-1-commercial-co2-regulator-for-16g-cartridge.html

Gas-in thread: 3/8”-24 UNF
Gas-out thread: 1/8NPT→M8*0.75
N.W.: 0.316kg
Packing: 40 pcs/carton
Carton size: 50.5 x 32.5 x 32.5cm
Weight: 18.0kg
MOQ: 100 pieces
OEM sample available for brands

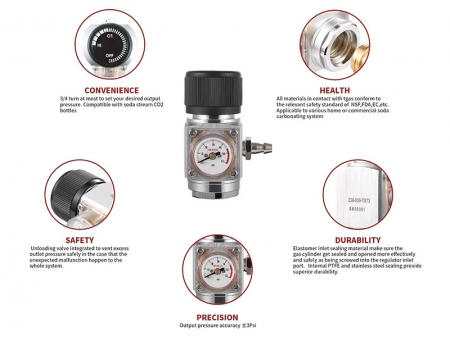

Features

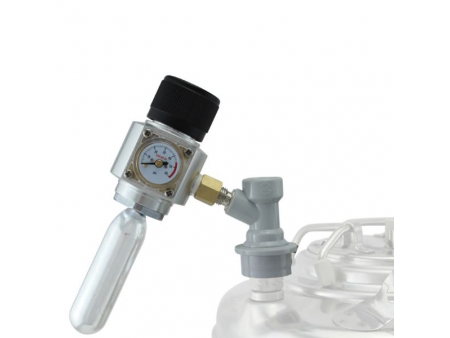

Mini CO₂ Regulator allows you to dispense kegged beer on the go without requiring a heavy CO2 tank and regulator

Boasts a compact and portable aluminum construction that is perfect for parties and special events

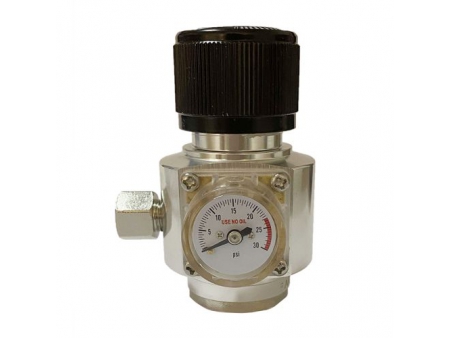

Enjoy exact control over your pressure output thanks to the 0-60 PSI display and adjustment knob

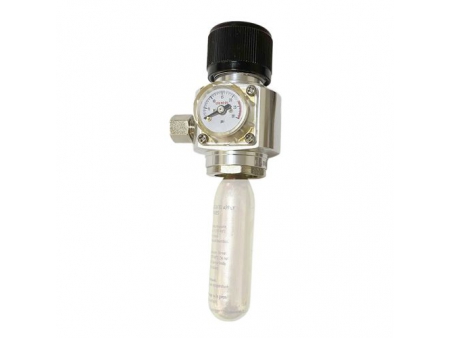

This Mini CO₂ Regulator has been designed for use with 3/8"-24 UNF threaded CO2 cartridges

Features a flared 1/8 NPT connection on the output

Model	BP20A	BP20B	BP20S
Body Material	6061-T6	Hsi59-0.5	Stainless Steel
Surface Treatment	Hard anodizing	Passivating	-
Medium	N2, CO₂, HE
Operating Temperature	-20℃~65℃
Adjustable Output Pressure	0~30psi, 0~60psi, 0~90psi, 0~150psi
Pressure Accuracy	±0.25bar
Pressure Gauge Accuracy	Display tolerance ±1psi
Opening Pressure of SRV	Max. setting pressure 3bar
Inlet Pressure	10～120bar
Proof Pressure	≥250bar

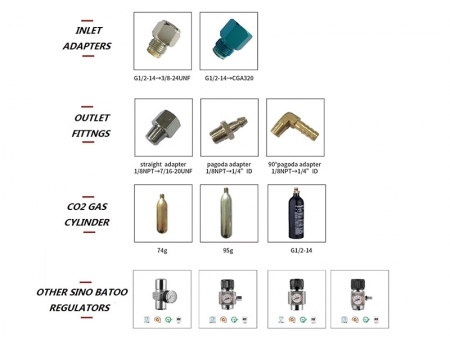

Related Parts

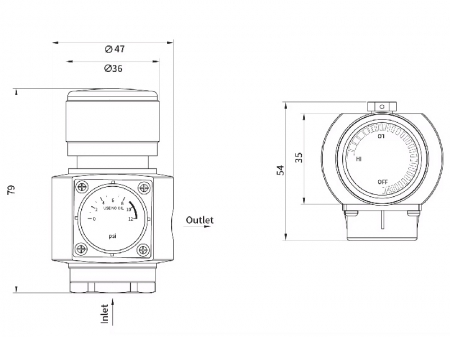

Overall Dimensions

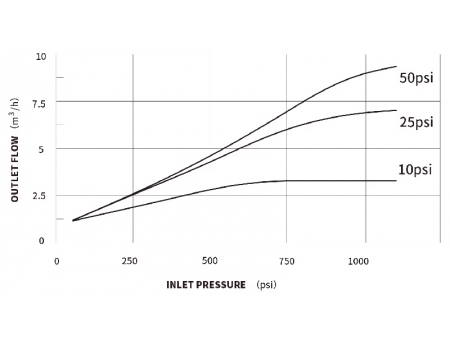

Flow Characteristic

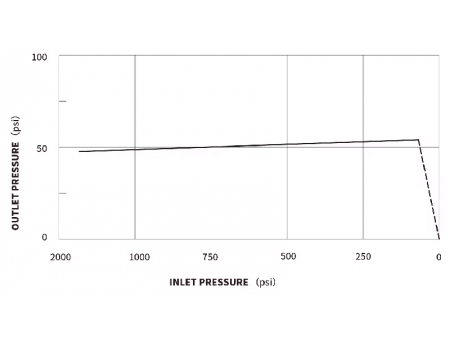

Pressure Characteristic

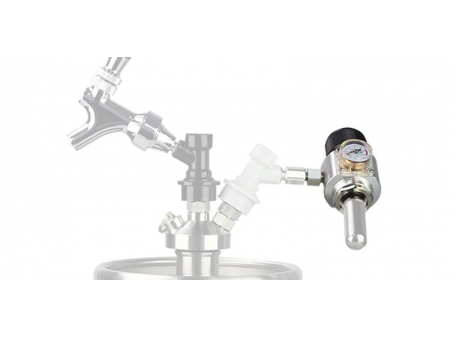

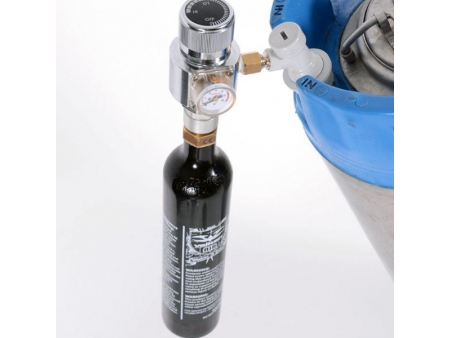

Beverage & Drinks

Regulator to pressurize your beer growler keg and dispense your homebrew beer, kombucha, seltzer water, iced tea, soda, other mixed drinks, and any other drink you desire

Psi Range We Recommend

Nitro cold brew coffee: 60 PSI
Beer: 5-15PSI to serve your beer, 30-45PSI to force carbonate
Soda maker: 60-100PSI
