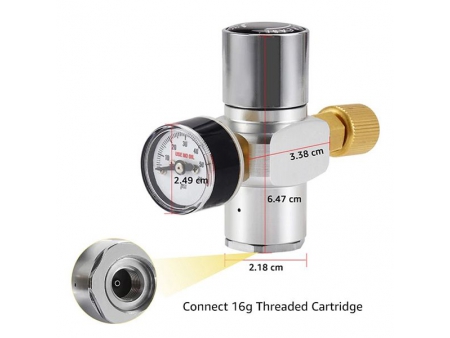

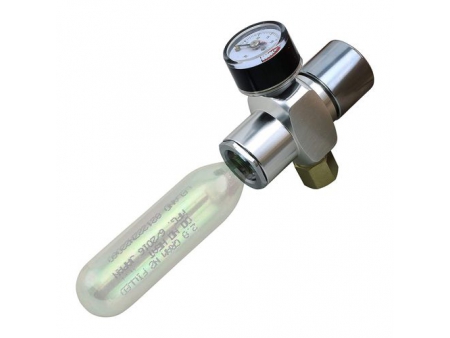

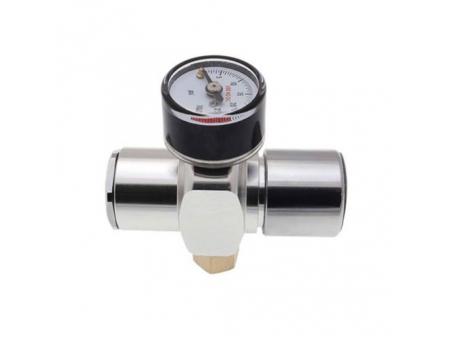

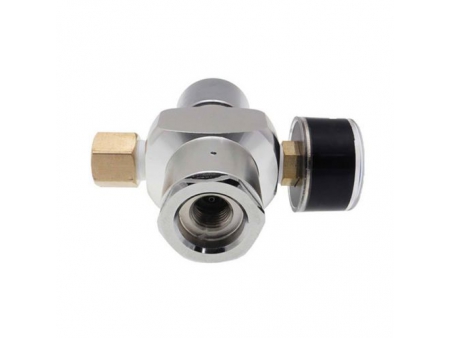

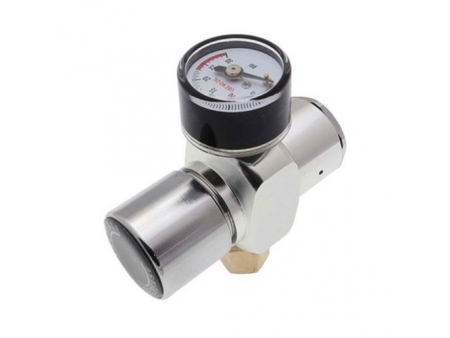

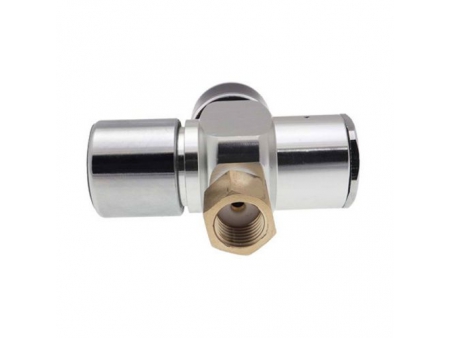

BP02 Mini CO₂ Regulator for 3/8"-24 UNF Threaded 16g CO₂ Cartridge
Request a Quote
- Gas-in thread: 3/8”-24 UNF
- Gas-out thread: 1/8NPT→M8*0.75
- N.W.: 0.15KG
- Packing: 100 pcs/carton
- Carton size: 44.5*44.5*23cm
- Weight: 19.15kg
- MOQ: 100 pieces
- OEM sample available for brands
Features
- Beverage & Drinks

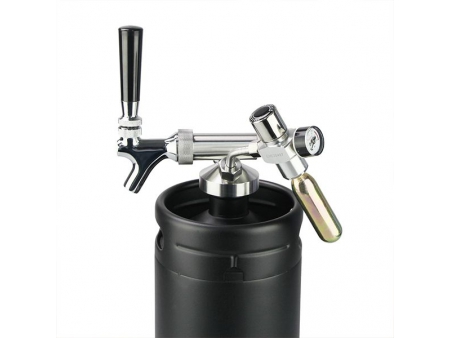

Regulator to pressurize your beer growler keg and dispense your homebrew beer, kombucha, seltzer water, iced tea, soda, other mixed drinks, and any other drink you desire - Medical treatment and Cosmetology
CO2 can make-up water / essential oil, expand pores, more conducive to absorption.
| Model | | | |
| Body Material | 6061-T6 | Hsi59-0.5 | Stainless Steel |
| Surface Treatment | Hard anodizing | Passivating | - |
| Medium | N2, CO₂, HE | ||
| Operating Temperature | -30℃~65℃ | ||
| Adjustable Output Pressure | 0~5psi, 0~10psi, 0~25psi, 0~50psi | ||
| Pressure Accuracy | ±3PSI | ||
| Pressure Display | Indicator dial display or pressure meter display option | ||
| Applicable Cylinders | 12g, 16g, 50g, 74g, 88g | ||
| Inlet Port Thread | 3/8-24UNF, 1/2-20UNF, 5/8-18UNF | ||
| Outlet Port Thread | 1/8NPT, M8*0.75 | ||
| Max. Working Inlet Pressure | 1200psi | 3000psi | 5000psi |
| Burst Pressure (Rupture Disc) | 3000psi | 5000psi | 7000psi |

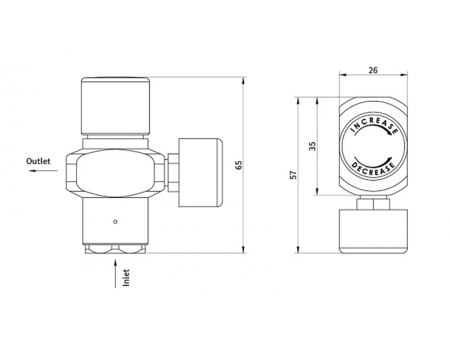

- Overall Dimensions

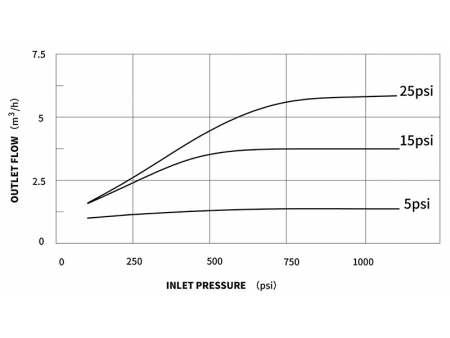

- Flow Characteristic

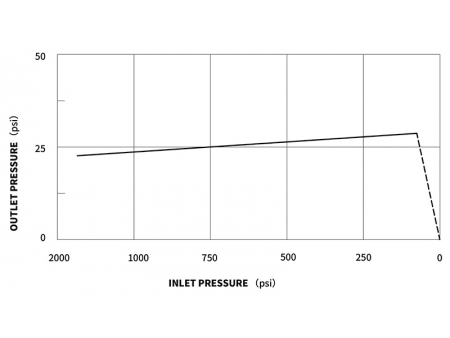

- Pressure Characteristic
