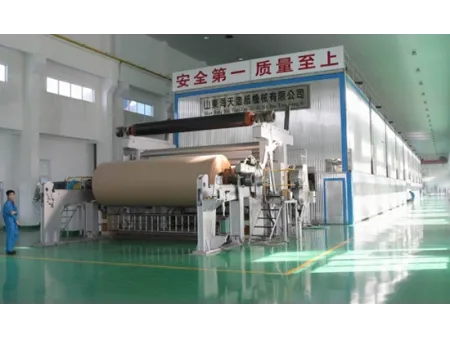

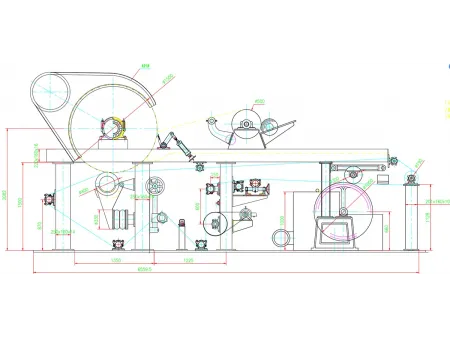

Kraft Paper Machine
Request a Quote
Technical Specifications
| Production name | 1880 kraft paper production line |
| Paper width | 1880mm |
| Paper grades | Kraft paper, fluting paper, liner paper |
| Daily capacity | 20t/day |
| Raw material | Waste cartons |
| Net paper width | 1500-1700mm |
| Basis weight | 60-180g/m3 |
| Design speed | 30-100m/min |
| Operating speed | 30-80m/min |
| Speed regulation mode | Sectional drive, motor frequency control, programmable transmission |
| Pulp distribution method | Cylinder mould (arc plate wire) |
| Press dewatering method | Press roller |
| Drying method | Steam |
| Installation orientation | Right-hand configuration |
| Operators required | 7-8 persons/shift |
