Radial Stacking Conveyor

Radial Stacking Conveyor
Radial Stacking Conveyor
Radial Stacking Conveyor
Request a Quote

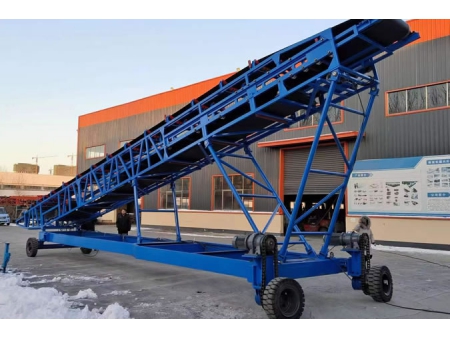

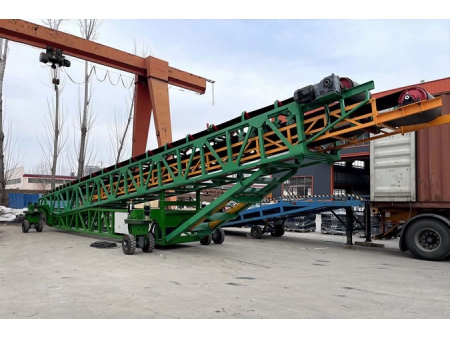

The radial stacking conveyors are engineered to streamline stockpiling and transferring of aggregates, industrial waste and recycled materials. Available in tracked radial conveyor for rough terrain and wheeled radial conveyor for road transport, our radial stockpiling conveyors are equipped with a large hopper that allows materials to be directly loaded onto the conveyor belt. When not in use, the telescopic design of the radial conveyor facilitates easy maneuvering and site-to-site transportation.

Technical Specifications
Model QF-5040SF QF-8048RF QF-8048SF
Operating Power (kW) 55 100 100
Weight (t) 14.5 24.5 24.5
Hopper Volume (m³) 6 10 13
Capacity (t/h) 550 880 880
Transport Dimensions (L×W×H) (m) 2.6×2.3×2.6 19.3×2.9×3.2 19.4×3.2×3.4
