UHF Wireless Conference System Manufacturer

UHF Wireless Conference System

Request a Quote

View All: http://htdzpro.com/3-8-uhf-wireless-conference-system.html

Support 256 microphones in one system with video tracking function and 1000 microphones only for discuss.
Maximum 16 sets system can be installed in one place.
Maximum 5 microphones can be on at the same time, support mode: Limit (1/2/3/4), FIFO (1/2/3/4), Chairman Only.
Support video camera auto-track with video processor.
160x32 dot matrix LCD display system information.
Built-in USB recording module.

Technical Parameter

Dante-enabled Products DCN-2288R (Option).
Support 256 microphones in one system with video tracking function and 1000 microphones only for discuss.
Maximum 16 sets system can be installed in one place Maximum 5 microphones can be on at the same time. support mode: Limit (1/2/3/4)，FIFO (1/2/3/4), Chairman Only.
Support video camera auto-track with video processor. 160x32 dot matrix LCD display system information.
Built-in USB recording module.
Dante-enabled Products DCN-3388R (Option).

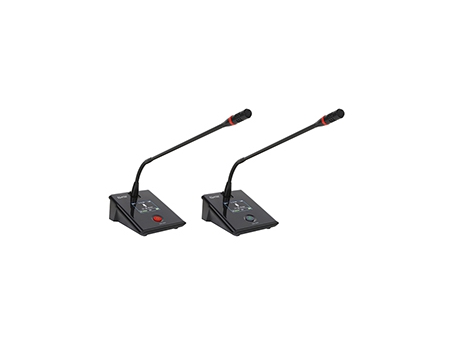

Portable table moving, gooseneck microphone can be pulled out.
LCD display microphone ID, battery level, microphone state, control channel，etc.
Equipped with microphone on/off key and indicator.
Equipped with 3 function keys to set microphone id, control channel, volume level and battery status.
AA battery or rechargeable battery pack for option.

Technical Parameter

Portable table moving, gooseneck microphone can be pulled out.
LCD display microphone ID, battery level, microphone state, control channel, etc.
Equipped with microphone on/off key and indicator.
Equipped with 3 function keys to set microphone id, control channel, volume level and battery status.
Built-in monitoring loudspeaker, earphone jack and directly charging interface.
Equipped with LIP battery

Used for charging microphone rechargeable battery pack.
High efficiency switch mode.
The charging electronics and a charging indicator LED are integrated in each battery.
The charging circuitry checks if a battery is present and controls the charging process receivers per charging.
Charges 16 PCS (HT-2288B/16)/8PCS (HT-2288B/08) batteries per charging (for HT-2288c/d，HT-2288Nc/Nd microphone battery).
Charges 16 PCS (HT-3388B) batteries per charging (for HT- 3388c/d microphone).

Technical Parameter

Receiver

Microphone

Carrier Frequency: 610.00MHz-664.75MHz
Frequency response: 50Hz-15KHz
Power Supply:
HT-2288c/d，HT-2288Nc/Nd: DC3.7V or 3 x AA battery; HT-3388c/d: DC12V

Battery Charger

Ordering Information
