Helical Hydraulic Rotary Actuator

Heavy duty rotary actuator for the rotation of construction machinery

The hydraulic rotary actuators designed for heavy-duty and challenging environments are notable for their reliability under tough conditions, along with high torque, strong load-bearing capacity, compact and versatile design, and diverse mounting options. These actuators are available in various configurations with rotation angles up to 360°, customizable according to customer needs.

The actuators come in versions with or without a counterbalance valve, which allows the actuator to maintain a fixed position during operation and provides protection against reverse loads.

Specifications

LS3 Series Hydraulic Rotary Actuator (Foot Mount)

Model 19 28 47 73 105 140 180 240 430
Drive Torque [Nm]@21MPa 1900 2800 4700 7300 10500 14000 18000 24000 43000
Holding Torque [Nm]@21MPa 4900 6800 12000 18000 26000 35000 46000 59000 110000
Cantilever Moment [Nm] 5200 7100 1190 18400 29500 38800 55900 72900 64400
Straddle Moment (180°)[Nm] 13400 16900 30800 47800 75100 98900 130500 170000 170000
Straddle Moment (360°)[Nm] 19200 24600 45400 71200 111500 146000 197700 256500 170000
Radial Capacity [kg] 1800 2300 3600 5000 6800 8200 10000 11800 11800
Axial Capacity [kg] 1400 1800 2700 3600 4500 5900 6800 8200 8200
Displacement 180° [cc] 492 688 1180 1870 2680 3540 4650 6000 10200
Displacement 360° [cc] 980 1390 2360 3740 5360 7080 9320 12000 20400
Weight 180° [kg] 34.5 50 72.5 110 160 220 280 360 500
Weight 360° [kg] 45.5 63.4 100 140 200 290 370 455 720

LS3 Series Hydraulic Rotary Actuator (Flange Mount)

Model 19 28 47 73 105 140 180 240 430
Drive Torque [Nm]@21MPa 190 2800 4700 7300 10500 14000 18000 24000 43000
Holding Torque [Nm]@21MPa 4900 6800 12000 18000 26000 35000 46000 59000 110000
Cantilever Moment [Nm] 5200 7100 11900 18400 29500 38800 55900 72900 64400
Radial Capacity [kg] 1800 2300 3600 5000 6800 8200 10000 11800 11800
Axial Capacity [kg] 1400 1800 2700 3600 4500 5900 6800 8200 8200
Displacement 180° [cc] 492 688 1180 1870 2680 3540 4650 6000 10200
Displacement 360° [cc] 980 1390 2360 3740 5360 7080 9320 12000 20400
Weight 180° [kg] 34.5 50 72 110 160 220 280 360 500
Weight 360° [kg] 45.5 63.4 100 140 200 290 370 455 720
Applications

Rotating breaking hammers on mine scaler, advancing beams on rock drilling carriages, rotating drilling arms in hydraulic anchor drilling rigs for coal mines, operating onboard drilling rigs in tunnel boring machines, controlling 360° rotation of spray heads in wet spraying machines, functioning in roadway repair machines in coal mines, rotating meat barrels in food machinery mixers, operating drilling rigs on shield machines, and managing drill rod replacements in excavator drill rigs.

Features
  • Engineered for resilience in heavy-duty and challenging conditions.
  • High torque and load-bearing capabilities for demanding applications.
  • Versatile installation options, including base, flange, and rail mounting.
Output Type
  • Q - Single Flange Output
  • L - Double Flange Output
Mounting Options

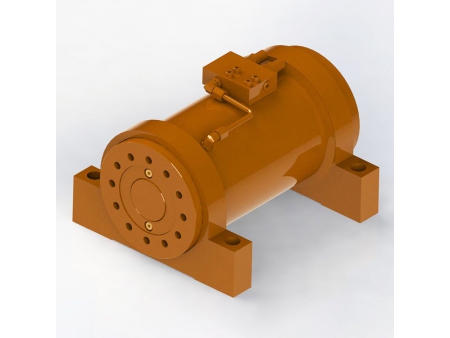

  • D - Foot Mounting

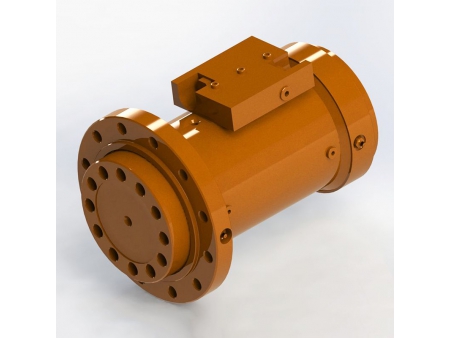

  • F - Front Flange Mounting
  • R - Rear Flange Mounting
  • G - Rail Mounting
Full Specifications & Additional Information

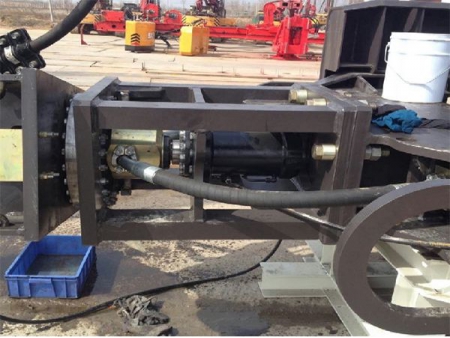

Rotary Actuator used in Engineering Machinery

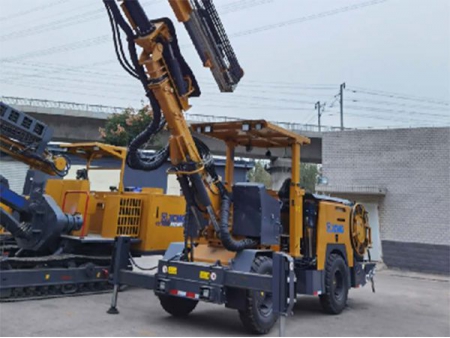

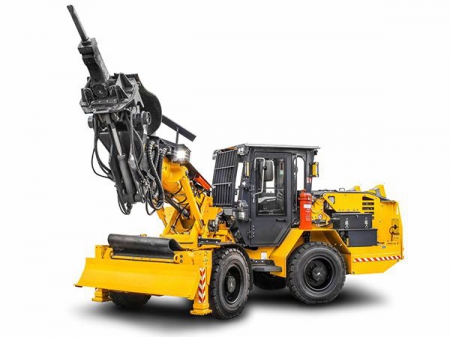

Rock drilling carriages

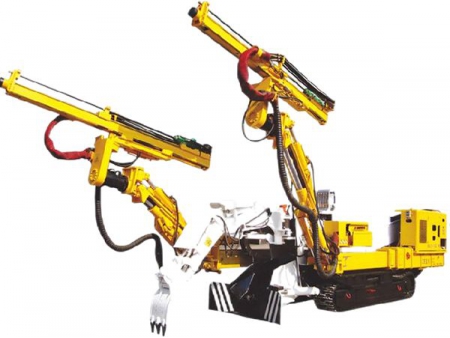

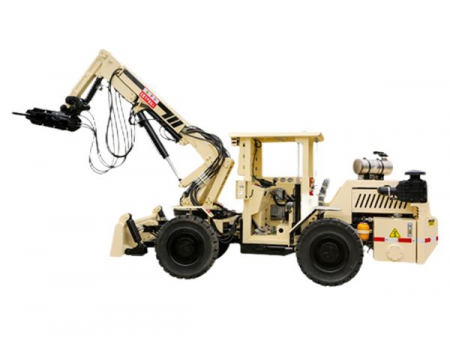

Mine scaler

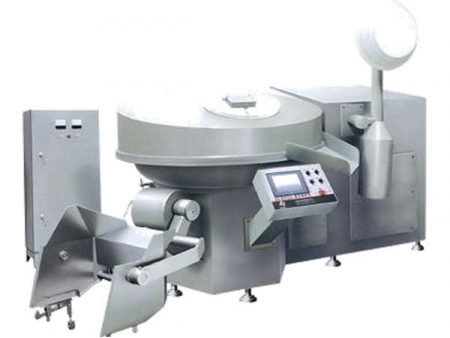

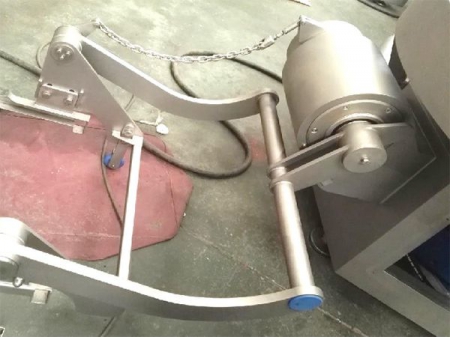

Food mixers

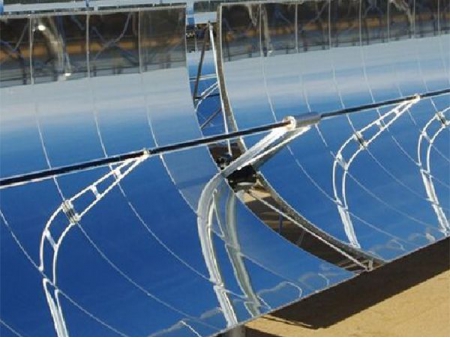

Solar power plant

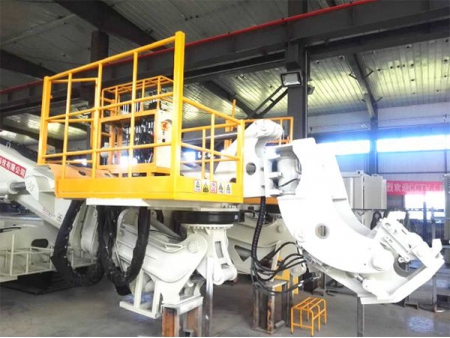

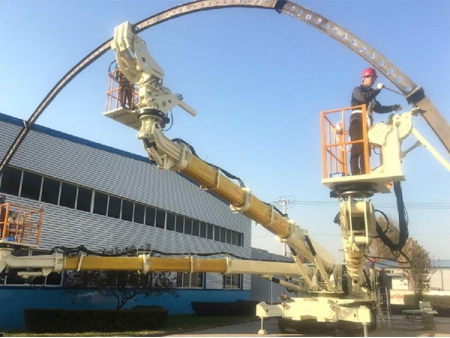

Arch structure installation equipment

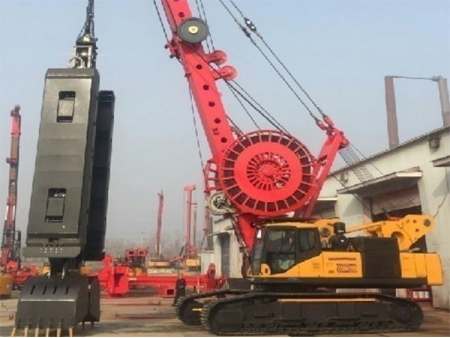

Continuous wall grab

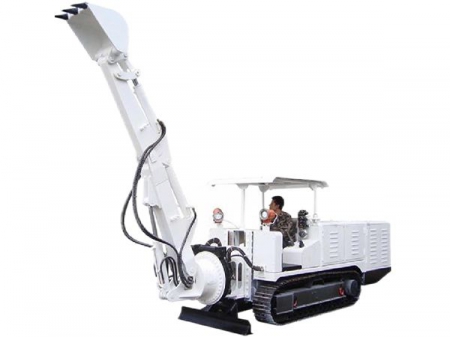

Road repair machine
Three-way stacker (forklift attachment)
What are the advantages of helical hydraulic rotary actuators in heavy-duty applications?
Our heavy-duty-specified model is specially designed for tough and demanding environments, these actuators are known for their flexibility in installation, high load-bearing capacity, and significant torque, ensuring efficient operation in challenging conditions.
How can helical hydraulic rotary actuators be applied in motion controls in heavy machinery?
In heavy machinery, the LS3 series actuators are essential for applications that require precise motion control, such as in spraying equipment, drilling rigs, mine scaler, concrete discharge systems, etc.
