Steel Tube / Pipe Punching Machine
Request a Quote
Steel Tube / Pipe Punching Machine
We are a professional manufacturer for round / square / rectangular tube pipe punching machines. Our product can be specially designed according to the customer needs.
Main Features
- Servo feeding, high precision
- Hole position can be preset on HMI
- Hydraulic driven, low noise
- PLC control, HMI operation, full automatic
Technical Parameters
- Applicable tube/pipe materialIron, copper, aluminum
- Square/rectangular tube/pipe sizeAs per requirement
- Tube/pipe wall thicknessMax. 2mm (or customized)
- Max. tube/pipe lengthAs per requirement
- Min. distance between hole centersRound hole: 30mm, square hole: 35mm.
- Accuracy of hole position±0.3mm
- Punching speed4 seconds per hole

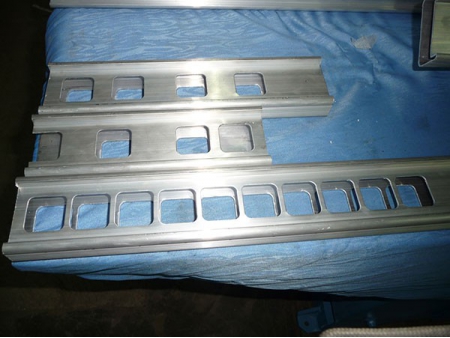

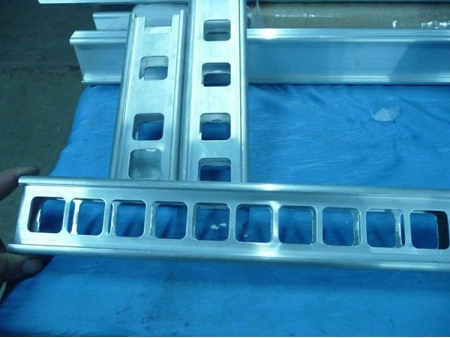

Punching tooling is equipped to punch holes on aluminum pipes or aluminum profiles:
This is another filter core machine that produces expanded mesh filter cores.
- Max. pipe length1600mm (customized)
- Suitable carbon steel pipe diameterMax. 54mm (customized)
- Suitable carbon steel pipe wall thicknessMax. 2.5mm (customized)
- The space between tube end and the latest holeMin. 50mm
- Hole positioning precision±0.2mm
- Working efficiency1~3 seconds per hole
- Operation methodAutomatic / manual
- Workpiece loading methodmanual
- Control methodPLC 5.7" HMI
- Clamping powerHydraulic
- Punching powerHydraulic
- Hydraulic pressure7MPa
- Punching force12tons

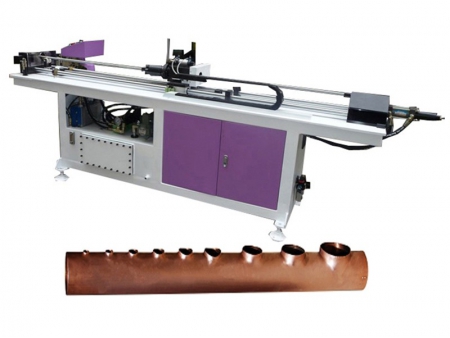

There is stainless steel pipe flange hole punching machine which is capable of punching collar holes:
We can also customize special collar hole punching machine according to customer needs:
