Condenser Header Pipe Punching Machine
The hydraulic system adopts big-flow plug-in valves, high speed, stable running.

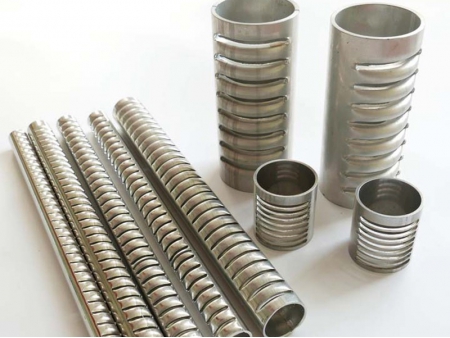

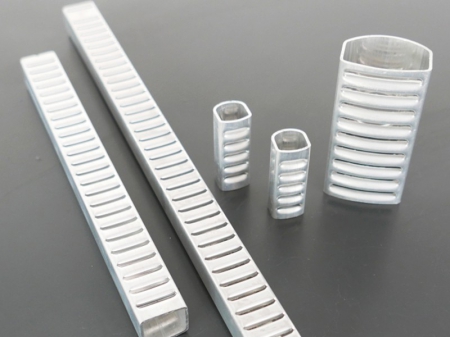

This condenser header pipe punching machine is PLC control, HMI operation. Manually inserting aluminum pipe onto core axis, pressing down start button, the machine will automatically position, insert core axis, clamp, lubricate, punch, shock, draw core axis, raise and automatic release finished header pipe.
Light curtain protection system ensures safe operation.
Technical Data
- Machine codeJLG-Y900
- Max. working force60T
- Pipe quantity can be produced one timeOne
- Suitable materialAluminum or copper
- Suitable pipe diameter and wall thicknessΦ30mm x (1.0~1.6)mm
- Suitable pipe effective length100~600mm
- Pierced slot width and tolerance1.0~3 ± 0.03 mm
- Pierced slot length and tolerance16~36 ± 0.03mm
- Center distance between slots and tolerance5~12 ± 0.05mm
- Production speedAbout 20 seconds per piece
- Die changing speedAbout 30 minutes
- Hydraulic pressure8~21MPa
- Pneumatic pressure0.5~0.8MPa
- Hydraulic oilISO VG32 for winter; ISO VG46 for Summer
- Lubricant oilISO VG22-32
- Total motor power7.2kW
- Machine dimension2800 x 2100 x 2750mm
- Machine weightTotal 4200kg
