Zirconia Fused Alumina

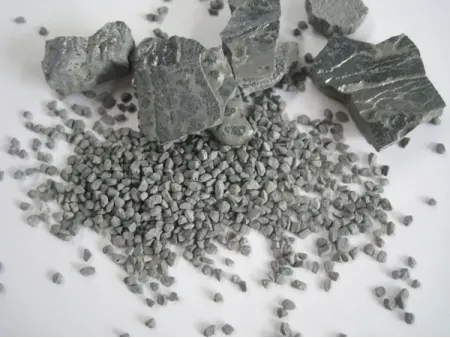

Zirconia fused alumina is produced by melting aluminum oxide and zirconium oxide in an electric arc furnace at temperatures above 2000°C. It typically contains 10%-40% zirconium dioxide (ZrO2) and exhibits high toughness, dense structure, high strength, and good thermal stability, usually appearing in gray-brown color.

Features

  • High hardness: zirconia fused alumina boasts exceptional hardness, often exceeding 9 on the Mohs scale, making it ideal for precision and high-efficiency abrasive machining.
  • Excellent wear resistance: This abrasive material maintains long-lasting cutting and grinding efficiency while reducing tool wear and extending equipment lifespan due to its outstanding wear resistance.
  • Low thermal expansion: With a low coefficient of thermal expansion, zirconia fused alumina demonstrates good stability and resistance to deformation under high-temperature conditions.

Applications

Depending on the ZrO2 content, it comes in two variants: zirconia fused alumina 25 (ZrO2 25%) and zirconia fused alumina 40 (ZrO2 40%). zirconia fused alumina 40 exhibits better self-sharpening properties than zirconia fused alumina 25, suitable for cutting wheels, coated abrasives, etc. zirconia fused alumina 25 is ideal for heavy-duty grinding.

  • Zirconia fused alumina micro powders are primarily used in manufacturing polishing compounds, polishing wax, sandpaper, etc.
  • It serves as a premium refractory material for manufacturing high-performance sliding nozzles, immersion nozzles, glass melting kiln bricks, and high-end building materials.
  • With excellent resistance to molten metal corrosion, it acts as a superior abrasive, providing efficient grinding for steel, cast iron, heat-resistant steel, and various alloy materials. It can be used to produce high-performance heavy-duty zirconia fused alumina grinding wheels, rough grinding wheels, cutting discs, rail grinding, high-speed sand belts, etc.

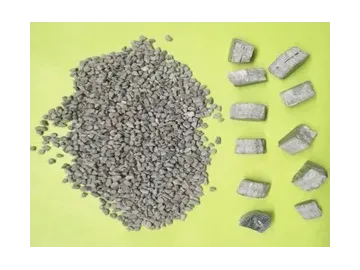

Available Grain Sizes

Fraction 0-1mm,1-3mm, 3-5mm, 5-8mm
Fine Powder 100#-0,200#-0,320#-0
Grit 4#, 5#, 6#, 8#,10#, 12#, 14#, 16#, 20#, 22#, 24#, 30#, 36#, 40#, 46#, 54#, 60#, 70#, 80#, 90#, 100#, 120#, 150#, 180#, 220#
Micro Powder 240#, 280#, 320#, 360#, 400#, 500#, 600#, 800#, 1000#, 1200#, 1500#, 2000#, 3000#

Typical Physical Propertie

Items ZA40% ZA25%
Color gray
Specific Gravity 4.65 cm3/g 4.35 cm3/g
Knoop Hardness 1620kg/mm2 1780kg/mm2
Melting Point 1900℃ 1950℃
Crystal grain size ≤30µm
Loose Pack Density 1.88-2.35cm3/g 2.15-2.45cm3/g
Chemical Species Amphoteric
Reaction with acid and alkali No reaction
Reaction with carbon Forms carbide when reaching 1650℃ (contact with carbon)
Mohs Hardness 9.0
Specific Heat Capacity 0.2205cal/g.℃ (50-500℃)
Heat Transfer Coefficient 0.2718 cal/cm2.sec.℃
Thermal Expansion/Linear Coefficient 6.82x10-6 (100-700℃)

Typical Chemical Analysis

Items AlO3 ZrO2 TiO2 Fe2O3 SiO2
ZA25 68-72 24-30 1.0max 0.5max 0.3max
ZA40 55-57 35-44 1.0max 0.4max 0.3max

Production Flow

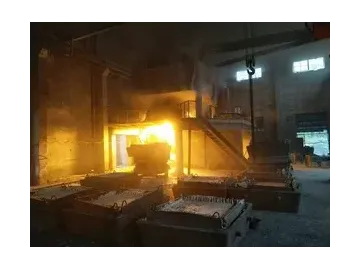

  • Smelting
  • Rapid cooling of steel slabs

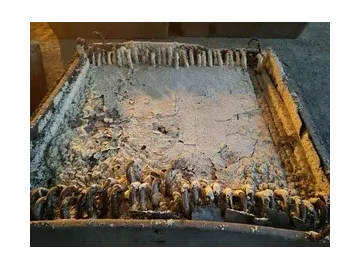

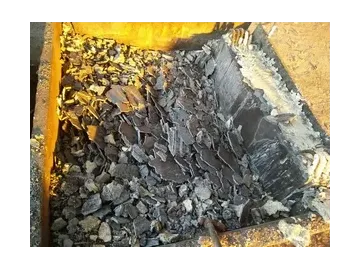

  • Cooled zirconia fused alumina blocks

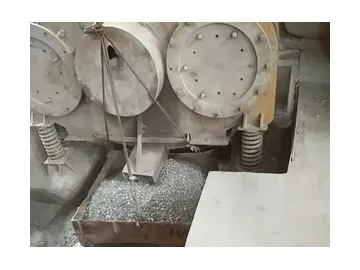

  • Crushing and sand making
  • Finished blocks and sand products

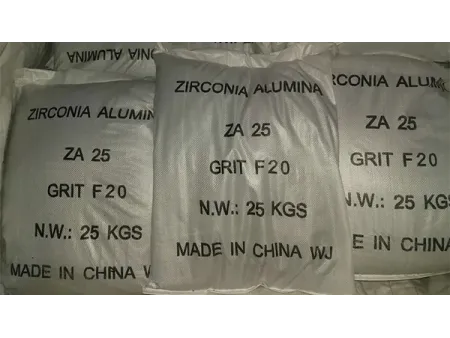

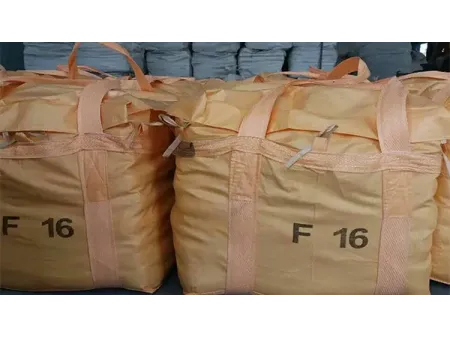

Packaging

  • 25KG Small bags
  • Small bags Bulk bags
