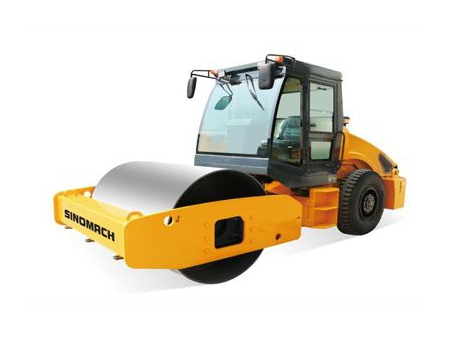

Single Drum Vibratory Roller GYS222
Request a Quote
- GYS222 single drum vibratory roller provides additional compaction by vibrating the roller drum at dual frequency while offering two vibration amplitudes. This extra compaction force allows the vibratory roll to compact tough roads.
- Hydraulic cylinder comes with combination seal for reliable leak-free performance.
- Driving cab is designed with operator safety and comfort in mind . Adjustable cab seat comes with a suspension system.
- High-precision soil density gauge allows vibratory roller driver to accurately control the density of soil being compacted.
Consulting Products Information
Specifications:
Model | GYS222 |
Length×Width×Height(mm) | 6503×2390×3250 |
Operating weight (Kg) | 22000 |
Drum width (mm) | 2150 |
Static linear pressure (N/cm) | 509 |
Vibration frequency (Hz) | 28/32 |
Centrifugal force(KN) | 390/270 |
Traveling speed(km/h) | |
Forward | 2.5/4.88/10.3 |
Reverse | 2.47/4.9 |
Diesel engine | WEICHAI WP6G190E301 |
Rated output(KW) | 140 |
