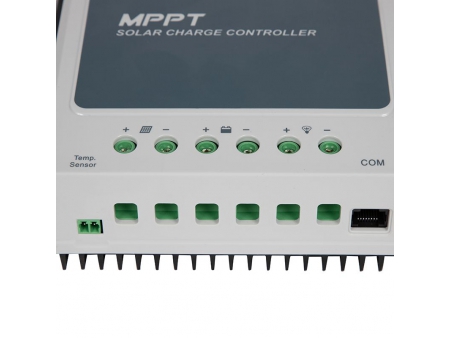

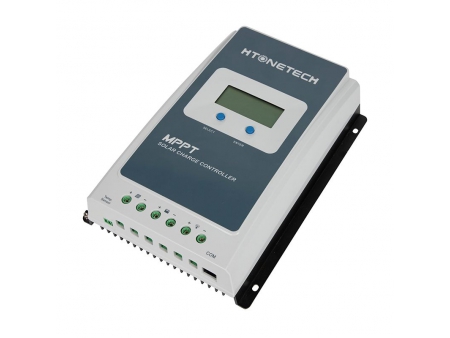

12V/24V Solar Charge Controller (10A-100A)
Request a Quote
The solar charge controller (10A-100A) has been designed to operate utilizing the maximum power point tracking (MPPT) control algorithm, allowing for quick and efficient tracking of the maximum power point of a photovoltaic array even in varied environmental conditions. In addition, this series is particularly well-suited for applications such as RV, communication base stations, residential systems, and field monitoring due to its ability to support lead-acid and lithium batteries coupled with its in-built protection functionalities.
Features
- Ensuring a MPPT tracking efficiency of 99.5% and a charge conversion efficiency of up to 98%.
- We offer complete solutions for lead-acid batteries and other battery types.
- Charging current and power limitation function.
- Automatic power reduction feature for high temperature charging.
- Rely on the industry-standard Modbus protocol for RS-485 communication.
- Real-time electricity statistics.
Technical Parameters
Model | Tracer1206AN | Tracer2206AN | Tracer1210AN | Tracer2210AN | Tracer3210AN | Tracer4210AN |
Nominal system voltage | 12/24VDC/auto | |||||
Battery type | Lead-acid (Sealed/Gel/Flooded)/Lithium (LiFePO4/Li(NiCoMn)O2)/User-defined | |||||
Battery input voltage range | 8~32V | |||||
Rated charge current | 10A | 20A | 10A | 20A | 30A | 40A |
Rated discharge current | 10A | 20A | 10A | 20A | 30A | 40A |
Rated charge power | 130W/12V 260W/24V | 260W/12V 520W/24V | 130W/12V 260W/24V | 260W/12V 520W/24V | 390W/12V 780W/24V | 520W/12V 1040W/24V |
MPPT conversion efficiency | ≤98.09% | |||||
MPPT tracking efficiency | ≥99.5% | |||||
Max. PV open circuit voltage | 60V(at minimum operating environment temperature); 46V(25℃) | 100V(at minimum operating environment temperature); 92V(25℃) | ||||
MPP voltage range | (Battery voltage 2V)~36V | (Battery voltage 2V)~72V | ||||
Equalization voltage | Sealed:14.6V; Flooded:14.8V; User-defined:9-17V | |||||
Boost voltage | Sealed:14.4V; Gel:14.2V; Flooded:14.6V; LiFePO4(4S):14.4V; Li(NiCoMn)O2(3S):12.4V; User-defined:9-17V | |||||
Float voltage | Gel/Sealed/Flooded:13.8V; LiFePO4(4S):13.6V; Li(NiCoMn)O2(3S):11.8V; User-defined:9-17V | |||||
Low voltage reconnect voltage | Gel/Sealed/Flooded:12.6V; LiFePO4(4S):12.4V; Li(NiCoMn)O2(3S):10.4V; User-defined:9-17V | |||||
Low voltage disconnect voltage | Gel/Sealed/Flooded:11.1V; LiFePO4(4S):11.0V; Li(NiCoMn)O2(3S):9.2V; User-defined:9-17V | |||||
Self-consumption | ≤12mA | |||||
Temperature compensation | -3mV/℃/2V(default); lithium batteries do not require temperature compensation | |||||
Relative humidity | ≤95%, no condensation | |||||
Enclosure | IP30 | |||||
Communication interface | RS485(RJ45) | |||||
Grounding | Common negative grounding | |||||
Operating temperature | -25℃~ 45℃ (full load operation) | |||||
Dimensions(L×W×H) (mm) | 172×139×44 | 220×154×52 | 172×139×44 | 220×154×52 | 228×164×55 | 252×180×63 |
Net weight | 0.57kg | 0.94kg | 0.57kg | 0.94kg | 1.26kg | 1.65kg |
