Battery Charge Discharge Test Chamber
The constant temperature and humidity test chamber is most often used in the battery capacity tests of various cells, rechargeable batteries, etc.
Technical Parameters of Constant Temperature and Humidity Test Chamber
Model | |||
Internal size (mm) | W | 600 | |
H | 500 | ||
D | 600 | ||
External size (mm) | W | 830 | |
H | 2023 | ||
D | 2139 | ||
Temperature range | -20°C to 150°C(or 180°C) | -40°C to 150°C(or 180°C) | |

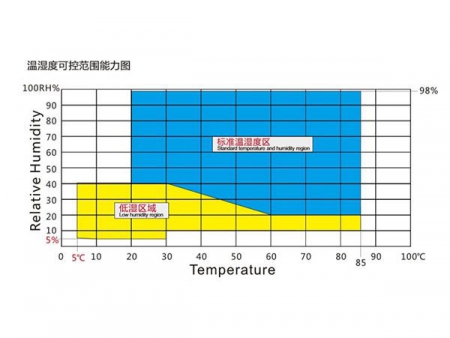

Humidity range | 20%RH to 98%RH/(20 to 85°C) | ||
Temperature fluctuation | ±0.5°C | ||
Temperature deviation | ±1.5°C | ||
Humidity deviation | ±3.0%RH (when humidity≧75%); ±5.0%RH(when≦75%) | ||
Heat-up time | 20°C to 150°C | 20°C to 150°C | |
≦50MIN | ≦50MIN | ||
Cool-down time | 20°C to -20°C | 20°C to -40°C | |
≦60MIN | ≦70MIN | ||
Temperature and humidity adjustment method | Balancing method | ||
Environment temperature | 5°C to 35°C | ||
Materials | Housing | Double-side galvanized sheet, plastic coated | |
Internal surface | SUS304/2B stainless steel plates | ||
Insulation | PU foam fiberboards | ||
Regulator | Heater | Nichrome fin heater | |
Humidifier | Stainless steel heater, water dish | ||
Fan | Centrifugal fan | ||

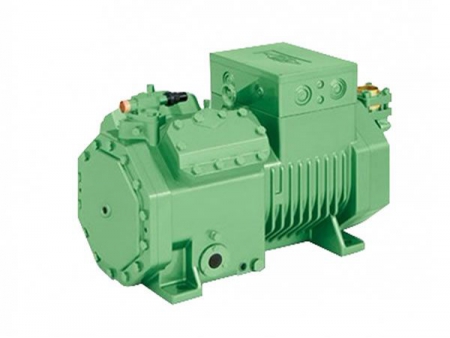

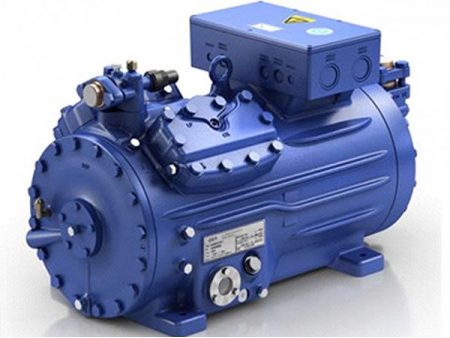

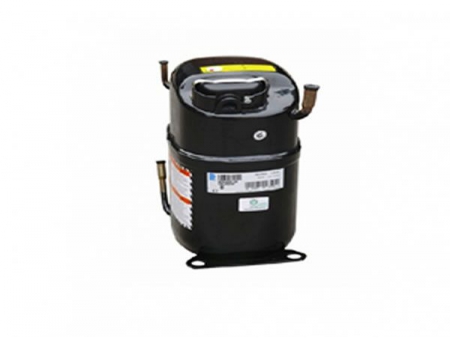

Refrigerator | Mechanical compressor | ||
Refrigerant | R404a | ||
Cooling method | Mechanical compression (Air cooling or water cooling) | ||

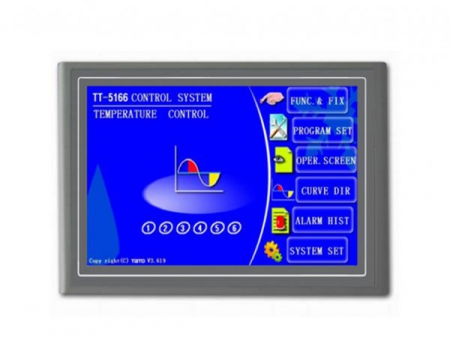

Controller | Display | 7.0 inch, TFT color LCD display | |

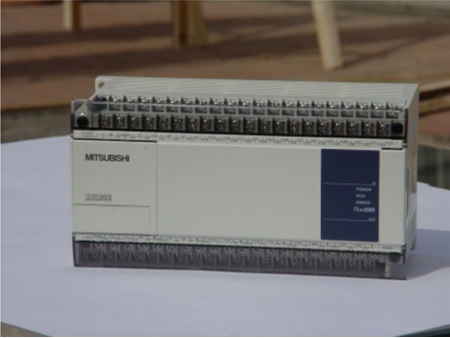

Control method | Touchscreen micro-computer controller, integral windup PID | ||
Auxiliary functions | Malfunction alarm and possible solution, power-off protection, temperature protection, calendar timing, automatic diagnosis | ||
Water supply method | Water pump | ||
Water tank | Portable water tank | ||
Water | Electrical resistivity ≦500Ωm | ||
Power supply | AC380V±10%V 50HZ |
Notes:
1. The FNT series products have no humidity function.
2. The temperature data are measured at 25°C and with no sample.
3. The fluctuation parameter is tested in accordance with GB/T5170.2-1996 standard.
4. The convex part is not counted in the chamber dimensions.
GB11158 | High Temperature Technical Condition |
GB10589-89 | Low High Temperature Technical Condition |
GB10592-89 | High/Low Temperature Technical Condition |
GB/T10586-89 | Technical Conditions for Humidity Testing Room |
GB/T2423.1-2008 | Low Temperature Test Method |
GB/T2423.2-2008 | Temperature Test Method |
GB/T2423.3-2006 | Constant Thermal Humidity Test Method |
GB/T2423.4-2008 | Alternating Thermal Humidity Test Method |
GB/T2423.22-2002 | Temperature Weather Test |
IEC60068-2-1.1990 | Low Temperature Testing Method |
IEC60068-2-2.1974 | High Temperature Testing Method |
GJB150.3 | High Temperature Test |
GJB150.4 | Low Temperature Test |
GJB150.9 | Damp Heat Test |

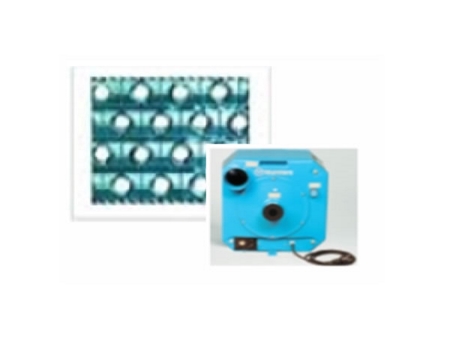

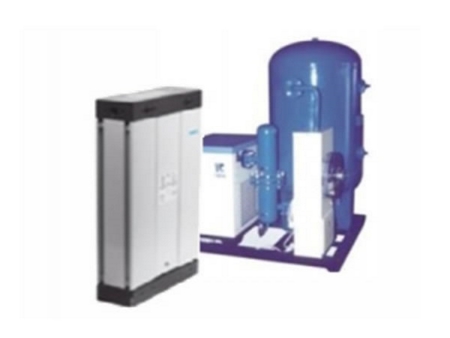

1. Rotary dehumidifier/ polymeric membrane, with a lowest temperature/ humidity content of 5℃/5 %RH.
2. Built-in tempered glass door, easy to move

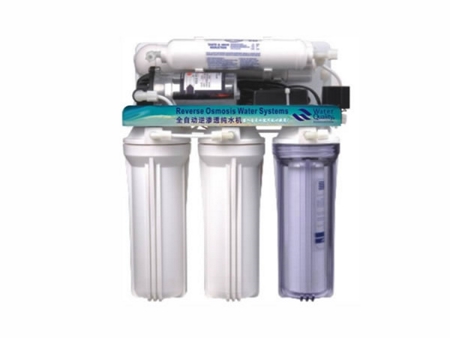

3. Water purification system, with automatic replenishment function

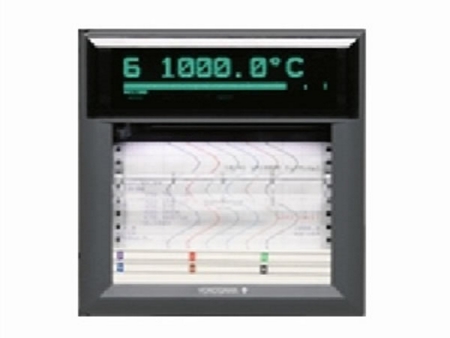

4. Recorder, save and print testing data

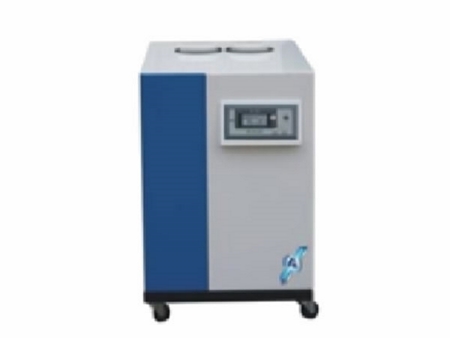

5. Ultrasonic humidifier/ high-pressure spray humidifier, providing continuous high humidity under extreme temperature
6. Dry air blow system, anti-condensation

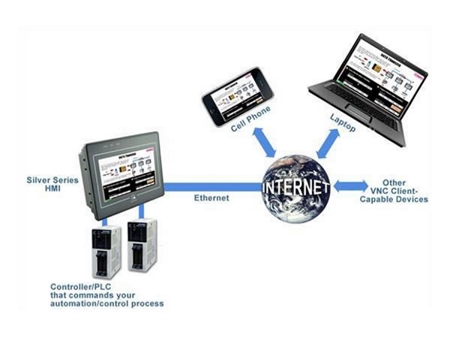

7. Remote monitoring function, cellphone and computer supportive
