Solar Panels
High-efficiency monocrystalline silicon single-sided half-cell solar panel
IEC61215(2016), IEC61730(2016)
ISO9001:2015: quality management systems (QMS)
ISO14001:2015: environmental management systems (EMS)
ISO45001:2018: occupational health and safety management systems (OHSMS)
This solar photovoltaic module is a high-performance monocrystalline silicon single-sided half-cell panel that boasts an impressive conversion efficiency of more than 20%, with a positive tolerance of up to 3%.
- Enjoy 15 years of worry-free comfort with our comprehensive material and process warranty.
- An outstanding warranty of 25 years with a linear power attenuation rate of only 0.55%.

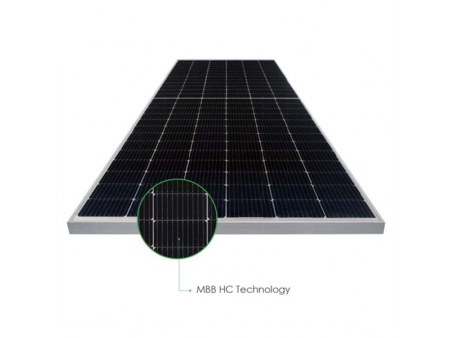

- Multi-busbar technology
Enhanced light utilization and improved current collection capability significantly boost both the power output and reliability of the product. - Anti-hotspot capability
Optimizing the circuit design and current working conditions allows for more precise temperature coefficient and anti-hotspot characteristics. - PID resistance guarantee
Optimizing battery production technology and material control help minimize the likelihood of PID, a phenomenon that causes attenuation. - Adaptability to harsh environments
Our solar modules have obtained certification for passing third-party tests for high salt spray and high ammonia corrosion. - Load capacity
The overall module is certified for a wind load of 2400Pa and a snow load of 5400Pa. - Product certification
Components have been certified by UL, TUV, CE, and CQC.
Mechanical Parameters
- Cell type: P-type monocrystalline solar cells
- No. of cells: 108(2×54)
- Module dimensions: 1722×1134×30mm
- Weight: 22kg
- Front glass: 3.2 mm, anti-reflection coating, high transmission, low iron, tempered glass
- Frame: Anodized aluminium alloy
- Junction box: IP68 rated
- Output cables: TÜV 1×4.0mm2
( ):400mm, (-):200mm or customized length
Electrical Parameters
Module model | JKM395M-54HL4 | JKM40OM-54HL4 | JKM405M-54HL4 | JKM410M-54HL4 | JKM415M-54HL4 | |||||||||
STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | |||||
Max. power (Pmax) | 395wp | 294wp | 40Owp | 298wp | 40Swp | 301wp | 410Wp | 305Wp | 415wp | 309wp | ||||
Max. power voltage (Vmp) | 30.32V | 28.26V | 30.42V | 28.42V | 30.52V | 28.56V | 30.62V | 28.72V | 30.79V | 28.88V | ||||
Max. power current (Imp) | 13.03A10.4DA | 13.15A | 10.47A | 13.27A | 10.55A | 13.39A | 10.62A | 13.48A | 10.69A | |||||
Open circuit voltage (Voc) | 36.90V | 34.83V | 36.98v | 34.9ov | 37.06v | 34.98v | 37.14V35.05v | 37.31v35.21v | ||||||
Short circuit current (lsc) | 13.71A | 11.07A | 13.78A | 11.13A | 13.85A | 11.19A | 13.92A11.24A | 14.01A11.32A | ||||||
Module efficiency (%) | 20.23% | 20.48% | 20.74% | 21.00% | 21.25% | |||||||||
Operating temperature (℃) | 40℃~ 85℃ | |||||||||||||
Max. system voltage | 1000/1 500VDC(IEC) | |||||||||||||
Max. series fuse rating | 25A | |||||||||||||
Power tolerance | 0~ 3% | |||||||||||||
Temperature coefficient of Pmax | -0.35%/C | |||||||||||||
Temperature coefficient of Voc | -0.28%/C | |||||||||||||
Temperature coefficient of Isc | 0.048%/℃ | |||||||||||||
Nominal operating cell temperature (NOCT) | 45±2℃ |
Standard test conditions (STC): Solar Irradiance: 1000W/m2, Cell Temperature: 25°C, Air Mass: 1.5
Nominal Operating Cell Temperature (NOCT): Solar Irradiance: 800W/m2, Ambient Temperature: 20°C, Air Mass: 1.5, Wind Speed: 1 m/s
* The power measurement error of the solar panel is /-3%.
Mechanical Parameters
- Cell type: P-type monocrystalline solar cells
- No. of cells: 120(6×20)
- Module dimensions: 1903×1134x30mm
- Weight: 24.2kg
- Front glass: 3.2 mm, anti-reflection coating, high transmission, low iron, tempered glass
- Frame: Anodized aluminium alloy
- Junction box: IP67 rated
- Output cables: TÜV 1×4.0mm2
( ):400mm,(-):200mm or customized length
Electrical Parameters
Module model | JKM450M-60HL4 | JKM455M-60HL4 | JKM46QM-60HL4 | JKM465M-6QHL4 | JKM47OM-60HL4 | ||||||||
STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | ||||
Max. power (Pmax) | 450Wp | 335wp | 455Wp | 339wp | 4&0Wp | 342wp | 465wp | 346wp | 470Wp | 350Wp | |||
Max. power voltage (Vmp) | 33.91V | 31.73V | 34.06V | 31.91V | 34.20V | 32.07V | 34.37V | 32.12V | 34.56V | 32.32V | |||
Max. power current (Imp) | 13.27A | 10.55A | 13.36A | 10.61A | 13.45A | 10.67A | 13.53A | 10.77A | 13.60A | 1082A | |||
Open circuit voltage (Voc) | 41.18V | 38.87v | 41.33V | 39.01v | 41.48V | 39.15V | 41.63V | 39.29v | 41.78V | 39.43v | |||
Short circuit current (lsc) | 13.85A | 11.19A | 13.934 | 11.25A | 14.01A | 11.32A | 14.09A | 11.38A | 14.17A | 11.44A | |||
Module efficiency (%) | 20.85% | 21.08% | 21.32% | 21.55% | 21.78% | ||||||||
Operating temperature (C) | -4O℃~ 85℃ | ||||||||||||
Max. system voltage | 1000/1500VDC (IEC) | ||||||||||||
Max. series fuse rating | 25A | ||||||||||||
Power tolerance | 0~ 3% | ||||||||||||
Temperature coefficient of Pmax | -0.35%/℃ | ||||||||||||
Temperature coefficient of Voc | -0.28%/℃ | ||||||||||||
Temperature coefficient of Isc | 0.048%/"℃ | ||||||||||||
Nominal operating cell temperature (NOCT) | 45±2℃ |
Standard test conditions (STC): Solar Irradiance: 1000W/m2, Cell Temperature: 25°C, Air Mass: 1.5
Nominal Operating Cell Temperature (NOCT): Solar Irradiance: 800W/m2, Ambient Temperature: 20°C, Air Mass: 1.5, Wind Speed: 1 m/s
* The power measurement error of the solar panel is /-3%.
Mechanical Parameters
- Cell type: P-type monocrystalline solar cells
- No. of cells: 144(6×24)
- Module dimensions: 2278×1134×35mm
- Weight: 28kg
- Front glass: 3.2 mm, anti-reflection coating, high transmission, low iron, tempered glass
- Frame: Anodized aluminium alloy
- Junction box: IP68 rated
- Output cables: TÜV 1×4.0mm2
( ):300mm,(-):200mm or customized length
Electrical Parameters
Module model | JKM540M-72HL4 | JKM545M-72HL4 | JKM550M-72HL4 | JKM555M-72HL4 | JKM560M-72HL4 | |||||
STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | |
Max. power (Pmax) | 540Wp | 402Wp | 545Wp | 405Wp | 550Wp | 409Wp | 555Wp | 413Wp | 560Wp | 417Wp |
Max. power voltage (Vmp) | 40.70V | 38.08V | 40.80V | 38.25V | 40.90V | 38.42V | 40.99V | 38.59V | 41.09V | 38.69V |
Max. power current (Imp) | 13.27A | 10.55A | 13.36A | 10.60A | 13.45A | 10.65A | 13.54A | 10.70A | 13.63A | 10.77A |
Open circuit voltage (Voc) | 49.42V | 46.65V | 49.52V | 46.74V | 49.62V | 46.84V | 49.72V | 46.93V | 49.82V | 47.02V |
Short circuit current (lsc) | 13.85A | 11.19A | 13.94A | 11.26A | 14.03A | 11.33A | 14.12A | 11.40A | 14.21A | 11.48A |
Module efficiency (%) | 20.90% | 21.10% | 21.29% | 21.48% | 21.68% | |||||
Operating temperature (℃) | -40℃~ 85℃ | |||||||||
Max. system voltage | 1000/1500VDC (IEC) | |||||||||
Max. series fuse rating | 25A | |||||||||
Power tolerance | 0~ 3% | |||||||||
Temperature coefficient of Pmax | -0.35%/ ℃ | |||||||||
Temperature coefficient of Voc | -0.28%/ ℃ | |||||||||
Temperature coefficient of Isc | 0.048%/ ℃ | |||||||||
Nominal operating cell temperature (NOCT) | 45±2 ℃ |
Standard test conditions (STC): Solar Irradiance: 1000W/m2, Cell Temperature: 25°C, Air Mass: 1.5 Nominal Operating Cell Temperature (NOCT): Solar Irradiance: 800W/m2, Ambient Temperature: 20°C, Air Mass: 1.5, Wind Speed: 1 m/s * The power measurement error of the solar panel is /-3%.
