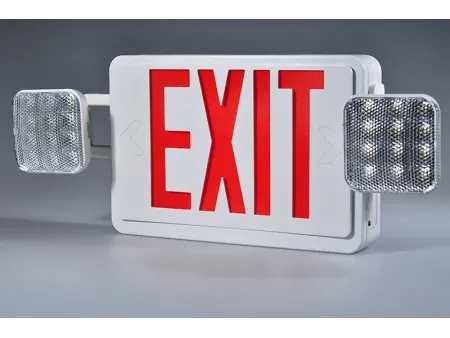

JLEC2BCW Bi-Color Emergency Exit Sign Combo with LED Heads

Request a Quote

Website: http://ft-emergencylight.com/4-1-bi-color-emergency-exit-sign-combo-with-led-heads.html

Features a flame-retardant ABS housing with a UL 94V-0 rating for enhanced safety.
Supports easy installation and is suitable for both single-face and double-face configurations.

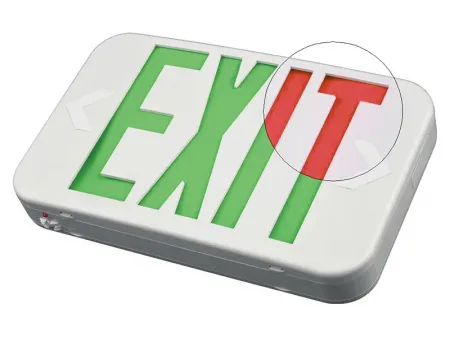

The 6-inch high-visibility letters are available in red or green and support SALIDA panels for Spanish-speaking environments.
Removable directional arrows are included for flexible exit route indication.
It uses a universal junction box mounting pattern, compatible with standard installations.
Dual voltage operation is supported with 120V/277VAC input for compatibility with North American standards.

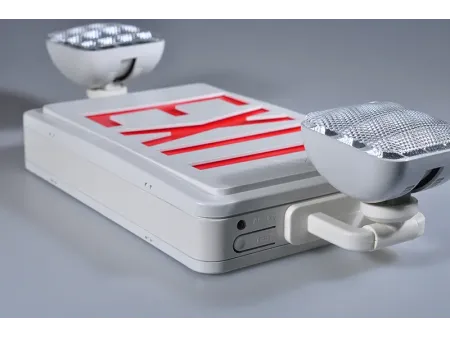

Equipped with two LED heads, each containing 8 ultra-bright 2835 SMD LEDs for effective emergency illumination.
A built-in 3.6V 1200mAh nickel-metal hydride battery provides at least 90 minutes of emergency runtime.
The battery fully recharges in 24 hours, ensuring continuous standby readiness.
A test switch and charge indicator light allow for quick maintenance checks.
Designed for indoor use, with a working temperature range of 0-40°C and moisture-resistant performance.

Specifications

Model	JLEC2BCW
Color	White/Red&Green EXIT Letter
Material	ABS
Voltage	120/277 Volts
Battery	3.6V 1200mAh Ni-MH
Wattage	3.5W
Type of Bulb	LED
Emergency Time	90mins
Mounting	Wall mounted
Certifications	UL&cUL, CEC, DOE, FCC, CB
Weather Rating	Listed for damp location
Product Weight	4.4lbs/2kgs
Product Size	50.4×11.1×20.2cm
Remarks	BI-COLOR 2 in 1, red default symbol & green EXIT (2×8 LEDs) Sign SALIDA available
Ordering and Packing Information
MOQ	1000pcs
Lead Time	35 days
Sample Delivery Time	3~10 days
Packing	White box
Carton Size (L×W×H)	50×44×38.5cm (19.69×17.32×15.16 inches) /6pcs
Carton CBM	0.085m³
Quantity per Carton	6pcs
Gross Weight	11kgs/ctn
Net Weight	8.4kgs/ctn
Container Loading Quantity	1×20'	1×40'	1×40' HQ
	1941pcs	4059pcs	4729pcs
