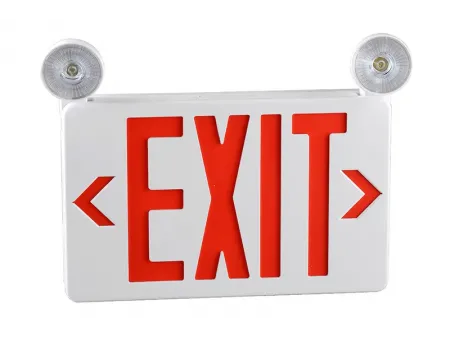

JLECB2GW/JLECB2RW Ultra Slim LED Exit Sign/Emergency Light Combo

Request a Quote

Website: http://ft-emergencylight.com/4-3-ultra-slim-led-exit-sign-emergency-light-combo.html

This ultra slim exit sign and emergency light combo is designed for space-conscious applications with a sleek, compact profile.

The housing is made of flame-retardant ABS material with a UL 94V-0 rating for added safety.

Features 6-inch high-visibility red or green LED letters for clear directional guidance.

Compatible with SALIDA panels, meeting signage requirements for Spanish-speaking environments.

The sign supports both single-face and double-face display configurations for versatile installation.

Removable directional arrow plates allow easy adaptation to different evacuation layouts.

A universal mounting design supports junction box installation on ceilings, walls, or end mounts.

Operates on 120V/277VAC dual voltage, suitable for various North American installations.

Equipped with two 1W SMT LED heads to provide bright emergency lighting during power outages.

A built-in 3.6V 1000mAh nickel-cadmium battery ensures at least 90 minutes of emergency operation.

The battery reaches full charge within 24 hours to maintain continuous readiness.

Includes a test switch and a charging indicator light for simplified maintenance.

UL and cULus certified, this unit is moisture-resistant and suitable for indoor environments with temperatures between 0–40°C.

Specifications

Model	JLECB2GW/JLECB2RW
Color	White/Green/Red EXIT Letter
Material	ABS
Voltage	120/277 Volts
Battery	3.6V 1000mAh Ni-Cad
Wattage	3.5W (2pcs×1W SMT LED)
Type of Bulb	LED
Emergency Time	90mins
Mounting	Wall mounted
Certifications	UL&cUL, CEC, DOE, FCC, ROHS
Weather Rating	Listed for damp location
Product Weight	2.43lbs/1.1kgs
Product Size	30×5.9×24.7cm
Remarks	Sign SALIDA available
Ordering and Packing Information
MOQ	1000pcs
Lead Time	35 days
Sample Delivery Time	3~10 days
Packing	White box
Carton Size (L×W×H)	40×33×23cm/6pcs
Carton CBM	0.03m³
Quantity per Carton	6pcs
Gross Weight	8.6kgs/ctn
Net Weight	7.6kgs/ctn
Container Loading Quantity	1×20'	1×40'	1×40' HQ
	5500pcs	11500pcs	13400pcs
