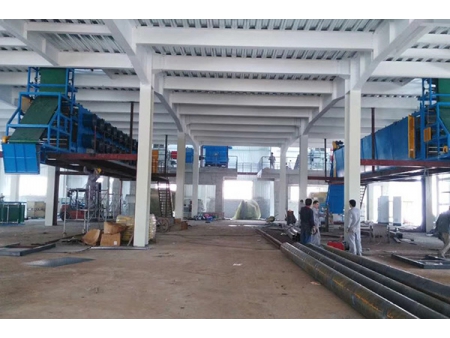

Overhead Rubber Batch Off Cooling Line
Request a Quote
Applications
The overhead rubber batch off cooling line is designed to cool and dry rubber sheet processed by rubber mixing mills or rubber sheet presses so that they can be safely and properly stored.
The cooling machine has a wide range of applications in the production of rubber and rubber products. The cooling line is often found in facilities that produce tires, cables, rubber hoses, belts, shoe soles, etc.
Product parameters
| Model | |
| Maximum rubber sheet width (mm) | 600 |
| Rubber sheet thickness (mm) | 4-10 |
| Temperature over ambient environment after sheet cooling(℃) | 10 |
| Linear speed of taking-in conveyor (m/min) | 3-24 |
| Linear speed of sheet-hanging chain (m/min) | 0.82 |
| Hanging rubber sheet height (m) | 1000-1500 |
| No. of cooling fans (set) | 12 |
| Total power(kw) | 13.7 |
| Model | |
| Maximum rubber sheet width (mm) | 800 |
| Rubber sheet thickness (mm) | 4-10 |
| Temperature over ambient environment after sheet cooling(℃) | 15 |
| Linear speed of taking-in conveyor (m/min) | 3-35 |
| Linear speed of sheet-hanging chain (m/min) | 0.117-1.17 |
| Hanging rubber sheet height (m) | 1000-1500 |
| No. of cooling fans (set) | 20 |
| Total power(kw) | 28.8 |
| Model | |
| Maximum rubber sheet width (mm) | 900 |
| Rubber sheet thickness (mm) | 6-12 |
| Temperature over ambient environment after sheet cooling(℃) | 5 |
| Linear speed of taking-in conveyor (m/min) | 4-40 |
| Linear speed of sheet-hanging chain (m/min) | 4-40 |
| Hanging rubber sheet height (m) | 1400 |
| No. of cooling fans (set) | 18-26 |
| Total power(kw) | 18-34 |
Product description
- Immerse the rubber sheet into the dip tank which contains a solvent then hang the sheets where they will be dried by fan. These procedures guarantee and optimal cooling and drying effect.
- The whole machine adopts PLC control. Every procedure is driven by variable frequency motor. The speed can be adjusted freely.
- Cooling fans are high-volume fans with optimal cooling effects.
- Upon request, rubber cooling machines can be equipped with an automatic counting device, automatic cutting device and automatic packing device. After automatic sheet packing, it is easier to feed the rubber extruder machine.
- After feeding, workers can just leave the machine to work by itself.
Our advantages
- Batch-off coolers have many structural types. We can provide customized machines to meet client demands.
- Every type of rubber batch-off cooler is multi-functional, easy to use and efficient.
