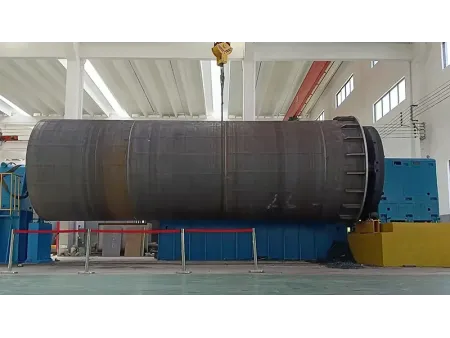

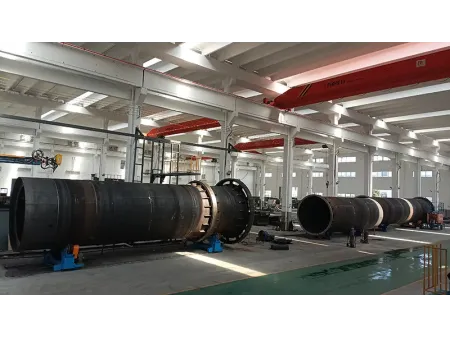

Rotating drum for drying bulk solids
The rotary dryer operates by introducing heated air while the inclined drum continuously rotates, allowing wet materials to move forward and exchange heat effectively with the air. Widely used in agriculture, chemicals, and mining, it caters to various production scales and material types.
Features
- Constructed with a high-precision ground base, offering high concentricity and reduced wear, resulting in longer operational life.
- The drum features flange connections, ensuring precise alignment and easy maintenance or replacement.
- Critical components like the gear ring, rolling rings, and support rollers are crafted from high-quality cast steel for improved wear resistance and longevity.
- Internally, the layout of the lifting plates is optimized for spacing and angle, enhancing heat efficiency while considering the material’s specific properties.
- Equipped with external hammering devices to prevent materials from sticking to the drum walls effectively.
Specifications
Drum size (m) | Drum | Production capacity (t/h) | Flow direction | Reducer | Motor | Dimensions (L×W×H) (mm) | Weight (t) | |||||
Inner diameter (mm) | Length (mm) | Inclination (°) | Rev. (r/min) | Model | Ratio | Model | Power (kW) | |||||
1200 | 10000 | 2.5 | 6.1 | 1-1.5 | Downstream | JZQ500 | 31.50 | Y160M-6 | 7.5 | 10000×2280×2245 | 13.0 | |
1500 | 14000 | 2.5 | 4.28 | 3-4 | ZQ650 | 31.50 | Y200L-6 | 18.5 | 15750×3085×3180 | 21.0 | ||
1600 | 16000 | 2.5 | 5 | 4-5 | ZQ650 | 23.34 | Y200L1-6 | 18.5 | 17500×3232×3500 | 26.0 | ||
1800 | 18000 | 2.5 | 5 | 5-7 | ZQ650 | 23.34 | Y200L1-6 | 18.5 | 19614×3438×3673 | 30.0 | ||
2000 | 20000 | 2.5 | 6 | 7-10 | ZL65 | 22.50 | Y225M-6 | 30 | 22091×3232×4445 | 43.0 | ||
2200 | 22000 | 2.5 | 3.29 | 8-14 | ZL65 | 40.00 | Y250M-6 | 37 | 23400×4593×3810 | 50.0 | ||
2400 | 24000 | 2.5 | 2.82 | 12-16 | ZL75 | 45.00 | Y280S-6 | 45 | 25630×4097×5932 | 70.0 | ||
2600 | 26000 | 2.5 | 3.8 | 20-25 | ZL100 | 35.50 | Y280M-6 | 55 | 27750×3100×5810 | 84.0 | ||
2800 | 28000 | 2.5 | 2.66 | 18-20 | ZL115 | 45.00 | Y280S-6 | 75 | 29630×4220×5110 | 100.0 | ||
2800 | 34000 | 2.5 | 2.65 | 18-20 | ZL115 | 45.00 | Y315M-6 | 110 | 37500×4050×5350 | 111.0 | ||
3000 | 28000 | 2.5 | 3.96 | 20-22 | ZSY450 | 45.00 | Y315M1-4 | 132 | 30615×5960×6450 | 130.0 | ||
3200 | 25000 | 2.5 | 4.0 | 20-30 | ZSY450 | 45.00 | Y315M-4 | 185 | 29500×6500×6300 | 138.0 | ||
3400 | 34000 | 1.8 | 2.56 | 20-30 | ZL130 | 45.00 | Y2-355M2-6 | 200 | 34600×6678×6540 | 175.0 | ||
3600 | 34000 | 1.8 | 2.51 | 30-40 | ZL130 | 40.00 | YKK3554-4 | 250 | 34600×6890×6540 | 209.0 | ||
4000 | 34000 | 1.8 | 2.09 | 40-45 | ZSY630 | 90.00 | YKK4003-4 | 315 | 36466×7800×6800 | 232.0 | ||
4200 | 34000 | 2.5 | 2.15 | 42 | ZSY630 | 80.00 | YKK4005-4 | 400 | 37466×8000×6800 | 250.0 | ||
4500 | 34000 | 1.8 | 1.85 | 160 | ZSY630 | 80.00 | YKK4502-4 | 500 | 38000×8300×7200 | 290.0 |
