Rotary Drum Granulator
Request a Quote

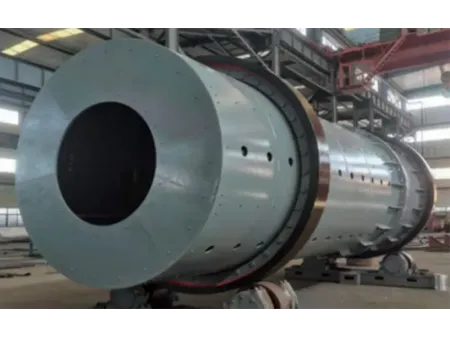

Granulation drum for the production of granular fertilizers
In fertilizer production, rotary drum granulators are necessary to turning powdery materials into solid, uniform granules. This granulating equipment is commonly used for making compound fertilizers with different nutrient levels, from low to high concentrations. The process involves adding water, steam, or slurry into the drum along with the raw materials. As the drum rotates, the particles are mixed and pressed together, forming strong granules.
Granular Fertilizers
Features
- The inside of the drum is lined with special rubber plates that help with self-cleaning and prevent corrosion. For more durability, options like engineering plastic or stainless steel can be used as linings.
- The gear rings and support rollers are made from cast steel, which increases wear resistance and ensures the drum lasts longer, even during heavy use.
Specifications
Drum size (m) | Drum | Production capacity (t/h) | Reducer | Motor | Dimensions (L×W×H) (mm) | Weight (t) | |||||
Inner diameter (mm) | Length (mm) | Inclination (°) | Rev. (r/min) | Model | Ratio | Model | Power (kW) | ||||
800 | 3200 | 2.5 | 17 | 2.5 | JZQ350 | 15.75 | Y132M1-6 | 4 | 3800×1800×2000 | 5.5 | |
1200 | 3500 | 2.5 | 18.07 | 3 | JZQ500 | 12.5 | Y160M-6 | 7.5 | 3960×3070×2129 | 7 | |
1400 | 4000 | 2.5 | 15.05 | 5 | JZQ500 | 20.49 | Y160M-4 | 11 | 4400×2810×2600 | 8 | |
1500 | 5000 | 2.5 | 12.6 | 6 | ZQ50C | 12.64 | Y180L-6 | 15 | 5400×2910×2800 | 10 | |
1600 | 6000 | 2.5 | 12 | 7 | ZQ50C | 12.64 | Y180L-6 | 15 | 7700×3003×3216 | 11 | |
1800 | 6000 | 2.5 | 11.5 | 8 | ZQ650 | 10.35 | Y180L-6 | 15 | 8000×3335×3350 | 16 | |
1800 | 8000 | 2.5 | 11.5 | 10 | ZQ650 | 10.35 | Y180L-6 | 15 | 10000×3380×3350 | 18 | |
2000 | 7000 | 2.5 | 10.8 | 14 | ZQ650 | 10.35 | Y225M-6 | 30 | 11000×3900×3750 | 25 | |
2200 | 8000 | 2.5 | 10.85 | 20 | ZQ650 | 12.64 | Y250M-6 | 37 | 9500×4410×3900 | 29 | |
2400 | 10000 | 2.5 | 9.6 | 25 | ZL75 | 20 | Y250M-4 | 55 | 11600×4636×4955 | 42 | |
2600 | 10000 | 2.5 | 9.17 | 30 | ZL75 | 12.5 | Y315M-6 | 90 | 12200×4850×4262 | 52 | |
2800 | 10000 | 2 | 8.35 | 35 | ZLY315 | 14 | Y280M-6 | 90 | 12000×5300×5200 | 60 | |
2900 | 6000 | 1.8 | 9.46 | 40 | ZL85 | 14 | Y315M2-6 | 132 | 9000×5400×5800 | 68 | |
3000 | 9000 | 1.8 | 9.06 | 45 | ZLY355 | 20 | Y315L1-4 | 160 | 11000×6000×5800 | 70 | |
3200 | 1000C | 2.5 | 8.54 | 50 | ZL100 | 20 | Y315L1-4 | 160 | 12100×5050×5800 | 80 | |
3300 | 9000 | 2.5 | 9.14 | 55 | ZLY400 | 20 | Y315L2-4 | 200 | 12500×6689×6399 | 85 | |
3500 | 8000 | 2.5 | 9.25 | 56 | ZLY400 | 20 | Y315L2-4 | 200 | 10000×6800×7000 | 93 | |
4100 | 9000 | 2.5 | 8.1 | 13 | ZLY400 | 20 | YKK2002-4 | 280 | 10600×7200×7300 | 130 |
