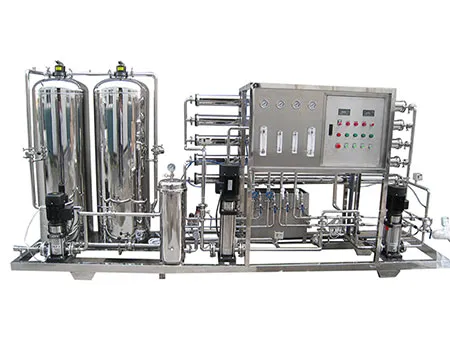

Reverse Osmosis Purification System

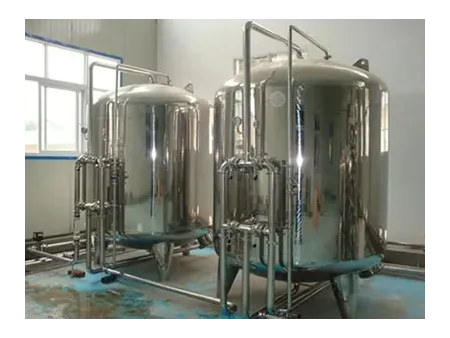

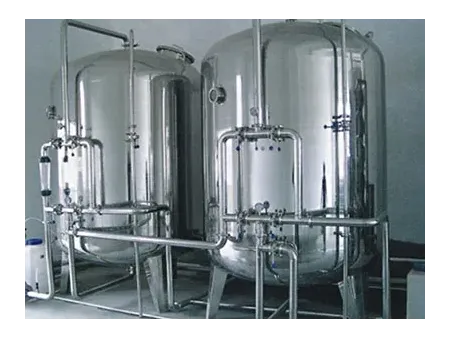

The reverse osmosis purification system is equipped with stainless steel sand filter, and active carbon filter effectively to remove particulate impurities and suspend matters, which improves RO membrane influent index and removes the odor and rest chlorine of raw water. This significantly improves water quality and taste. The water treatment system adopts American high efficiency low-pressure RO membranes, which is capable of removing up to 99% of dissolved salts. With reliable high- and low-pressure protection from Korea, the RO system features failure rate down to 0, greatly improving working efficiency. After treated with the RO purification system, the water can achieve the quality and taste of purified water.
Raw water pump, sand filter, active carbon filter, chemical doser, water softener, 5µm micro filter, reverse osmosis system, backwashing system, sterilization, water tank and fittings
| Model | |||||
| Process capacity (L/h) | 1000 | 3000 | 5000 | 5000 | |
| Raw water pump model | CHL2-40 | CHL8-40 | CHL8-50 | CHL8-50 | |
| Sand filter | 400*1500 | 600*1500 | 800*1500 | 800*1500 | |
| Active carbon filter | 400*1500 | 600*1500 | 800*1500 | 800*1500 | |
| Dosing system | |||||
| Micro filter | Dosing box | ||||
| Cartridge specification | 65*500 | 65*750 | 65*750 | 65*750 | |
| Cartridge No. | 5 | 5 | 7 | 7 | |
| Reverse osmosis system | |||||
| RO backwash system (including cleaning pump and cleaning box, etc.) | |||||
| Size (RO bar) | L | 2600 | 2600 | 2600 | 2600 |
