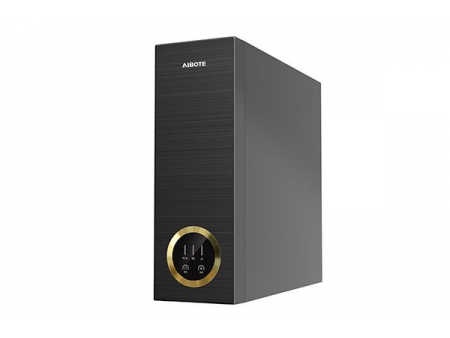

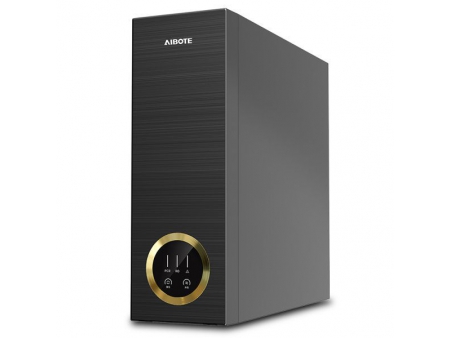

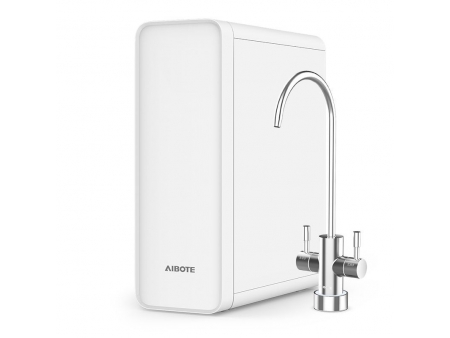

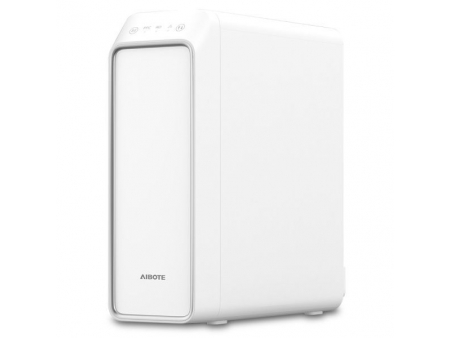

800GPD Under Sink Reverse Osmosis System
Dual Outlet Water Filter System
- Filtration System PCR filter: PP C PP RO composite filter
RO filter: Reverse Osmosis membrane filter - Flow Rate 800GPD (2.08L/min), flow rate availability 400GPD-1200GPD
- Purified/Drain Ratio 2:1 pure to drain
- Personalized Functions Double RO systems structure to ensure “0” overnight water
Dual flow filtration with anti-flooding sensor
Filter lifetime indicator
Malfunction alert

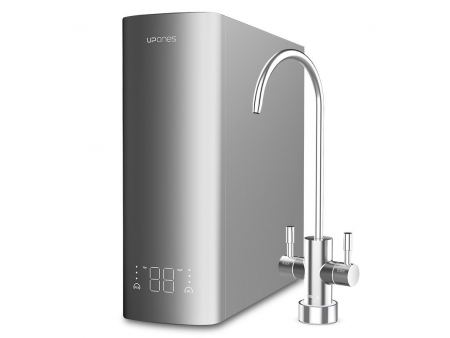

Purified water TDS display - Optional Faucet Types Single-handle faucet

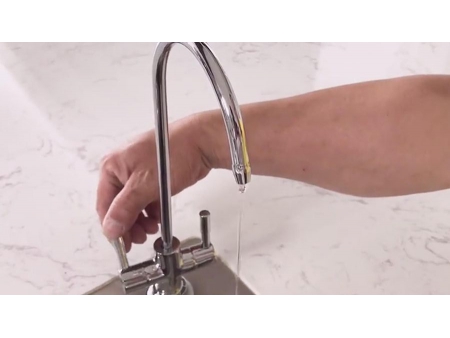

Double-handle faucet
LED ring faucet
Smart display faucet
- Model ABT-RO1901D

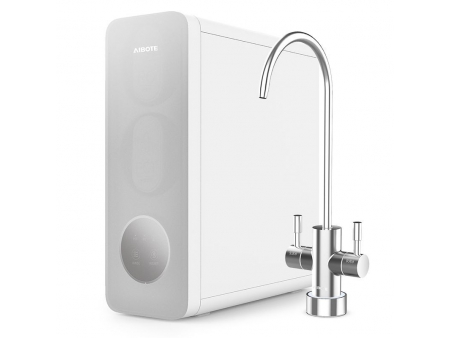

(with double-handle smart display faucet) - Filter cartridge PCR RO
- Model ABT-RO1901I
- Filter cartridge PCR RO
- Model ABT-RO1901B
- Filter cartridge PCR RO
- Model ABT-RO1901L
- Filter cartridge PCR RO
Our 800GPD reverse osmosis system produces two kinds of water, one is rinse water, and the other is drinking water. The former processed by PCR filter cartridge contains no sediments like sand, rust, suspended solids and nematodes; neither does it have chlorine residuals. Therefore, the water, undrinkable as it is, can be used to wash fruits, vegetables and raw meats.
The latter kind of water processed by two filter cartridges (PCR RO) has removed all tiny substances of 0.0001um-0.001um including minerals, bacteria, virus, and antibiotics. As a result, nothing is left but the drinkable water. This under sink reverse osmosis system can be configured with a double-handle smart display faucet which allows the flexible switching between washing water and drinkable water. The LCD display could conduct real-time monitoring of the purified water TDS value and the lifetime of filter cartridge. Therefore, healthy and safe water is guaranteed.
Our dual outlet RO water filter systems are made up of two reverse osmosis systems, the first of which has a smaller volumetric flow rate than the second one. They are based on the Zero Overnight Water Technology. The water filtered by the first RO system is sent into the second RO system for further purification. No matter how long you have been away on vacation, you just need to turn on the faucet and have higher purity drinking water.
- A design of integrated water circuit coupled with water leak detector ensures no water leakage;
- The 2.08L/min flow rate could fill a cup of 150ml within 4.5 seconds;
- Our 800GPD reverse osmosis system has two outlets allowing dual use, with real-time monitoring of water TDS value;
- Thanks to the small size of our dual outlet water filter system, less space is required in your kitchen;
- Aibote's patented double-layer shock absorption design ensures quiet operation by keeping the noise level below 50dB;
- Filter cartridge lifetime is displayed on the body of the reverse osmosis system;
Model | ABT-RO1901D |
Dimensions | 365*135*369mm |
Flow rate | 800GPD (2.08L/min) (400-1200GPD optional) |

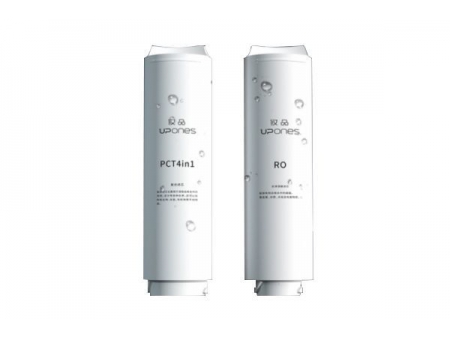

Filter cartridge | PCR RO |
Number of filtration stage | 5-stage |
Filter cartridge lifetime | PCR: 6-12 months RO: 24-60 months (depending on the quality of water source) |
Filter cartridge type | Disposable filter cartridge |
Voltage | 24V |
Power | 100W (depending on water flow rate) |
Feed water pressure | 0.1-0.4MPa |
Operation pressure | 0.4-0.8MPa |
Feed water temperature | 5-38℃ |
Ambient temperature | 4-40℃ |
Rated water output | Single outlet: 6000L Dual outlet: 6000L 6000L |
Optional faucet | Single-handle faucet Double-handle faucet LED ring faucet Smart display faucet |
Functions (customizable) | Filter cartridge lifetime indicator Faults indicator "Flush" button "Reset" button |
Water leakage alert | All indicator lights flashing, with beeping |

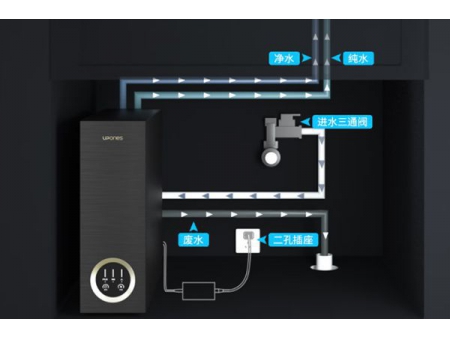

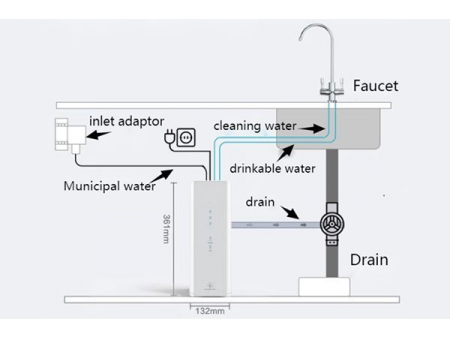

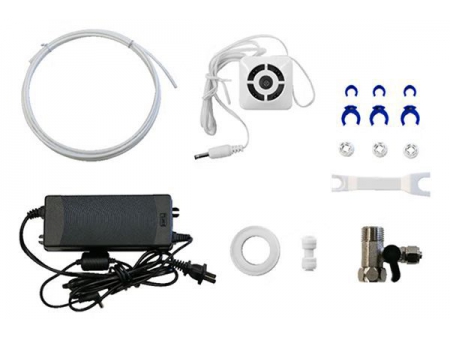

Simple installation of under sink water filter system, DIY installation is possible

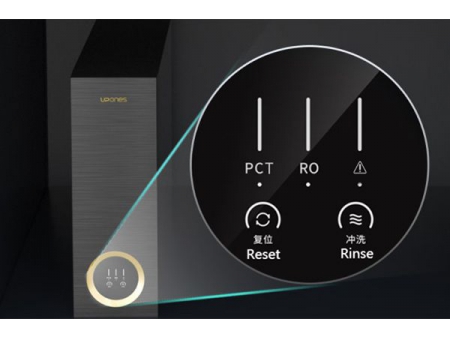

Real-time monitoring of filter cartridge lifetime
Our eco-friendly RO system could help reduce the consumption of bottled water, thus saving your money and protecting the environment from plastic waste.

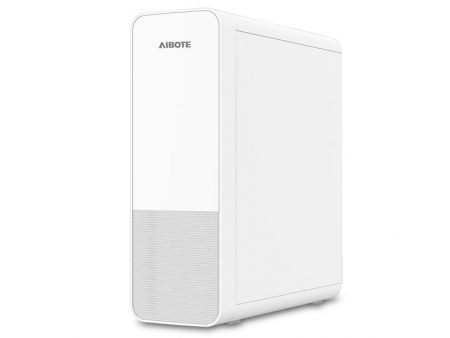

Compact structure of the under sink water filter system enables it to be perfectly fit in the tight space of your kitchen. Tankless design maximizes the utilization rate of the under sink space.

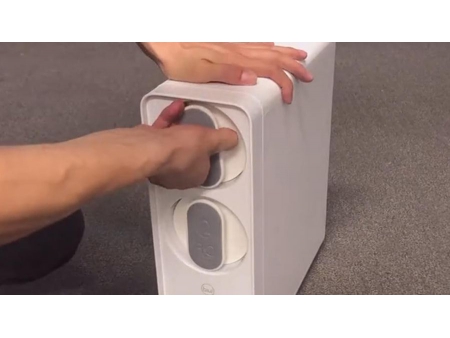

Easy replacement of filter cartridge

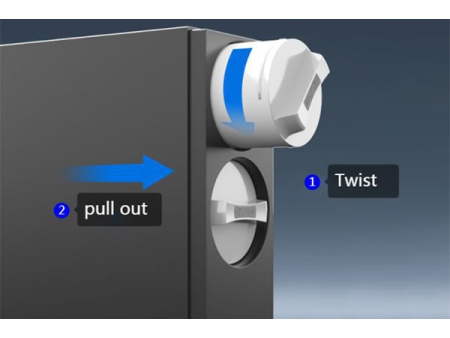

1. Turn the knob counterclockwise and pull out the expired filter
2. Insert a new filter and turn the knob clockwise
3. Put back the front cover and the filter replacement is done
- China Water Efficiency Label
- CE Certificate
- Validation of National Health Commission of PRC
- NSF International
- ISO 9001 Quality Management System
