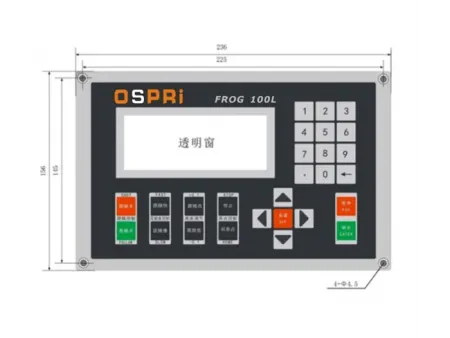

FROG 100L

Fiber laser control system used to monitor and control the stand-off distance between the nozzle and the workpiece surface

FROG 100L

Fiber laser control system used to monitor and control the stand-off distance between the nozzle and the workpiece surface

This is a high-performance standalone capacitive height controller that uses a closed-loop control method to precisely manage laser cutting capacitive heads. Beyond the standard control functions found in similar products, it also features an Ethernet communication interface (TCP/IP protocol), enabling seamless integration with laser cutting software. This makes it easy to implement functions such as automatic height tracking, piercing thick materials in controlled stages, gradually ramping power for smoother entry, precise edge finding, and actively lifting the head between cuts to avoid collisions and save time, while also significantly improving response speed.

With its dual closed-loop speed and position algorithm for servo control, the capacitive height controller delivers cutting speeds and accuracy that outperform many domestic and international alternatives.

Features
  • Sampling rate: 1000 times per second
  • Static measurement accuracy: 0.001 mm
  • Dynamic response accuracy: 0.05 mm
  • Height control range: 0-15 mm
  • Maximum acceleration: 2G
  • Maximum following speed: up to 1000 mm/s (with 10 mm lead screw and 6000 RPM servo motor)
  • Signal transmission distance: up to 100 m without attenuation, with strong anti-interference capability
  • Supports network communication and USB online upgrades
  • Compatible with any cutting head and nozzle, with automatic capacitive parameter adaptation
  • Safety features: plate collision alarm, out-of-range following alarm
  • Edge detection and automatic edge finding
  • One-touch calibration for fast and simple operation
  • Supports segmented piercing, frog-jump lifting, and freely adjustable lift-up height
  • Built-in oscilloscope function for real-time monitoring of capacitance and height changes
