SPA Controller

Request a Quote

Website: http://dxd-poolpump.com/1-4-2-spa-controller.html

DXD-A008/D

Certificate: CE, TÜV

Model			DXD-A008/D
Operation interface	Press button		●
Functions	Water pump control	Water pump AC230V/3HP MAX	●
	Blower control	Blower AC230V/1.5HP MAX	●
	Circulating pump control	Circulating pump AC230V/1HP MAX	●
	Bottom light control	Bottom light AC12V/3W MAX	●
	Ozone control	Ozone generator AC12V/9W MAX	●
	Air regulation	Air regulator AC12V/3W MAX	*
	Air regulation	Solenoid valve DC12V/7W MAX	*
	Thermostatic heating	Thermostatic heater AC230V/3000W MAX	●
	Auxiliary heating	Auxiliary heater AC230V/2000W MAX	*
	Auto cleaning	Clean valve DC12V/7W MAX	*
	FM radio	Speaker 8Ω/10W MAX	●
	CD	Speaker 8Ω/10W MAX	*
	MP3	Speaker 8Ω/10W MAX	*
	Bluetooth	Speaker 8Ω/10W MAX	*
	Remote control		*
	Water level measurement	Water level probe	*
	Water level measurement	Capacitive liquid level sensor	*

Notes: 1. “●” Stands for the standard functions. 2. “*” Stands for the optional functions. 3. All these models can also be designed according to AC110V/60Hz.

DXD-A010/A

Certificate: CE, TÜV, UL

Model			Model	DXD-A010/A
Operation interface	Press button		●
Functions	Water pump control	Water pump AC230V/3HP MAX	●
	Blower control	Blower AC230V/1.5HP MAX	●
	Circulating pump control	Circulating pump AC230V/1HP MAX	●
	Bottom light control	Bottom light AC12V/3W MAX	●
	Ozone control	Ozone generator AC12V/9W MAX	●
	Air regulation	Air regulator AC12V/3W MAX	*
	Air regulation	Solenoid valve DC12V/7W MAX	*
	Thermostatic heating	Thermostatic heater AC230V/3000W MAX	●
	Auxiliary heating	Auxiliary heater AC230V/2000W MAX	*
	Auto cleaning	Clean valve DC12V/7W MAX	*
	Bluetooth	Speaker 8Ω/10W MAX	●
	Remote control		*
	Water level measurement	Water level probe	*
	Water level measurement	Capacitive liquid level sensor	*

Notes: 1. “●” Stands for the standard functions. 2. “*” Stands for the optional functions. 3. All these models can also be designed according to AC110V/60Hz.

DXD-A008/H

Model			DXD-A008/H
Operation interface	Touch key	Capacitive touch key	●
Functions	Water pump control	Water pump AC230V/3HP MAX	●
	Blower control	Blower AC230V/1.5HP MAX	●
	Circulating pump control	Circulating pump AC230V/1HP MAX	●
	Bottom light control	Bottom light AC12V/3W MAX	●
	Ozone control	Ozone generator AC12V/9W MAX	●
	Air regulation	Air regulator AC12V/3W MAX	*
	Air regulation	Solenoid valve DC12V/7W MAX	*
	Thermostatic heating	Thermostatic heater AC230V/3000W MAX	●
	Auxiliary heating	Auxiliary heater AC230V/2000W MAX	*
	Auto cleaning	Clean valve DC12V/7W MAX	*
	FM radio	Speaker 8Ω/10W MAX	●
	CD	Speaker 8Ω/10W MAX	*
	MP3	Speaker 8Ω/10W MAX	*
	Bluetooth	Speaker 8Ω/10W MAX	*
	Child lock		●
	Remote control		*
	Water level measurement	Water level probe	*
	Water level measurement	Capacitive liquid level sensor	*

Notes: 1. “●” Stands for the standard functions. 2. “*” Stands for the optional functions. 3. All these models can also be designed according to AC110V/60Hz.

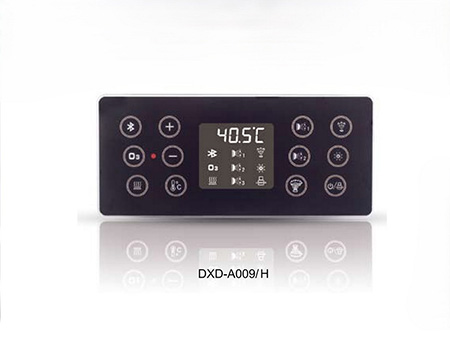

DXD-A009/H

Certificate: CE, TÜV, UL

Model			DXD-A009/H
Operation interface	Touch key	Capacitive touch key	●
Functions	Water pump control	Water pump AC230V/3HP MAX	●
	Blower control	Blower AC230V/1.5HP MAX	●
	Circulating pump control	Circulating pump AC230V/1HP MAX	●
	Bottom light control	Bottom light AC12V/3W MAX	●
	Ozone control	Ozone generator AC12V/9W MAX	●
	Air regulation	Air regulator AC12V/3W MAX	*
	Air regulation	Solenoid valve DC12V/7W MAX	*
	Thermostatic heating	Thermostatic heater AC230V/3000W MAX	●
	Auxiliary heating	Auxiliary heater AC230V/2000W MAX	*
	Auto cleaning	Clean valve DC12V/7W MAX	*
	FM radio	Speaker 8Ω/10W MAX	●
	CD	Speaker 8Ω/10W MAX	*
	MP3	Speaker 8Ω/10W MAX	*
	Bluetooth	Speaker 8Ω/10W MAX	●
	Child lock		●
	Remote control		*
	Water level measurement	Water level probe	*
	Water level measurement	Capacitive liquid level sensor	*

Notes: 1. “●” Stands for the standard functions. 2. “*” Stands for the optional functions. 3. All these models can also be designed according to AC110V/60Hz.

DXD-A130/K

Certificate: CE, TÜV

Model			DXD-A130/K
Operation interface	Touch key	Capacitive touch key	●
Functions	Water pump control	Water pump AC230V/3HP MAX	●
	Blower control	Blower AC230V/1.5HP MAX	●
	Circulating pump control	Circulating pump AC230V/1HP MAX	●
	Bottom light control	Bottom light AC12V/3W MAX	●
	Ozone control	Ozone generator AC12V/9W MAX	●
	Air regulation	Air regulator AC12V/3W MAX	*
	Air regulation	Solenoid valve DC12V/7W MAX	*
	Thermostatic heating	Thermostatic heater AC230V/3000W MAX	●
	Auxiliary heating	Auxiliary heater AC230V/2000W MAX	*
	Auto cleaning	Clean valve DC12V/7W MAX	*
	Bluetooth	Speaker 8Ω/10W MAX	●
	Child lock		●
	Remote control		*
	Water level measurement	Water level probe	*
	Water level measurement	Capacitive liquid level sensor	*

Notes: 1. “●” Stands for the standard functions. 2. “*” Stands for the optional functions. 3. All these models can also be designed according to AC110V/60Hz.

DXD-A021/A

Model			DXD-A021/A
Operation interface	Press button	Capacitive touch key	●
Functions	Water pump control	Water pump AC230V/3HP MAX	●
	Blower control	Blower AC230V/1.5HP MAX	●
	Circulating pump control	Circulating pump AC230V/1HP MAX	●
	Bottom light control	Bottom light AC12V/3W MAX	●
	Ozone control	Ozone generator AC12V/9W MAX	●
	Air regulation	Air regulator AC12V/3W MAX	*
	Air regulation	Solenoid valve DC12V/7W MAX	*
	Thermostatic heating	Thermostatic heater AC230V/3000W MAX	●
	Auxiliary heating	Auxiliary heater AC230V/2000W MAX	*
	Auto cleaning	Clean valve DC12V/7W MAX	*
	Multimedia playback		●
	Remote control by mobile phone	WIFI	●
	Bluetooth	Speaker 8Ω/10W MAX	●
	Child lock		●
	Remote control		*
	Water level measurement	Water level probe	*
	Water level measurement	Capacitive liquid level sensor	*

Notes: 1. “●” Stands for the standard functions. 2. “*” Stands for the optional functions. 3. All these models can also be designed according to AC110V/60Hz.
