Reflux Monitoring Energy Meter
Request a Quote
The rail-type multifunction electrical instrument with external Rogowski coil and split-core current transformer is applicable for the energy-saving reconstruction project in high energy consumption industries including smelting, iron & steel, welding and semi-conductor fields. It is also suitable for applications such as the power monitoring of grid-connected cabinet for distributed photovoltaic power cabinet and energy demand management. It boasts of no need of bus removal, easy connection and safe construction, saving reconstruction cost and raising efficiency for the user.
Bidirectional Single-phase Reflux Monitoring Energy Meter, ACR10R-DxxT
- Measurement: 1-phase active power, reactive power, current, voltage, etc.
- Current rating: up to 300A (paired with external CTs)
- Communication: RS485 (MODBUS-RTU)
- Application: using in distributed solar PV and anti-reflux inverter
- Display: LCD display
- Dimension: 54*74*85mm (L*W*H)
- Installation: 35mm DIN rail
- Power supply: 85~265V AC or 100~350V DC
- Standard & Certificate: CE

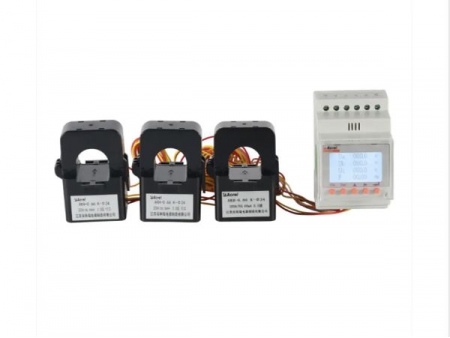

Bidirectional Three-phase Reflux Monitoring Energy Meter, ACR10R-DxxTEx
- Measurement: 3-phase active power, reactive power, current, voltage, etc.
- Current rating: up to 300A (with CTs); up to 20000A (with Rogowski Coil)
- Communication: RS485 (MODBUS-RTU)
- Application: using in distributed solar PV and anti-reflux inverter
- Display: LCD display
- Dimension: 54*64*84mm (L*W*H)
- Installation: 35mm DIN rail
- Power supply: 85~265V AC or 100~350V DC
- Standard & Certificate: CE
