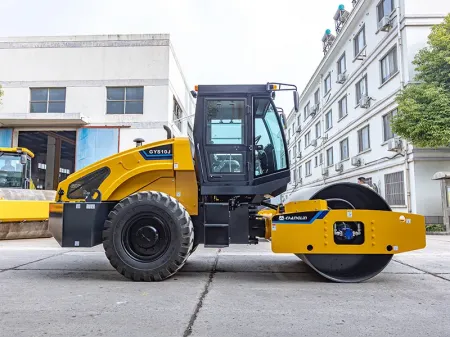

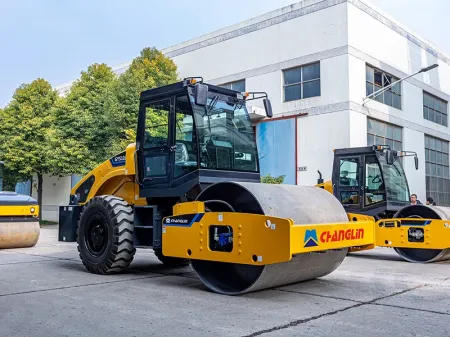

GYS10J Single Drum Vibratory Roller / Soil Compactor
Request a Quote
- Operating weight 10000 kg
- Vibratory drum diameter 1430 mm
- Centrifugal force 225/105 kN
- Dimensions (L×W×H) 5570×2180×3010 mm
Technical Specifications
- Model GYS10J
- Operating weight 10000kg
- Vibratory drum diameter 1430mm
- Vibratory drum width 1980mm
- Vibratory frequency 30Hz
- Vibratory amplitude 1.6/0.8mm
- Centrifugal force 225/105kN
- Travel Speed (Forward) 2.0/4.2/8.7km/h
- Travel Speed (Reverse) 2.0/4.2km/h
- Min. ground clearance 380mm
- Wheel base 2900mm
- Static line pressure 240 N/cm
- Min. turning radius 5800mm
- Gradeability 30%
- Dimensions (L×W×H) 5570×2180×3010mm
- Engine model WP4G110E221
- Engine type Inline 4 cylinder, 4 stroke, water cooled
- Power 82kW
- Rated speed 2000r/min
- Fuel tank capacity 240L
- Hydraulic oil tank capacity 240L
- Tire 17.5-25
