Energy Storage Cabinets (324-438VDC)
The (324-438VDC) energy storage cabinets integrate a local BMS (Battery Management System) that continuously monitors battery voltage and temperature. If abnormal voltage or temperature levels are detected, the system automatically disconnects the battery from the equipment to ensure operational safety.
The energy storage cabinet maintains constant communication with the IPSCP cloud platform, which performs real-time system analysis and monitoring. When data irregularities or faults are detected, the platform sends a shutdown command, causing the on-site system to stop operation immediately to prevent equipment damage.
Additionally, the cabinet features an integrated fire protection system equipped with an HFC-227ea (heptafluoropropane) fire suppression unit. When internal temperature reaches a critical threshold, the system activates automatically, effectively preventing potential damage to the installation site and ensuring safe operation of the energy storage unit.
| Overall Dimensions | |

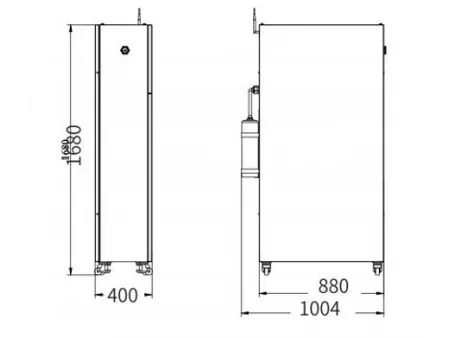

| Dimensions | 880*400*1680(±10)mm |
| Weight | 275(±10)kg |
| Protection Grade | IP65 |
| Battery System | |
| Battery Type | LiFeP04 |
| Rated Voltage | 384VDC |
| Voltage Range | 324V~438VDC |
| Nominal Capacity | 19kWh |
| Charge/Discharge Current | 25A (25℃)0.5C |
| Cooling Method | Forced air cooling |
| AC Side Output | |
| Rated Power | 10kW |
| Maximum Power | 10kW |
| Maximum Output Current | 49A |
| Output Voltage | 380V |
| Grid Voltage Range | 350~440V |
| Grid Frequency Range | 45~55Hz |
| Power Factor | ±0.9 |
| Total Harmonic Distortion (THD) | < 3% (at rated power) |
