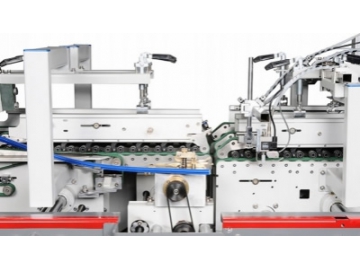

Automatic Carton Folding Gluing Line 650 type Carton Gluing Machine
Request a Quote
High Speed Carton Equipment Manufacturer
Description
The automatic carton folding gluing line’s 650 type carton gluing machine has a maximum blank width of 650mm and a maximum processing speed of 400m/min. It is ideal for large and medium sized packaging enterprises and commercial printers to carry out the gluing process on small and medium sized cartons.

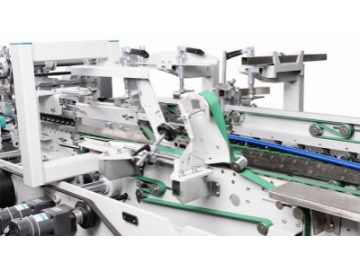

The conveyor belt of the folding and closing section in this folder-gluer is adjustable in 180°, thus allowing the machine to be used for manufacturing pre-folding and auto bottom boxes straight-line boxes, crash-lock bottom boxes, double-wall boxes and more.
Produced box type- straight-line box A: 126 - 650 mm
B: 100 - 500 mm
E: 58 - 320 mm - crash-lock bottom box A: 146 - 650 mm
B: 110 - 500 mm
E: 68 - 320 mm - double-wall box A: 200 - 650 mm
B: 100 - 500 mm
D: 30 - 150 mm
E: 80 - 530 mm

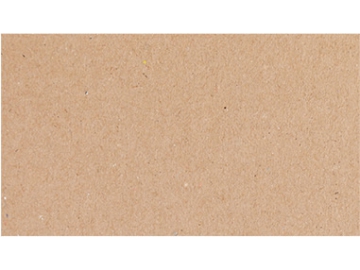

- Carton board

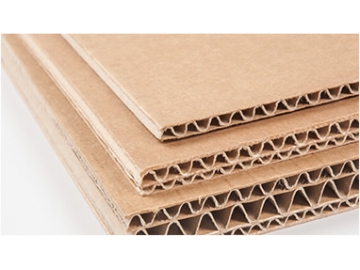

- Corrugated board
Processed materials
| Max. Carton board | 800 g/m² |
| Corrugated flute type | N, E & F |
| Max. speed | 400 m/min |
| Inching speed | 20 m/min |
| Max. Thickness of folded box | 12 mm |
| Max. Blank width | 650 mm |
| Total length of pressure conveyor section | 5.5 m |
| Effective pressure conveying length | 3.1 m |
| Lower belt width | 25mm |
| Outer belt width | 30mm |
| Length | 13.23 m |
| Width | 1.44 m |
| Height | 1.3 m |
| Weight | 6.5 Ton |
| Electrical connected load | 17 kW |
| Compressed air | 6 bar |
| Air compressor capacity | 10 m³/h |
| Air tank capacity | 60 L |
folding and gluing system components

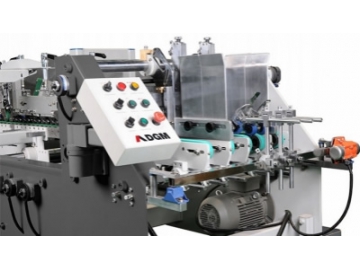

- Feeder section
- Side register table
- Pre-folding section

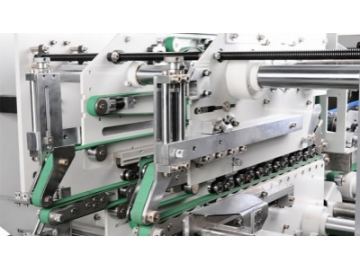

- Crash lock bottom section

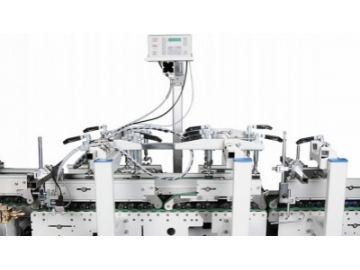

- Gluing unit

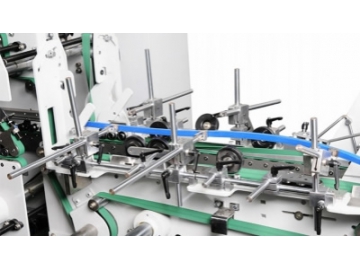

- Folding and closing section
- Trombone section

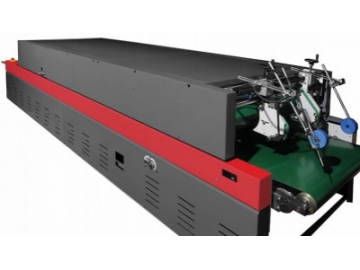

- Pressure conveyor section
