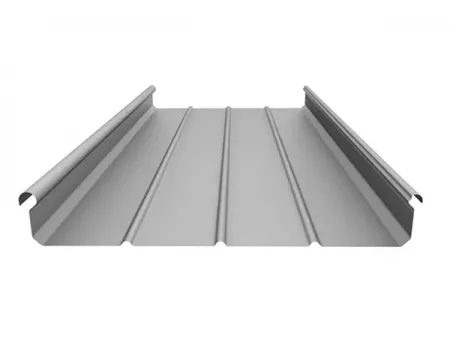

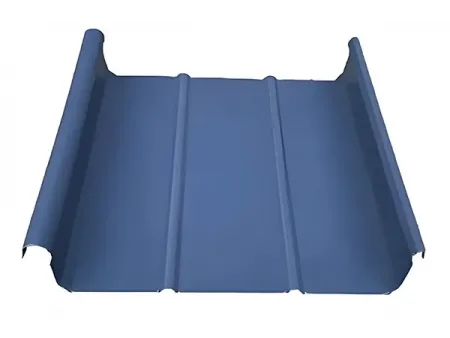

YX65-300
Single skin standing seam metal profiles for roofs
- Effective cover width: 300mm/328mm/400mm/428mm/500mm/600 mm
- Length: 1m-12m (customizable)
- Thickness: 0.4mm-1.0mm
- Material: Galvanized steel sheet, galvalume steel sheet, titanium zinc sheet, Al-Mg-Mn alloy sheet
Featuring a seam-locked system with additional stiffening ribs, these single-skin metal profiles provide greater structural integrity and a distinct linear appearance. This type of profile works well for projects that need smooth curves or unique shapes, giving architects more freedom while keeping the roof safe, watertight, and long-lasting.
Applications
Ideal for industrial facilities, commercial complexes, office towers, hotels, shopping centers, and exhibition halls. They are also a good choice for coastal projects or regions with heavy rainfall and strong winds, thanks to their reliable waterproof properties.
Advantages & Applications of Metal Roofing Sheets
- The standing seam uses a mechanical 360° lock, fastened to aluminum alloy clips, so there are no visible screws or penetration holes on the roof surface.
- The full-length panels work as a single layer, guiding rainwater away while protecting the building from leaks.
- No sealants are required, this avoids aging issues, reduces environmental impact, and extends the lifespan of the roof.
- The fixing clips feature an insulated layer that reduces cold bridging and enhances energy efficiency.
- The layered system provides insulation while also reducing noise, meeting important performance needs in modern buildings.
- Metal roofing sheets are commonly used in large venues and industrial facilities, with roof bases made from either concrete or steel.
- Roof panel
- Air barrier
- Aluminum alloy clamp
- Hat type purlin
- Rock wool insulation layer
- Breathable membrane
- Liner sheet
Specifications
| Model | YX65-300 |
| Effective cover width | 300mm/328mm/400mm/428mm/500mm/600 mm |
| Length | 1m-12m (customizable) |
| Thickness | 0.4mm-10mm |
| Material | Galvanized steel sheet, galvalume steel sheet, titanium zinc sheet, Al-Mg-Mn alloy sheet |
| Metal sheet suppliers | Baosteel, BlueScope, Yieh Phui, Wah Tung, Alliance Steel, etc. |
| Color | Standard color custom color |
| Surface coating | PE/HDP/PVDF, etc. |
| Lifespan | At least 50 years |
| Applications | Architectural roofing sheets |
| Remarks | 1. Professional installation guidance is available to ensure proper assembly 2. Other sizes or customized designs can be provided upon request |
Features
- The standing seam design creates a clean surface with no joints or screw holes, giving the roof a smooth finish while also improving waterproofing and fire resistance.
- Panels can be installed on slopes as low as 1.5°, and they can be curved into inner or outer arcs, making it easier to achieve distinctive roof shapes and smooth architectural lines.
- The high-standing seams allow for quick installation with minimal material waste, improving efficiency on-site and helping reduce overall costs.
- Made from high-quality aluminum-magnesium-manganese alloy, the panels offer strong corrosion resistance and require little to no maintenance over their lifespan.
