Concealed Fix Roofing Sheets for BIPV System
YX45-320-960

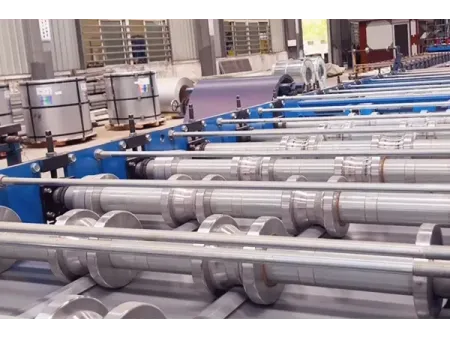

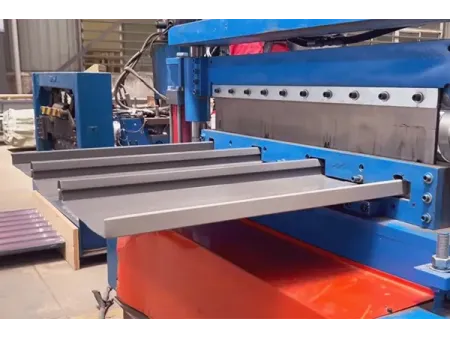

Roll-formed metal roof sheeting designed for the direct mounting of solar panels without using rails
- Effective width: 960mm/760mm
- Overall width of sheet: 1200mm/1000mm
- Length: 1m-12m (customizable)
- Thickness: 0.4mm-1.0mm
- Material: Galvanized steel sheet, galvalume steel sheet, aluminum alloy sheet (customizable strength)
Patented concealed-fix roofing sheets are designed for photovoltaic projects, offering durability and efficient solar integration. Each panel connects through a 360° interlocking seam within the concealed-fix system, providing strong resistance to wind and water. Solar modules can be mounted directly with clips, without drilling or extra rails. This design protects the roof surface, speeds up installation, and reduces both material use and labor costs, making it a practical choice for large-scale solar projects.
These concealed-fix roofing sheets are suitable for both industrial and residential roofs. They are widely used in public buildings such as schools, hospitals, shopping centers, and community housing. They are also a practical solution for roof renovations, including old factories and the upgrading of existing buildings.
| Model | YX45-320-960 |
| Effective cover width | 960mm/760mm |
| Overall width of sheet | 1200mm/1000mm |
| Length | 1m-12m (customizable) |
| Thickness | 0.4mm-1.0mm |
| Material | Galvanized steel sheet,galvalume steel sheet,aluminum alloy sheet (customizable strength) |
| Metal sheet suppliers | Baosteel,BlueScope,Yieh Phui,Wah Tung,Alliance Steel,etc. |
| Color | Standard color custom color |
| Surface coating | PE/HDP/PVDF,etc. |
| Lifespan | At least 30 years |
| Applications | Architectural roof and wall cladding |
| Remarks | 1. Installation support is available from our technical team to ensure proper setup 2. All necessary accessories for integrating solar panels with the roofing system are included 3. Customized options are also available to match different project requirements |
- The panels are secured both to the purlins and through their concealed seam, which gives the roof a double layer of protection. This design makes it highly resistant to strong winds and reliable even in regions that experience typhoons.
- Solar modules can be locked in place with simple clips, so installers don’t need to worry about the size or type of panel being used, it all fits without limitations.
- Since there’s no need for aluminum rails, clamps, or adaptors, the system cuts down on extra materials and labor. As a result, the total investment is lower than with conventional solar roofing.
- Each roofing sheet has a wide profile, which means fewer pieces are needed and installation moves faster. For contractors, this improves efficiency on-site and keeps overall project costs under control.
- The surface has self-cleaning properties and strong resistance to weather and corrosion, so the panels stay in good condition for years while requiring very little maintenance.
