Altitude Test Chamber

Request a Quote

Website: http://testchamber-en.com/4-altitude-test-chamber.html

Environmental test chamber for simulating high altitude environments combined with temperature and humidity control for simultaneous environmental testing

Combining altitude simulation with precise temperature and humidity control, these chambers offer a way to recreate demanding environmental conditions in one space. They are used to study how products and materials react to pressure drops and climate extremes that can occur during transport, storage, or operation at high elevations.

Standard Configuration

2 cable ports (Ø200 mm), supplied with blank flange plates
Hour meter

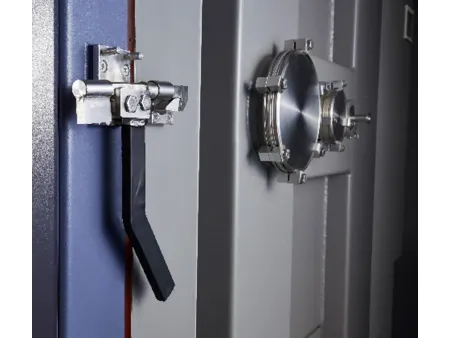

1 observation window (multi-layer heated insulated glass)
1 specimen power supply terminal
1 RS-485 communication port
1 RJ-45 Ethernet port
USB port

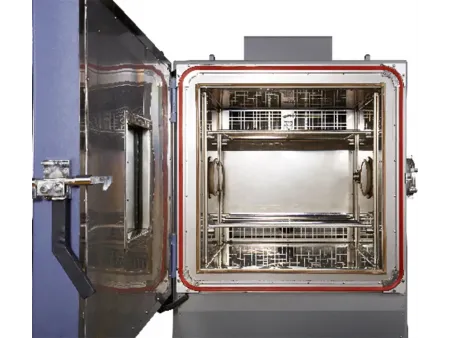

2 sample shelves
Manual ball valve (DN25)

Features

Simultaneously replicates changes in temperature, humidity, and air pressure to create complex test scenarios
Enables rapid decompression from 75.5 kPa down to 18.8 kPa in less than 15 seconds, including an explosive decompression mode for more rigorous safety testing

Common Test Applications

High-temperature exposure

Low-temperature performance checks

Constant temperature and humidity simulations

Alternating temperature cycles

Combined temperature and humidity testing

Moisture testing

Low-pressure evaluations and integrated condition tests

Technical Parameters

Model			VH0400	VH0700	VH1000	VH2400	VW/T0470W	VW/T0770W	VW/T1070W	VW/T2470W	VW/T5170W	VW/T8070W	VW/T12070W
Chamber volume (m³)			0.36	0.72	1.0	2.37	0.36	0.72	1.0	2.37	5.1	8.0	12.0
Performance	Temperature range		(Ambient temperature 20)℃～ 160℃				-70℃～ 160℃
	Pressure Range		Atmospheric pressure～0.5kPa (under the condition of dry test area)
	Humidity range		——				(25~95)%RH/(20~75℃),air pressure ≥54KPa,when there is no active humidity and heat load
	Temperature fluctuation		1.0℃ (under atmospheric pressure,no-load) (conform to GB/T5170.2-2008 standard)
	Temperature deviation		±2.0℃ (under atmospheric pressure,no-load)
	Temperature uniformity		2.0℃ (under atmospheric pressure,no-load)
	Humidity deviation (under atmospheric pressure,no-load)		——				±3.0%RH (>75%RH) ±5.0%RH (≤75%RH)
	Pressure deviation		±1kPa (pressure ≥20kPa) ±5% (perssure 2～20kPa) ±0.1kPa (pressure ≤2kPa)
	Temperature rise rate (under atmospheric pressure,no-load)		25℃ (ambient temperature)→ 160℃
			≤60min
	Temperature drop rate (under atmospheric pressure,no-load)		——				25℃→-65℃
			——				≤65min		≤70min	≤90min	≤80min		≤90min
	Pressure drop rate (no-load,dry test area)		Atmospheric pressure →1kPa
			≤25min		≤30min	≤45min	≤25min		≤30min	≤45 min
	Fast pressure drop (optional)		Within 15sec,from 75.5kPa to 18.8kPa
	Explosive decompression test function (optional)		Within 0.1sec,from 75.5kPa to 18.8kPa
Internal dimensions (mm)		W	600	800	1000	1300	600	800	1000	1300	1600	2000	2000
		H	750	900	1000	1300	750	900	1000	1300	2000	2000	2000
		D	800	1000	1000	1400	800	1000	1000	1400	1600	2000	3000
External dimensions (without protrusion) (mm)		W	1130	1290	1490	1790	1130	1290	1490	1790	2050	2450	2450
		H	2205	2350	2450	2750	2205	2350	2450	2750	3005	3005	3005
		D	2370	2510	2510	2910	2370	2510	2510	2910	4850	5250	6250
Power supply			380V (three phase four wire protective grounding wire)
Condensing method			Air-cooled				Water-cooled

Performance data measured with the chamber empty, under ambient conditions of 5 °C to 35 °C, relative humidity up to 85%, and cooling water temperature not exceeding 28 °C.

What industries typically use altitude test chambers?

Altitude test chambers are widely used across sectors such as electronics, automotive, aerospace, and pharmaceuticals. These chambers help evaluate how materials and components perform when exposed to combined environmental stresses like low air pressure, extreme temperatures, and controlled humidity. They are essential for applications requiring validation under high-altitude or transportation conditions.

How is an altitude test chamber different from a standard temperature and humidity chamber?

Unlike conventional temperature and humidity chambers, an altitude test chamber can also simulate reduced atmospheric pressure. This capability allows it to recreate high-altitude environments, or the low-pressure conditions encountered during air transport. Combining pressure, temperature, and humidity control in a single system provides more comprehensive testing for product reliability and safety.
