Xenon Test Chamber
Weathering test chamber used for climate aging test with xenon arc lamp
Xenon test chamber is an accelerated weathering tester by simulating true environmental conditions. It utilizes xenon arc lamp capable of simulating the full sunlight spectrum to replicate destructive light waves present in different environments. Using a long arc xenon lamp as the light source, it is designed to simulate and intensify weathering and accelerated aging tests, enabling rapid acquisition of near-atmospheric aging test results. By precisely controlling test conditions, this test chamber can simulate various climate conditions in the laboratory and perform repeated tests to validate the reliability of the results, making the xenon test chamber an effective tool for evaluating the weather resistance performance of materials.
Testing Type
Photoaging Test (Accelerated Aging Test)
Certificate & Standards
CE certification
Standards: GB/T16422-2, ASTMD529, ISO4892-2
- In the field of materials science, xenon test chamber is used to evaluate the weather resistance, heat resistance, and light stability of various materials.
- In the automotive industry, xenon test chamber is used to test the durability and appearance changes of automotive components, coatings, and interior materials.
- Ventilation cooling system: it is automatically controlled by a temperature controller to regulate the equipment temperature.
- Spraying system: it includes a water pump, time relay, and adjustable spraying cycle.
- BPT black panel thermometer: it uses wireless transmission technology to improve the control accuracy.
- Fiber optic transmission measuring lamp radiation intensity: this avoids the measurement errors caused by temperature.
- Xenon lamp water-cooling system: a chiller unit is used, and the water can be recycled.

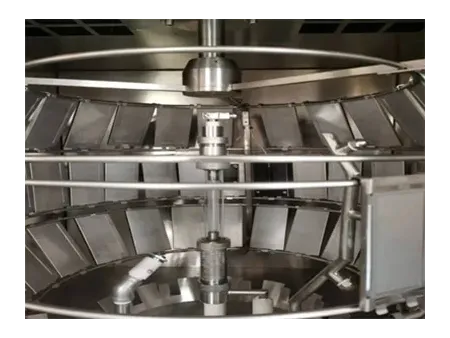

- Test rack: it rotates around the light source at a speed of 1r/min. Installed with a BPT black panel thermometer or BST black standard thermometer.
- Timing device: controls the equipment time and automatically shuts down the equipment.
- Protection device: adopts a circuit linked to the cooling water to ensure the xenon arc lamp operates normally.
- Xenon test chamber supports various simulated environmental conditions and accelerated exposure testing.
- Determine the changes in materials exposed to sunlight under different environmental conditions to evaluate the durability changes after material composition changes, etc.
- As a weathering and accelerated aging tester, this xenon test chamber allows for rapid obtaining of the results of near-atmospheric aging tests.
- Xenon test chamber utilizes xenon arc lamps capable of simulating the full spectrum solar radiation to replicate destructive light waves present in different environmental conditions.
- The interior chamber is made of advanced stainless steel sanding plate, and the exterior of chamber is made of SUS304# stainless steel with an oil-finished surface.
- An imported intelligent temperature and humidity controller is used for temperature control, featuring PID adjustment, quick self-tuning, and the ability to set various parameters. The temperature is displayed directly in digits for easy reading.
- Features a filter light observation window, harmful gas exhaust port, bimetal black panel thermometer, and multiple safety protection devices.
| Internal Dimensions | 950×950×950mm (customizable) |
| Temperature Range | RT 10°C~70°C Black panel temperature: 55~95°C |
| Humidity Range | Light: (50±5)% Dark: 70~95% |
| Temperature Deviation | ±2°C |
| Lamp Power | 3.0kW (air-cooled full solar spectrum long arc xenon lamp) 6.0kW (water-cooled full solar spectrum long arc xenon lamp) |
| Irradiation Strength | (350-850nm) 550W/m²~1100 W/m² (optional irradiance control 340nm, 420nm, or 300~400nm) |
| Sample Holder Rotating Speed | 21r/min (stepless speed regulation) |
| Light/Rain Cycle | 60min/12min,102min/18min (optional) |
| Water Pressure | 78~127kpa |
| Filter | 255nm, below 0% 400~800nm, above 90% |
| Power Supply | AC 380V/50Hz Total installation power S11kW Effective radiation: 063m² |
Chamber Structure and Components
Stainless steel sample rack is custom-made for users.
Control System
Temperature Controller: Intelligent PID Controller (Touch Screen Controller).
Humidification Method
Electric steam humidification, controlled by non-contact solid-state relays regulated by PID.
Water Supply Method
Bottom water tank is equipped for water supply with automatic water level control (stainless steel humidifier, water level gauge, water tank).
